Product Description

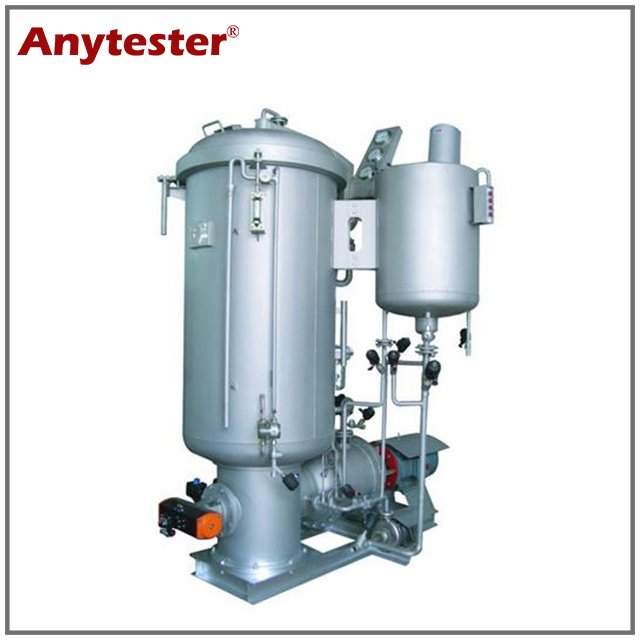

HY0241A Series HTHP Package Dyeing Machine is used for dyeing and bleaching all kinds of bobbin yarn with the material of cotton, polyester, nylon, wool, hemp and blended yarns, etc.
Features
1.It is widely used for various sample with different configurations
2.The main parts are imported from well-known supplier, such as electrical components from Siemens and Omron, electromagnetic value from Taiwan AirTAC, computer from HG computer, inverter from Senlan etc.
3.Stainless steel construction with bead blasting surface treatment to make the machine can make the machine can stand high temperature and high pressure
4.Inner surface of cylinder adopts acid etching surface treatment to protect cylinder against dyes.
5.The machine adopt computer control heating, cooling and constant temperature and make the dyeing process programmable
6.This machine are equipped with automatic water supplying system to save labor.
7.Electrical cabinet adopt stainless steel cabinet
8.Dosing/discharge call signal & Sampling call signal.
9.Savings in power and steam consumption by 15-20%
10.High efficiency heat exchanger
11.Water level indicator
12.Injection pipe and support device are structural durability
13.Yarn pole transmission with high efficiency
14.Paint bucket with stirring, heating, reflux, cleaning, feeding device
15.Tools assist to entry and outlet of yarn and cleaning nozzle pipes
16.Flow adjust set.
Technical Specification
HY0241A-25 | HY0241A-50 | HY0241A-100 | |
Capacity | 25kg | 50kg | 100kg |
Diameter of main tank | Φ430 | Φ600 | Φ750 |
Designed Pressure | 0.44Mpa | ||
Power | 7.5KW | 11 KW | 15 KW |
Standard Configuration
No. | Item | Quantity |
1. | Main machine | 1set |
2. | Quality certificate | 1pc |
3. | User manual | 1pc |
4. | Packing list | 1pc |
