HY0260 Atmospheric Plasma Coating System

HY0260 Atmospheric plasma coating system Atmospheric Plasma Coating is one kind of surface hardening and surface modification technology. It can make the substrate surface with wear resistance, corrosion resistance, high temperature oxidation, electrical insulation, heat insulation, radiation, wear and sealing performance.
  • HY0260

  • Anytester

Availability:

Application

HY0260 Atmospheric plasma coating system Atmospheric Plasma Coating is one kind of surface hardening and surface modification technology. It can make the substrate surface with wear resistance, corrosion resistance, high temperature oxidation, electrical insulation, heat insulation, radiation, wear and sealing performance.

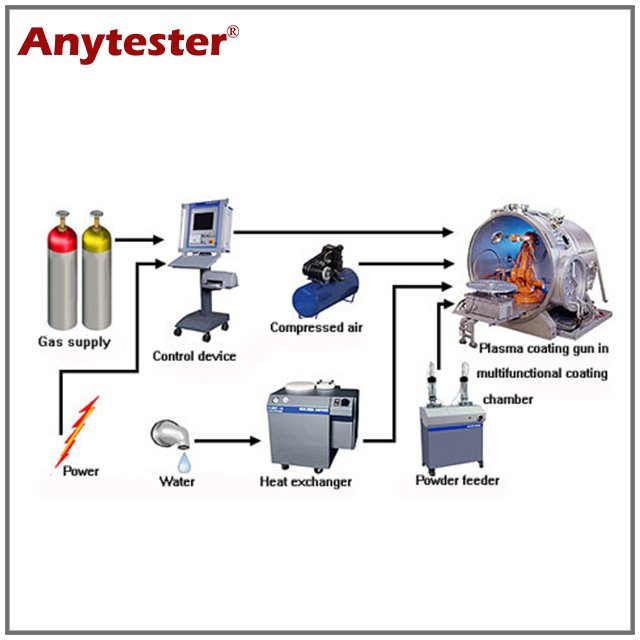

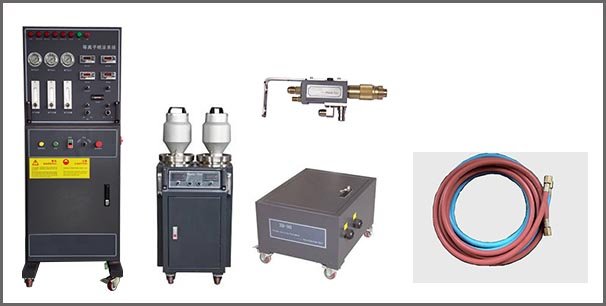

It usually consists of seven parts: Plasma power supply, plasma control cabinet, powder feeder, water and electricity mixed cabinet, plasma coating gun, heat exchanger/cooling system, plasma water cables.




Principle

Plasma coating technology is using a plasma arc driven by a direct current as a heat source, make the ceramic, alloy, metal and other materials are heated to the molten or semi-molten state, and jet/spray to the surface of the preconditioned workpiece to form a strong attached solid surface layer.


Technical Specification

1. Plasma inverter power supply:

Provide DC power for the plasma coating gun, Using IGBT modules, intelligent module control, soft-starting arc, small size, high efficiency, low power consumption, good heat dissipation can work continuously low failure rate is the best plasma power supply.

Item

Parameter

Input power

3P AC380V, 50Hz/60Hz

Output power

80KW

No-load maximum voltage

DC125V

Operating current

100-800A

Operating voltage

30-85V

Power characteristics

Constant current source

Current accuracy

<1%

Load factor

90%

Dimension

650 × 430 × 1600mm

Weight

200Kg

2. Control cabinet

It can automatically control the spraying process, ignition, soft-start, soft-off; voltage and current adjustable when work; and with water temperature, voltage, water pressure automatic protection function; for water, electricity, gas, powder Regulation and control. It can monitor the entire system, the user can directly understand the system from the control cabinet when the system parameters, such as voltage and current size can be read directly, when the system of electricity and gas have the same requirements, the system will Automatic alarm to remind the user to do the appropriate adjustment. The temperature of the plasma arc is adjusted by adjusting the current and voltage on the panel. Users can also control the main gas through the control panel, the second gas to control the gas flow and gas ratio to change the length of the plasma arc and the flame velocity of the final powder particles to change the speed to ensure the accuracy of repeated experiments, the other control cabinet (Power users can set their own), spraying (power users can set their own), so that customers spray in a long time, need to have a metal powder rendering, it can be (3KW or so) Through a knob to automatically switch parameters, simple, convenient and applicable.

Item

Parameter

Input voltage

2P AC220V 50Hz

Input power

500W

Control type

Siemens PLC + relay

Main gas type and pressure

Nitrogen, argon (0.6-0.8MPa)

Secondary gas type and pressure

Hydrogen (0.4MPa)

Nitrogen pressure

0.6MPa

Gas use

Argon, argon + hydrogen nitrogen, nitrogen + hydrogen



MFC Repeatability

± 0.2% F.S

MFC Accuracy

± 1% F.S

Output voltage accuracy

± 0.5V

Output current accuracy

± 0.5A

3. Powder feeder

It for storing the powder and delivering the powder to the spray gun as required. The main gas of the spray gun is used as a powder feeding gas, and the powder is transported to the outlet of the powder feeder through the rotation of the powder feeding scraper, and the powder is separated from the powder feeding barrel through the gas pressure to enter the spray gun. Adjust the potentiometer on the control panel to adjust the feed speed.

Item

Parameter

Feeding way

Scraper pressure type

Powder feeding barrel capacity

6.0L

Feeding gas

argon or nitrogen

Feeding gas pressure

0.5-0.6MPa

Feeding speed

0 ~ 180g / min

Feeding accuracy

± 1%

Feeding gas flow

400-800L / h

Dimension

500 × 460 × 1400mm

Weight

50kg

4. Water and electricity mixed cabinet

It mixed the water and electricity and sent to the spray gun, providing the high-frequency pulse voltage for gun arc start and detection of water temperature and cooling water spray pressure, lightweight and flexible, easy to drag. Arc performance well, reduces the momentary impact of the nozzle arc.

Item

Parameter

Input voltage

AC220V, 50Hz / 60Hz

Rated power

250W

Control mode

External control

Output high-frequency voltage

AC2500 ~ 3000

Dimension

610×480×340mm

Weight

30kg

5. Plasma coating gun

It for the production of plasma coating operations, the working power can up to 50KW, so it can use high powder delivery power, shorten the spraying time and reduce processing costs. The standard architecture allows for fast hardware replacement.

Item

Parameter

Rated power

50kW

Rated current

100-800A

Operating voltage

30-75V

Dimension

80*75*190mm

Weight

1.5Kg

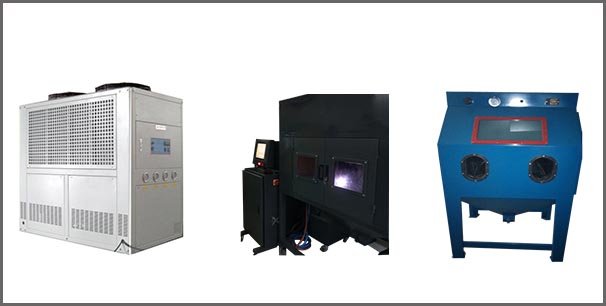

 6. Heat exchanger/cooling system

Dual compressor drive to reduce the size of the machine, at the same time the coating guns get better cooling, then extend the life of the nozzle.

Item

Parameter

Circulating water tank capacity

250Kg

Cooling capacity

35KW

Operating voltage

30-75V

Water temperature fluctuation

5

Water output pressure

0-1.3Mpa adjustable

Output water flow

6 m3 / h

Fan power

85W × 2

Input power

3P AC380V 50HZ/60HZ   13.5KW

Dimension

1330×780×1310(mm)

Weight

450Kg


7. Plasma water & electric cables.

The use of Italian imports PVC pipe, burst pressure high to 6 Mpa, working pressure 2Mpa, the maximum DC current 1000A, rated current high to 650A,. It can long-term continuously working when the working temperature is below 55 ° C

8. Multi-function coating chamber

It is made of cold plate welding, including box door, observation window dust removal system, lighting system and dust removal system. It with a small, easy to operate, both noise, dust and radiation protection, so particularly suitable for spray coating operation and sample preparation.

Item

Parameter

Maximum workpiece width

400mm

Maximum workpiece length

600mm

Dust filter area

>50m2

Dusting air volume

>2500m3 / h

Filtration density

5mm

Clearing jet pressure

0.4-0.6Mpa

Operating temperature

<100

Compressed air consumption

0.1-0.3m³ / min

Two-dimensional gun   holding device

Minimum setting unit

1mm (any axis)

Minimum mobile unit

1mm (arbitrary axis)

Fast-moving speed

100mm / s (arbitrary axis)

Maximum programming size

500*300 mm;

Programming reference point

free to set

Coating times

can be free set

Maximum turning diameter

¢ 200mm

Workpiece clamp max load

30Kg

Power

3P AC380V 50HZ/60HZ

Dimension

1.3*1*1.6m

9. Box-type sandblasting machine

Item

Parameter

Work chamber size

900mm´800mm´750mm

Amount of dust removal

8.5m3 / min

dust removal motor

220V, 50HZ, 250W.

Air source

5-7 bar (kg / cm2)

Input power

220V 50Hz

Dimension

900mm´1100mm´1750mm

Weight

450Kg


10. Air compressor

Item

Parameter

Volume flow

3.4m3 / min

Maximum working pressure

0.8 MPa

Motor power

22 kW (380 V / 3/50 Hz)

Gas tank volume

1 m3

Frozen dry machine

4m3/min

Water output pressure

0-1.3Mpa adjustable

Output water flow

6 m3 / h

Fan power

85W × 2

Input power

3P AC380V 50HZ/60HZ   13.5KW

Dimension

900mm´1100mm´1750mm

Weight

450Kg




















Standard Configuration

No.

Item

Quantity

1.

Plasma   power supply

1set

2.

plasma   control cabinet

1set

3.

powder   feeder

1set

4.

water   and electricity mixed cabinet

1set

5.

plasma   coating gun

1set

6.

heat   exchanger/cooling system

1set

7.

plasma   water cables

1set

8.

Packing list

1pc

9.

Quality certificate

1pc

10.

User manual

1pc


Optional Configuration

No.

Item

1

Multi-function coating chamber

2

Box-type sandblasting machine

3

Air compressor
