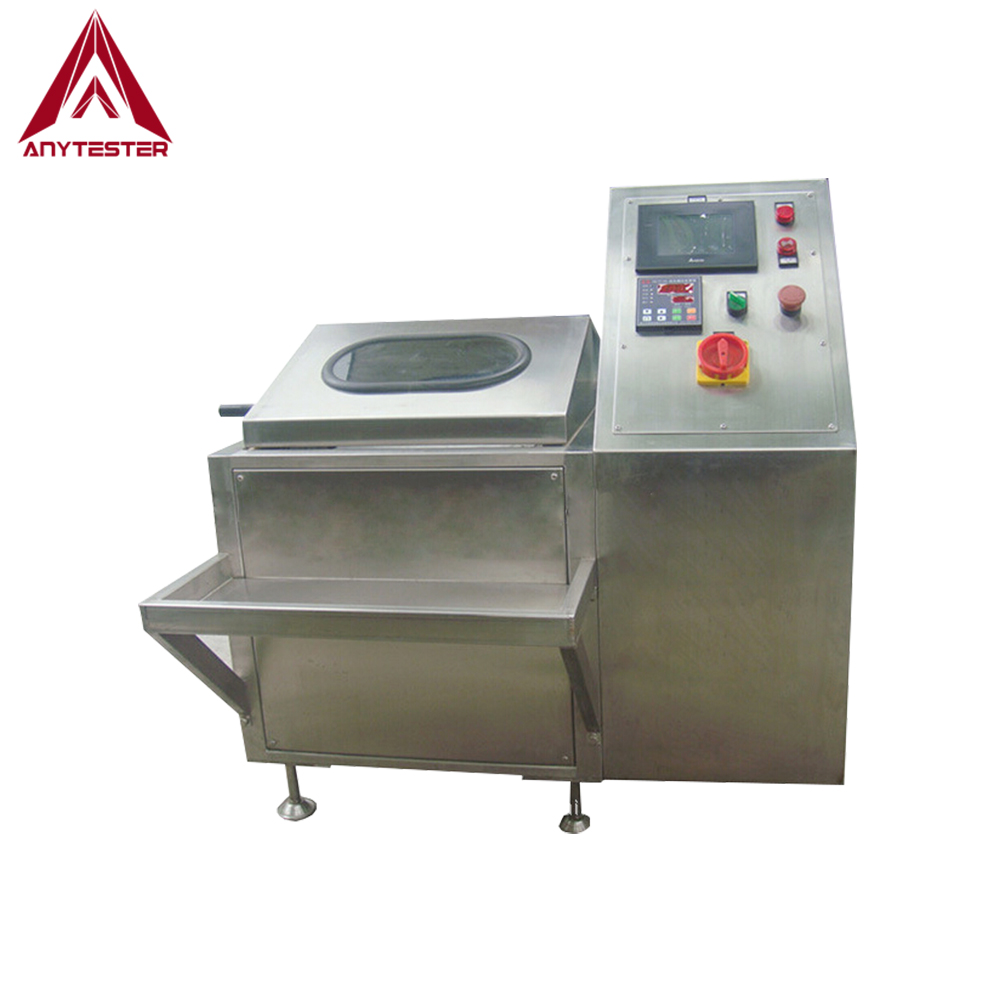

AT276 Laboratory Jig Dyeing Machine

AT276 Laboratory Jig Dyeing Machine is special designed for lab normal temperature jig dyeing. It’s applicable to retreatment, bleaching and dyeing of cotton, flax, chemical fiber blending and nylon interweaving.
  • AT276

  • Anytester

Availability:

Product Description

AT276 Laboratory Jig Dyeing Machine is special designed for lab normal temperature jig dyeing. It’s applicable to retreatment, bleaching and dyeing of cotton, flax, chemical fiber blending and nylon interweaving. This jig dyeing machine is an ideal solution to cut down the waste of time and invest due to bad dyeing technology. It’s also helping you to develop new dyeing formula.

Structure

001

Features

The main body adopts stainless steel material, nice appearance, easy to operate.

★Controller: industrial automation components, integrated optimization of process performance, integrated automatic control system with excellent high reliability.

★ Operation panel: nice, convenient, simple and intuitional.

★Constant cloth speed guarantee: adopts the two-roller mechanical constant-speed technology to basically guarantee the consistent speed of the cloth.

★Temperature control: digital display automatic temperature control system, accurately measure and control the temperature of dye liquid in the dyeing tank.

★Tension control: adopts two separate synchronous rollers control system, manual preset mechanical synchronization, ensures the system keeping a constant tension.

★ Motor: 2 sets of 180w precision control gear motor and 400w frequency converter control systems.

★ Dyeing tank: imported SUS304 stainless steel, more durable; trapezoidal structure, small liquid dosage.

★ Dye liquid circulation mode: automatic stirring, keep the dye liquid more even.

★ Winding cycles: automatically record, can be preset and measured & controlled.

★ Direction of rotation: automatically rotate backward and forward according to the cloth length and number of cycles.


Technical Specification

Model

AT276

Operation mode

Touch screen operation

Heating Method

electric heating

(steam heating optional)

Rolling diameter

Φ57~200mm

Rolling width

500mm

Speed range

0~10m/min±0.01m/min, settable

Temperature range

R.T ~ 98℃±2

Temperature accuracy

±2

Heating Power

3kw

Liquid dosage

Approx. 1.8L

Machine power

Approx. 3kw

Power supply

3 Phase 220/380V, 50Hz

Dimensions

910×720×1150mm

Weight

Approx. 180kg
