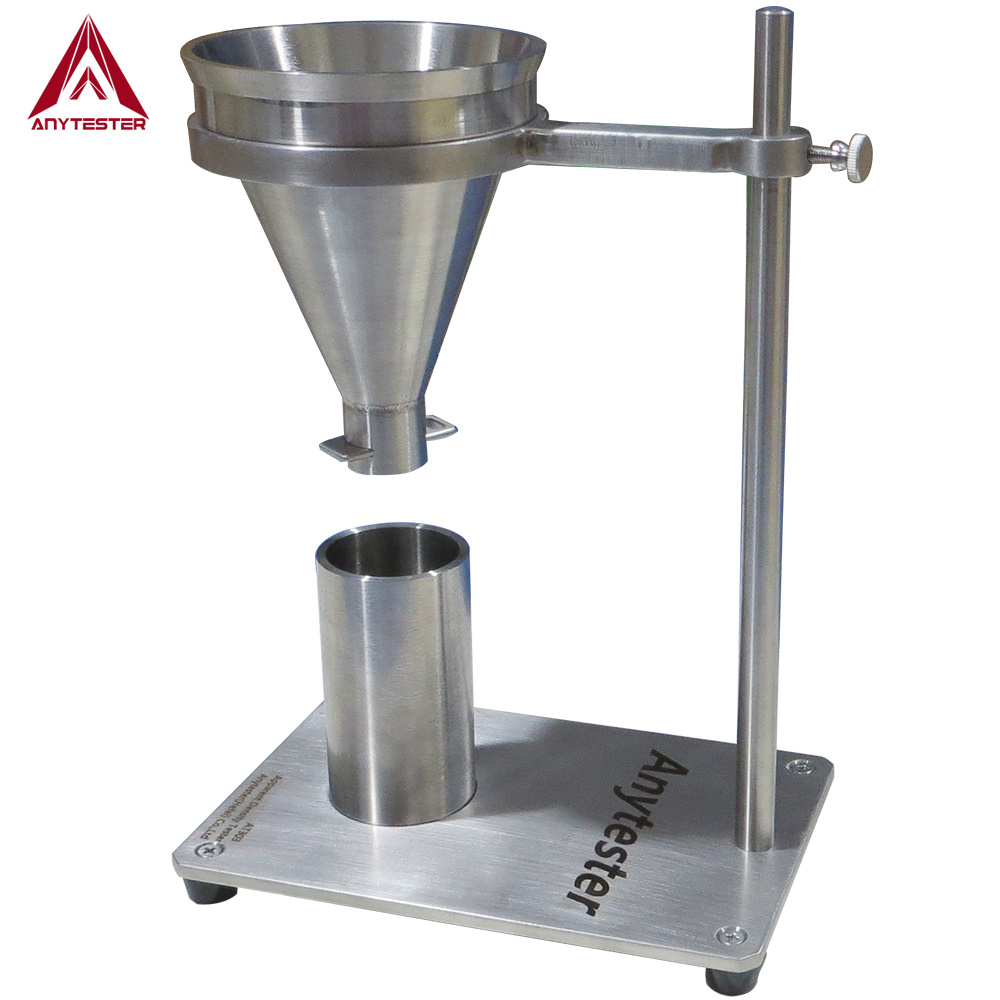

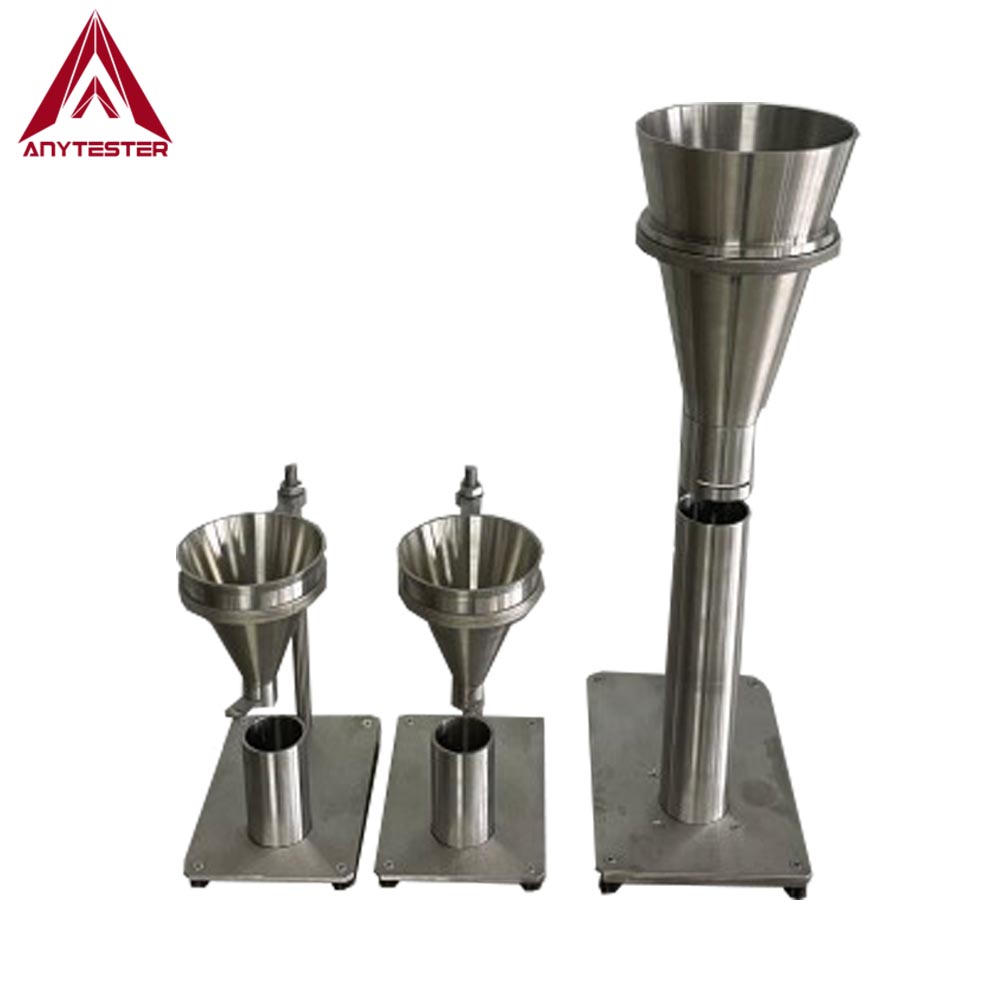

AT303 ASTM Series Apparent Density Tester

AT303 ASTM Series Apparent Density Tester is used to measure of apparent density, bulk factor, and where applicable, the pourability of plastic materials such as molding powders. The apparatus consists of a measuring cup and a funnel. These series testers conform to ASTM D1895.

  • AT303

  • Anytester

Availability:
Inquire Add to Basket

Product Description

AT303 ASTM Series Apparent Density Tester is used to measure of apparent density, bulk factor, and where applicable, the pourability of plastic materials such as molding powders.  The apparatus consists of a measuring cup and a funnel. These series testers conform to ASTM D1895.


Standards

ASTM D1895.




Technical Specification

Model

AT303E

AT303F

AT303G

AT303H

Test Method

Method A

Method B

Method C

ISO method R60

Cup

Measuring volume

100±0.5 cm3

400±0.5 cm3

10003±0.5 cm

53.8±0.5cm

Inner Dia.

39.9mm

/

/

45±5mm

Height

79.8mm

240±10mm

/

79.8mm

Sampling quantity

110~120ml

/

/

60g

Funnel

Dia. of lower mouth

9.5

25.4mm

/

33mm

Height

114mm

230mm

/

115mm

Distance between cap can funnel

38mm

/

20~30mm
