AT466
Anytester
Availability: | |
---|---|
Product Description

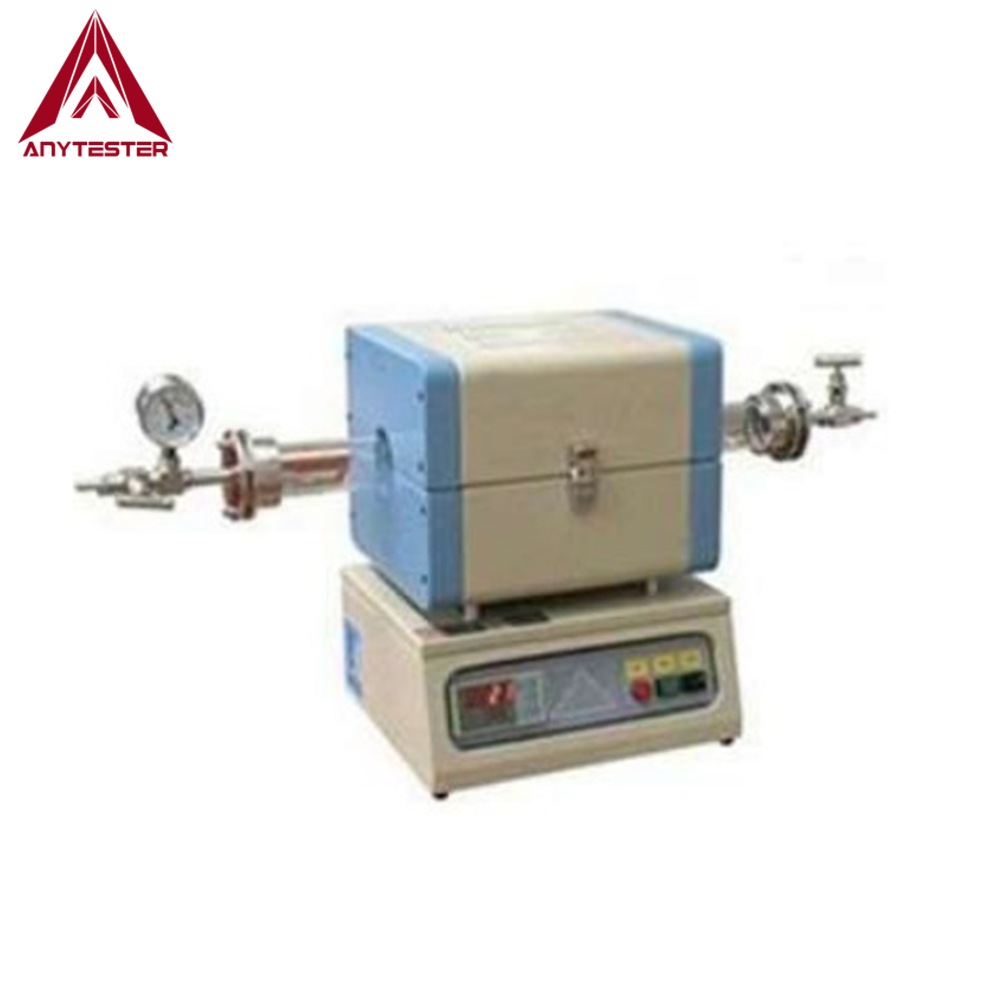

AT466 Carbon Black Content Tester is used to determine the carbon black content of polyolefin compositions. The principle is: pyrolysis of a specified quantity of mixture at a specified temperature in a stream of nitrogen for a certain time and calcination at a specified temperature; Calculation of the carbon black content from the difference in mass before and after calcination and pyrolysis.
Standards
ASTM D1603 | ISO 6964 | GB/T 2951.41, 13021 |
JTG E50 T1165 |
Note: For more standards, please contact us
Features
★ Beautiful appearance, LED display, easy to operate

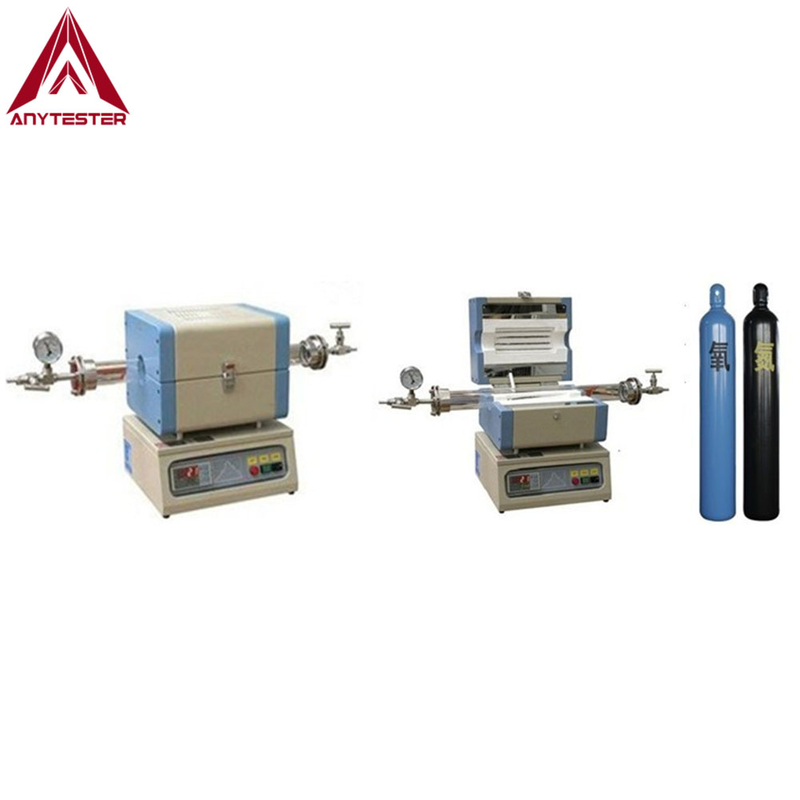

★ Openable furnace door, easy to place specimen
★ High accuracy of temperature, large temperature range, excellent temperature uniformity in the chamber
★ Can set keeping time for constant temperature, high accuracy of keeping constant temperature
★ Can set 30 groups of temperature programs, can set heating temperature, heating speed, keeping time for constant temperature for each program
★ Display multiple parameters such as groups, set temperature, current temperature, heating up time or keeping time for constant temperature
★ Can check set parameters while the furnace working
Technical Specification
Model | AT466 |
Quartz tube size | ¢25×450mm or ¢50×450mm |
Chamber size | ¢80×200mm |
Heating element | Resistance wire |
Length of heating zone | 200mm |
Length of constant temperature zone | 100mm |
Temperature range | ≤1100℃ |
Max. temperature | 1200℃ |
Temperature control mode | Intelligent 30 groups programmable |
Accuracy of constant temperature | ±1℃ |
Power supply | 220V, 50Hz, 1.2kw |
Dimensions | 340×300×390mm |
Weight | 18kg |
