AT393B Lab Injection Molding Machine

AT393B Lab injection molding machine is use to make the thermoplastic or thermosetting plastics into various shapes of plastic products by use of different plastic molding die. Injection molding machine can be heating plastic, and applying a high pressure to the molten plastic, inject the molten plastic to full of the mold cavity.
  • AT393B

  • Anytester

Availability:

Features

★ Adopt color touch screen, simple operation

★ The mechanical and electronic double protection device, to ensure safety

★ High energy saves

★ Quiet operation, molding stability

  ★ This machine has the advantages of small volume, strong mobility, making suitable for classroom teaching and small sample


★ Excellent corrosion resistant stainless steel, beautiful appearance

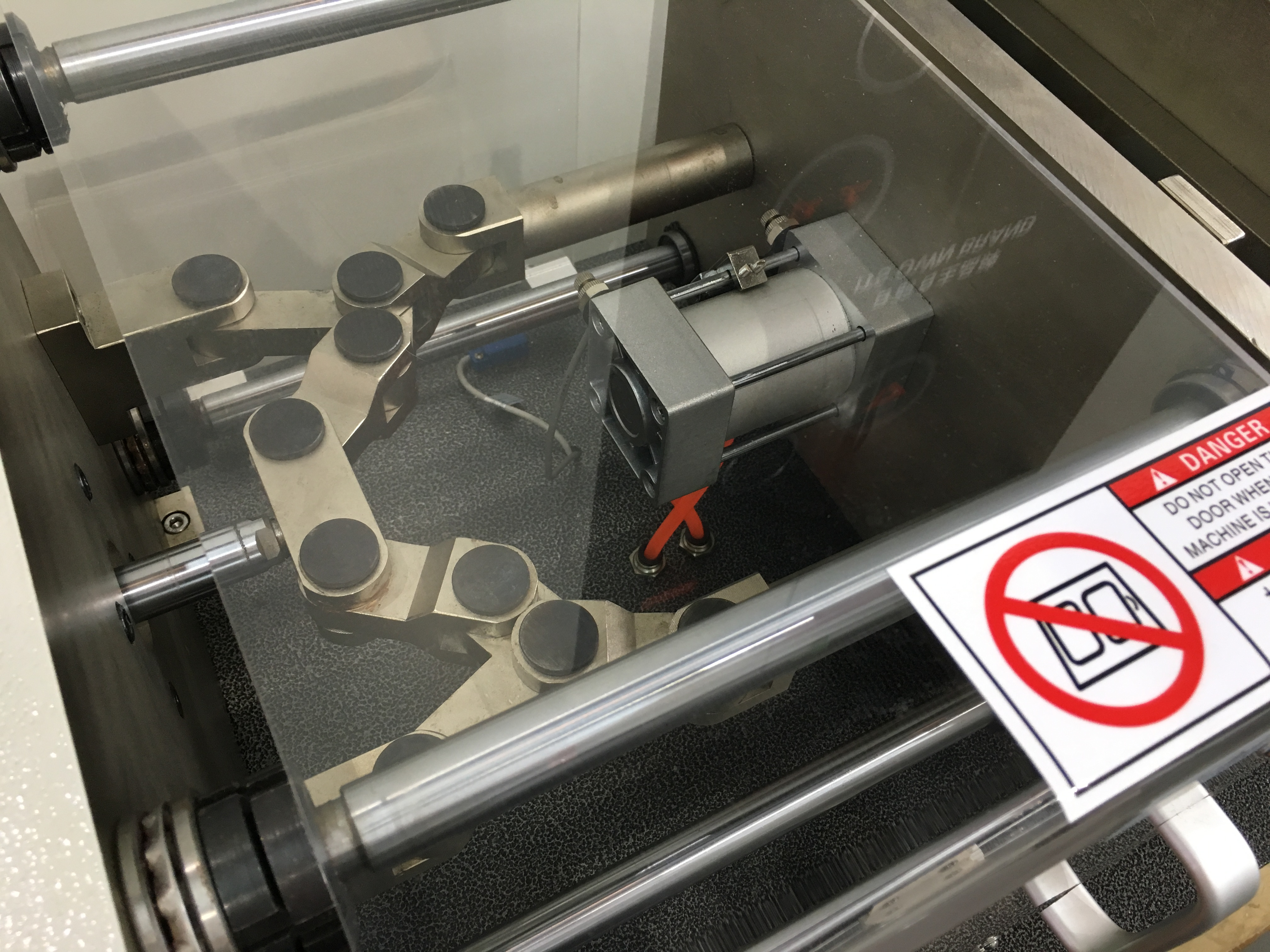

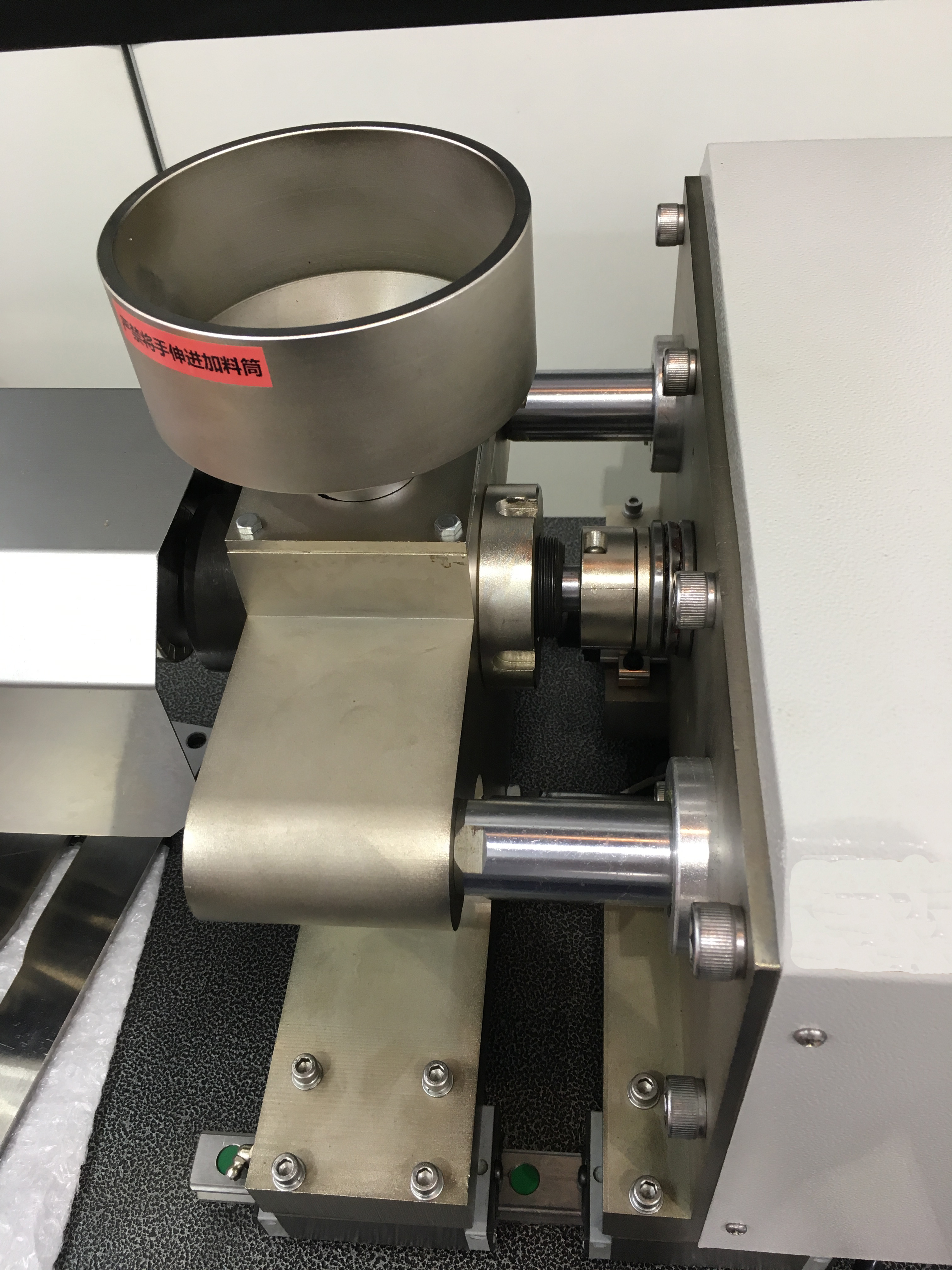

★ The products include mold parts, sol injection body, heating system, control system and charging device.

★ Simple structure, convenient operation, no noise and no pollution

★ With 220V voltage, can used in any field, from the electricity industry limited.



Technical Specification

Model

AT393B

Feeding torque

25.4N·M

Pressure

0.8Mpa

Injection stroke

0-85mm

Feeding speed

1-130rpm

Mold opening stroke

82mm

Injection force

1800kg

Injection capacity

45g

Maximum temperature

Zone 1/2 360℃; Zone3 180℃

Control accuracy

0.5℃

Screw diameter

25mm

Tiebar distance

210*196mm

Dimension

58*85*170cm

Net Weight

380kg

Power supply

220V 50HZ 2.2KW
