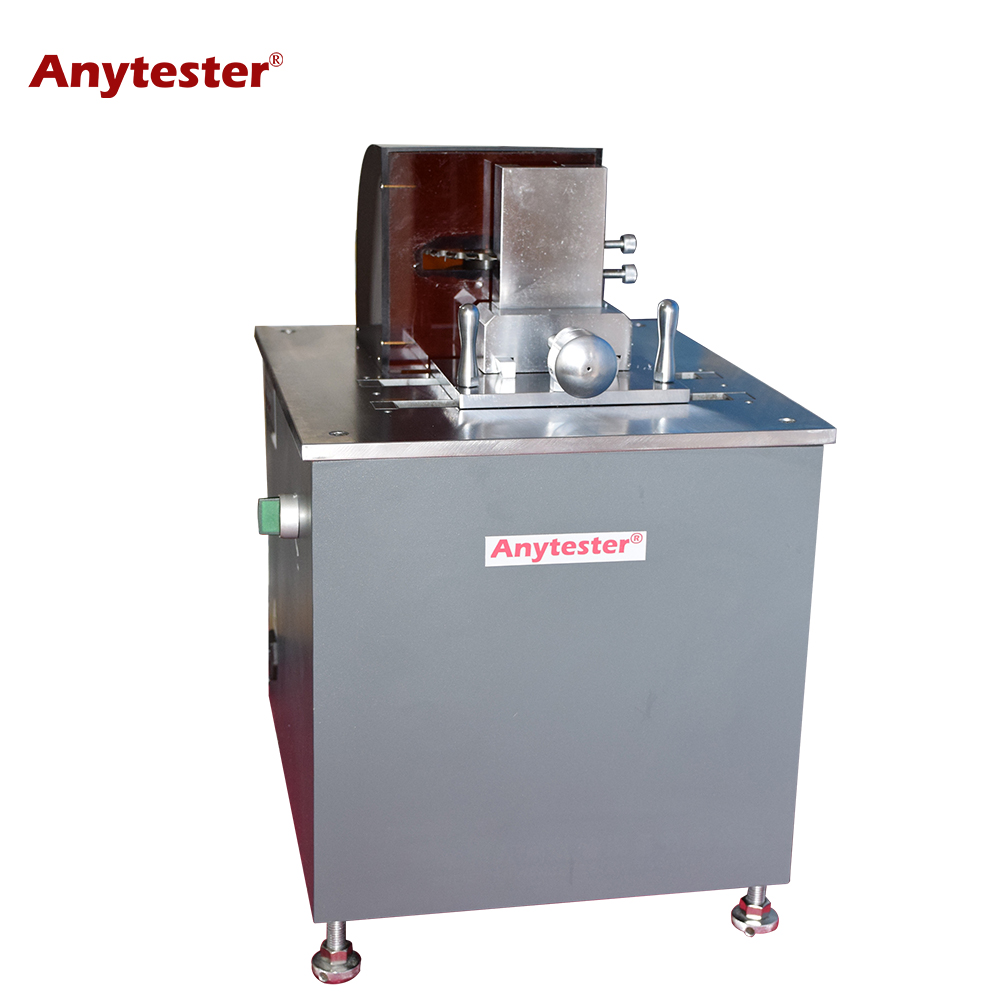

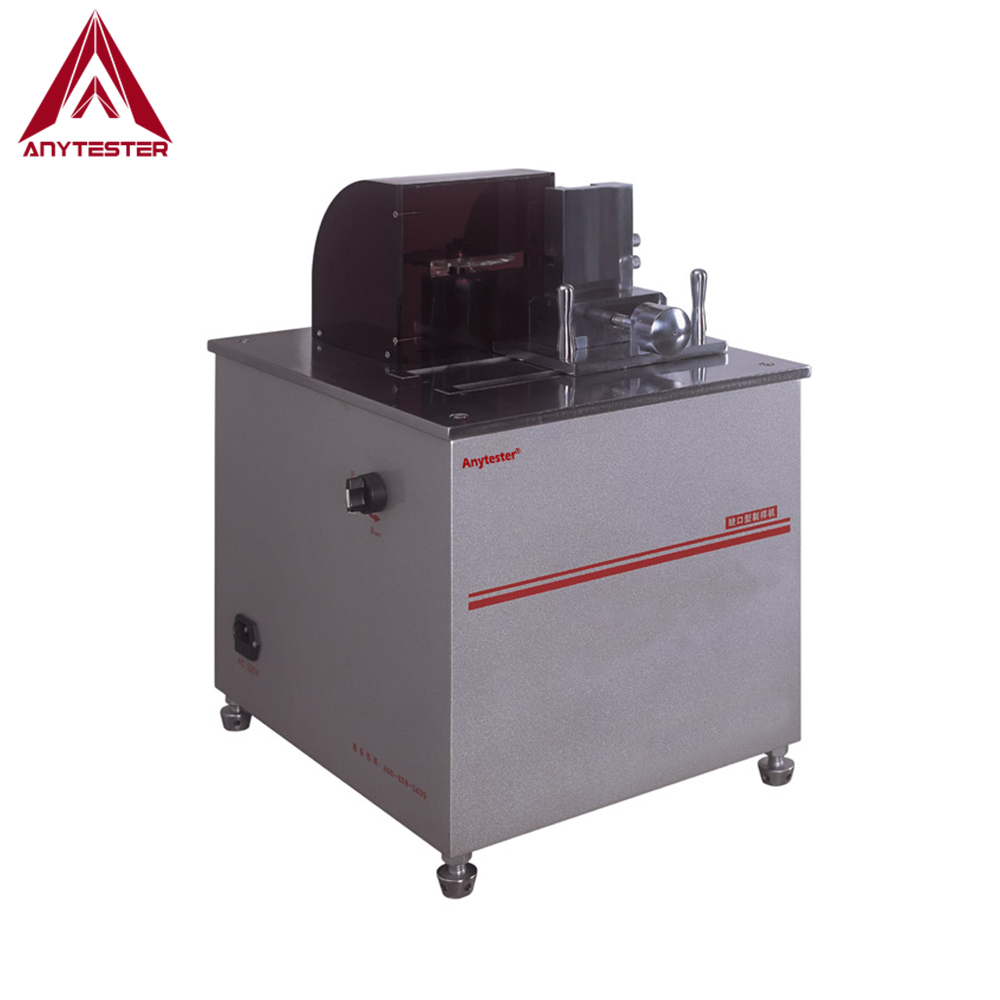

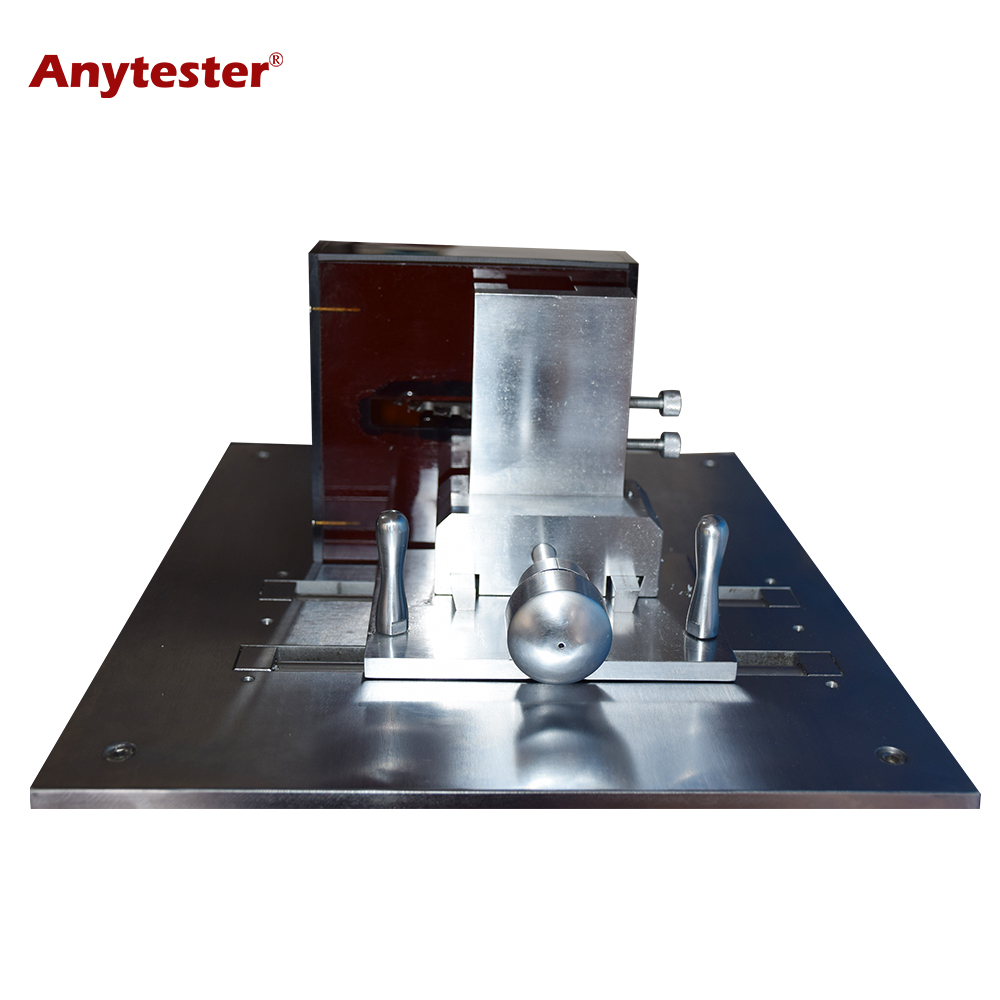

AT403 Automatic Notch Making Machine

AT403 Automatic Notch Making Machine is used for specimen preparation for impact testing of plastics and related materials.

  • AT403

  • Anytester

Availability:
Inquire Add to Basket

Product Description

AT403 Automatic Notch Making Machine is used for specimen preparation for impact testing of plastics and related materials.


Standards

ASTM D256

ISO 179, 180

GB/T 1043, 1843

JB/T 8761




Feature

★ Advanced model with higher cutting speed.

★ Special design cut knife with more tooth which can make the notcher more smooth.

★ Stainless steel desktop make the machine with good appearance and durable.

★ Desktop design make the machine small and save space

★ It can make 5 samples at one time and easy to operate

★ Two cutting tooth can be selectable


Technical Specification

Model

AT403

Operation mode

Automatic

Maximum specimen thickness

25mm

Motor speed

1440r//min

Cutter types

A: 45°±1° R0.25

B: 45°±1° R1.0

Notch types

Type A, type B

Power supply

AC220V, 50Hz

Dimensions

316*366*450mm

Weight

30kg
