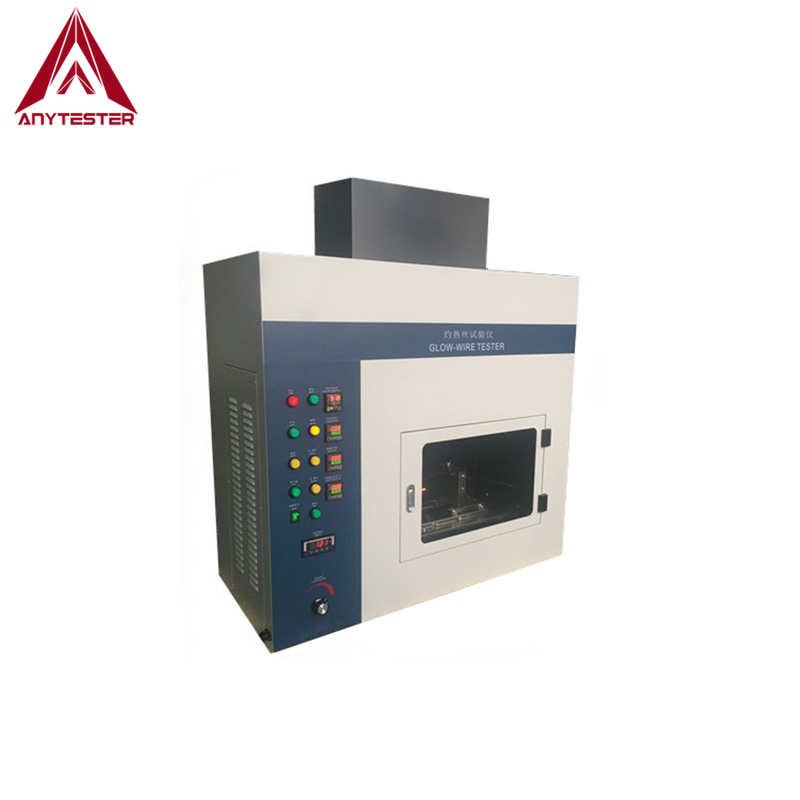

AT802 Glow Wire Tester

AT802 Glow Wire Tester uses the specified material Ni/Cr(80/120) and shape wire to testing temperature (550~960) by large current in 1min, use specified pressure (1.0N) vertical iron the specimen 30s. Then observe if the specimen is ignited or burning time to determine the fire risk of electric product, insulation material etc.



  • AT802

  • Anytester

Availability:

Product Description

AT802 Glow Wire Tester uses the specified material Ni/Cr(80/120) and shape wire to testing temperature (550℃~960℃) by large current in 1min, use specified pressure (1.0N) vertical iron the specimen 30s. Then observe if the specimen is ignited or burning time to determine the fire risk of electric product, insulation material etc.


Features

★ Using digital instrument control system, import control components;

★ Fixture made of high quality stainless steel, corrosion-resistant, no rust;

★ One-button time device, to facilitate the use of equipment, simple operation;

★ Advanced temperature control and temperature measurement system, so that the test more accurate, the results more reliable;

★ Tempered glass observation window, the entire test process can be observed


Standars

UL 746A

DIN 695

IEC60695.2~13, 60884-1, 829

GB/T 5169.10~13, 4706.1, 2099.1




Technical Specification

Model

AT802

Glow wire

4mm ± 0.04mm Ni/Cr(80/120)

Glow wire temp.

500 ℃ ~ 1000 ℃

Test pressure

1.0N±0.1N

Max iron depth

7mm ± 0.5mm

Sample moving speed

10mm /s ~ 25mm /s

Test time

1s ~ 999.9s

Test space

0.5m3

Background illumination

≤ 20Lx

Power supply

AC220V, 50Hz


Standard Configuration

Standard Configuration:

No.

Item

Quantity

1.

Main machine

1set

2.

U-type hot wire head

1set

3.

Thermocouple (0.5mm)

1set

4.

Plate

1pc

5.

Pine board

1pc

6.

Silk paper

5pcs

7.

Silver foil

1pc

8.

Exhaust pipe

1pc

9.

power cable

1pc

10.

Packing list

1pc

11.

Quality certificate

1pc

12.

User manual

1pc
