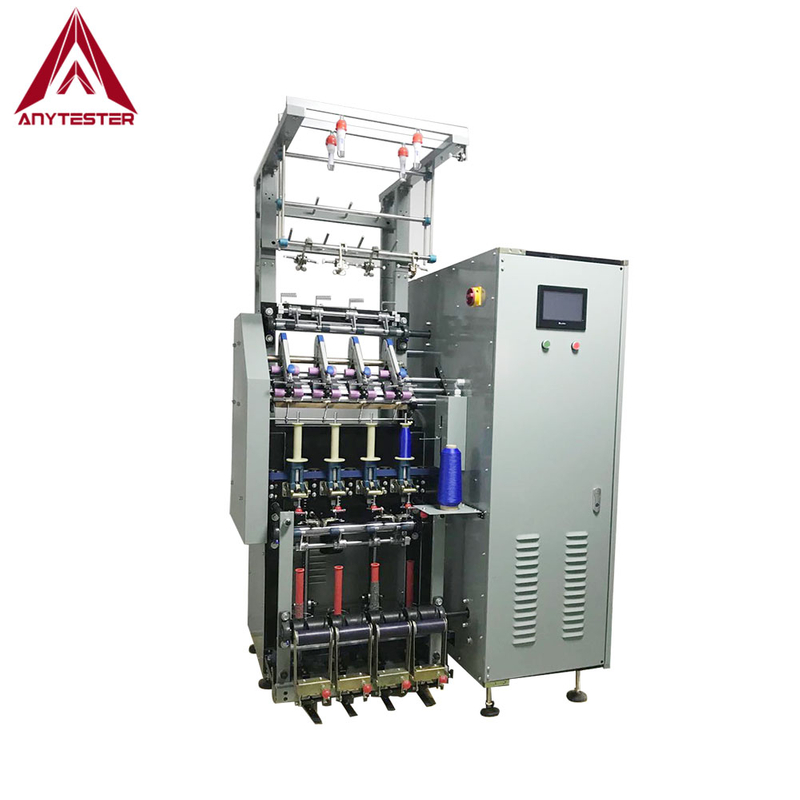

AT208F 4 Spindles Fancy Twisting Machine

AT208F Fancy Twisting Machine is used to spin some fancy yarns, such as, loop yarn, corrugated yarn, big-belly yarn and color yarn by feeding roving through the drafting mechanism, filament from hollow spindle and single yarn from the ring spindle and grooved drum.

  • AT208F

  • Anytester

Availability:

Product Description

AT208F Fancy Twisting Machine is used to spin some fancy yarns, such as, loop yarn, corrugated yarn, big-belly yarn and color yarn by feeding roving through the drafting mechanism, filament from hollow spindle and single yarn from the ring spindle and grooved drum.


Features

★ Large touch screen display and PLC control;

★ Multi-functions of loop yarn, corrugated yarn, big-belly yarn and color yarn;

★ Independent controlling of drafting rolls and grooved drum;

★Twist directions of S/Z;


Technical Specification

Model

AT208F

Control mode

Touch screen & PLC control

Suitable fiber type

Cotton or cotton-type fibers

Fiber length

21~42mm

Output capacity

0.25~0.5kg/h

No. of spindles

4

Ring diameter

¢75mm

Pressure mode

Pendulum arm for cotton spinning

Draft system

Three-roll-up & three-roll down

Draft ratio

2~50

Diameter of drafting rolls

25mm

Distance between front &middle rolls

44~73mm

Distance between middle & back rolls

47~48mm

Power supply

AC220V 50Hz, single-phase, 1500W
