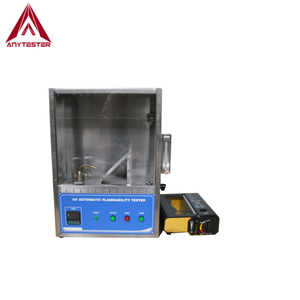

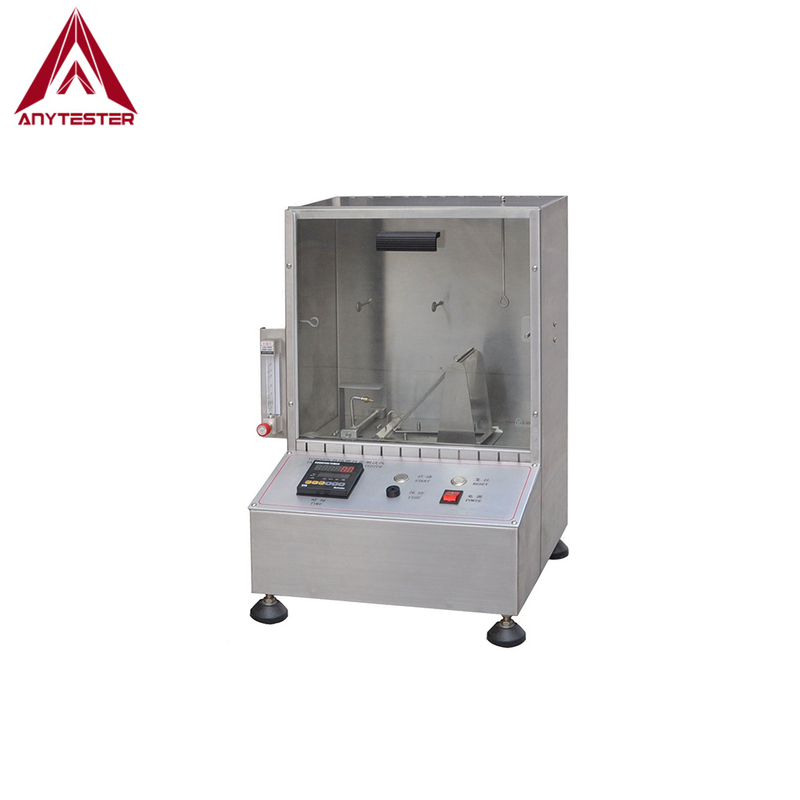

AT815D -Ⅱ 45 Degree Flammability Tester

AT815D-II 45 Degree Flammability Tester is used to determine the burning characteristics of textiles under 45°direction.

  • AT815D-Ⅱ

  • Anytester

Availability:

Product Description

AT815D-II 45 Degree Flammability Tester is used to determine the burning characteristics of textiles under 45°direction.


Standard

ASTM D1230

CFR 1610

NFPA 702

GB/T 14644

FZ/T 81001



Features

★ It consists of combustion chamber and control box, combustion chamber contains bracket for placing sample holder, spool, igniter, etc.
★ Stainless steel structure, nice and durable
★ Intelligent controller, LED display, accurate, stable and reliable


Technical Specification

Model

AT815D-II

Timing range

0.1s~999.9s

Timing accuracy

0.1s

Flame height

16mm

Gas pressure

17.2kPa±1.7kPa

Power supply

AC220V±10%, 50Hz

Power

40w

Dimensions

390mm×265mm×530mm

Weight

12kg


Standard Configuration

No.

Item

Quantity

1.

Main machine

1set

2.

Sample holder

1pc

3.

Quality certificate

1pc

4.

User manual

1pc

5.

Packing list

1pc
