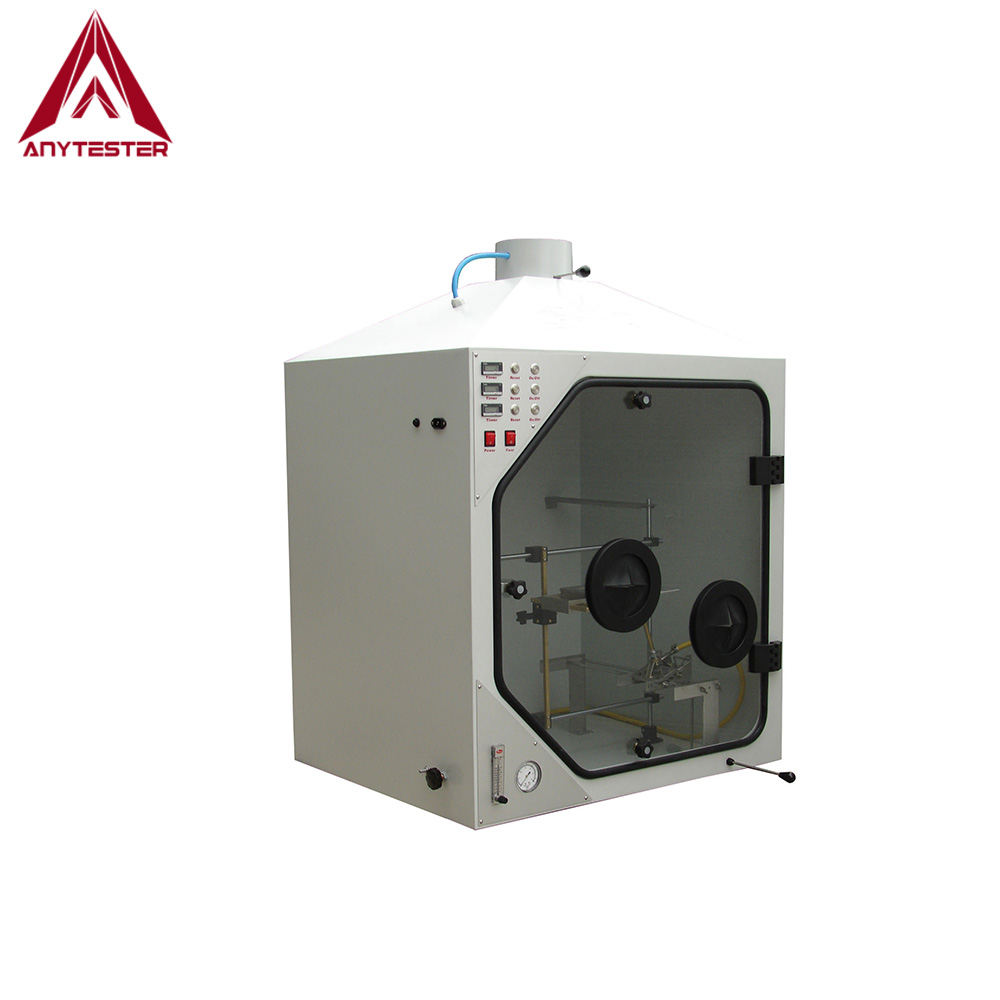

AT840 UL94 Horizontal and Vertical Flammability Tester is used to evaluate compliance the ignition resistance properties of component parts and materials of apparatus and instruments, and suitable for determining the flammability properties such as flammable properties, burning rate, flame spread speed, burning intensity and flammability resistance of products.
AT840 UL94
Anytester
Product Description
AT840 UL94 Horizontal and Vertical Flammability Tester is used to evaluate compliance the ignition resistance properties of component parts and materials of apparatus and instruments, and suitable for determining the flammability properties such as flammable properties, burning rate, flame spread speed, burning intensity and flammability resistance of products.
Standard
Horizontal flammability test | UL HB, IEC 60695-11-10, IEC60707, ISO 1210, GB/T 2408 |
50W vertical flammability test | UL94 V0, V1, V2, IEC60695-11-10, ISO 1210, GB/T 2408 |
Features
★ Volume of test chamber larger than 0.75m3;
★ Large observation window, easy to observe burning state;
★ Humanization design, easy to adjust specimen and burner;
★ 0°, 20°, 45°angle of burner is adjustable;
★ Bunsen burner igniting source, as per ASTM D5025;
★ Record test time by timer on control panel;
★ Adjust burning gas flow by rotor flow meter;
★ High accuracy pressure regulating valve to provide needed gas pressure;
★ Wingtip burner, as per ASTM D4986;
★ Equipped with gas suction device to remove waste gas;
★ Burner calibration system, as per ASTM D5207
Technical Specification
Standard conguration
No. | Item | Quantity |
1. | Main machine | 1 set |
2. | UL94 HB sample holder with support | 1 pcs |
3. | UL94 HB sample holder without support | 1 pcs |
4. | UL94 V vertical sample holder | 1 pcs |
5. | UL94 5V plate vertical sample holder | 1 pcs |
6. | Pack list | 1 pcs |
7. | Quality certificate | 1 pcs |
8. | User manual | 1 pcs |
