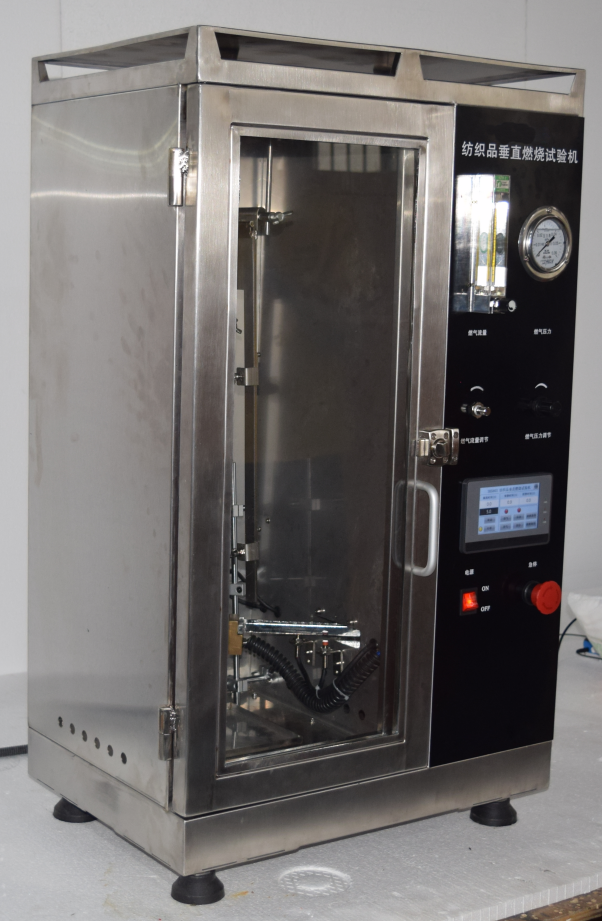

Camping Tent Vertical Flammability Tester

Display and control mode

Touch screen +PLC control

Inner size of test chamber

330×330×760mm

Vent holes on top of chamber

Ф13mm×16

Burner

5mm inside-diameter barrel 75mm±6mm long

Iginition gas pressure

17.2kPa±1.7kPa

Flame height

38±3mm, adjustable

Iginting time

0~999.9s, randomly-settable with the accuracy of 0.05s

Timing range for after-flame and after-glow

0~999.9s±0.1s

Hardware cloth size

152×152×1.5mm

Specimen holder

U-shaped stainless steel plates consisting of 3 plates

Bottom steeel plate :a thickness of 3.2mm, a length of 420mm and a width of 80mm, and its inner frame size is 360mm× 50mm

Top steel plate: a thickness of 3.2mm. Length 410 mm, width 80 mm U-shaped stainless steel plate,

Center steel plate: a 1.6mm thick top 45° angle

Weight

50/100/200/350g

Gas required

Propane, butane or liquefied petroleum gas

(prepared by the user himselft)

Power supply

AC220V 50Hz

Dimensions of machine

510×510×910mm
