HY0137
Anytester
Product Description
HY0137 Series Yarn Evenness and Hairiness Tester is used to test evenness and hairiness of yarns, roving, slivers which are spun with cotton, wool, flax, short synthetic fiber and blend fiber.
Features
★ Imported electronic speed regulating system feature with accurate rotation speed and high test precision;

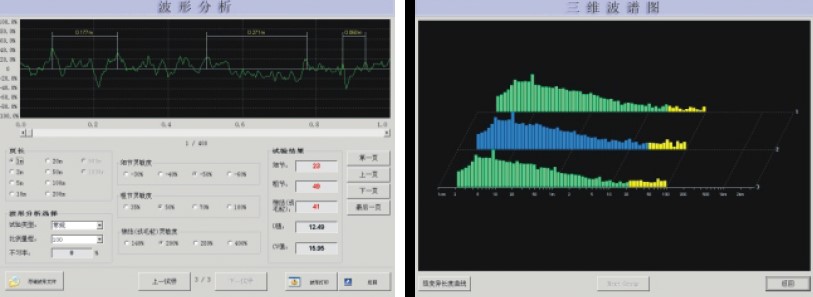

★ Zooming the currently unevenness curve in several proportion to facilitate the analysis of cycle uneven quality;
★ Storing the test resulting in database to make it easy for user to carry out classified statistics and analysis with test result and enhance the quality control ability;
★ Statistic analyzing system can put out annals, seasonal report, monthly report, daily report of testing data for some material, and distribution diagram of index tendency;

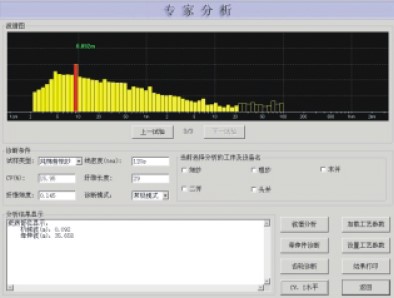

★ Expert system (optional) can help user to analyze failures in the textile technology. It also can compare the yarn with USTER statistics.
Technical Specification
Model | HY0137T | HY0137 | HY0137M |
Measuring range | 160tex-16ktex | 4tex-12ktex | 4tex-12ktex |
Suitable for sample type | roving, slivers | yarns, roving, slivers | |
Function type | Evenness | Evenness & hairiness | |
Testing speed | 8, 25, 50, 100m/min | 25, 50, 100, 200, 400m/min | 25, 50, 100, 200, 400, 800m/min |
Testing time | 10s ~ 99.9min settable, interval 10s | 10s ~ 20min settable, interval 10s | 10s ~ 20min settable |
Spectrogram range | 54 frequency channels | 1cm ~ 1472cm, 80 frequency channels | 1cm ~ 2000m, 170 frequency channels |
CV% (U%) range | 0.2 ~ 100% | ||
Thin | -30%, -40%, -50%, -60% | ||
Thick | +35%, +50%, +70%, +100% | ||
Neps | +140%, +200%, +280%, +400% | ||
CV length curve | Cutting length 0.01 ~ 2000m | ||
DR% | Output: DR (1m, +5%), DR (1m, -5%), DR (20cm, +35%) | ||
Power supply | AC220V±10% 50Hz | ||
Power consumption | 400W | ||
Weight | 65kg | ||
