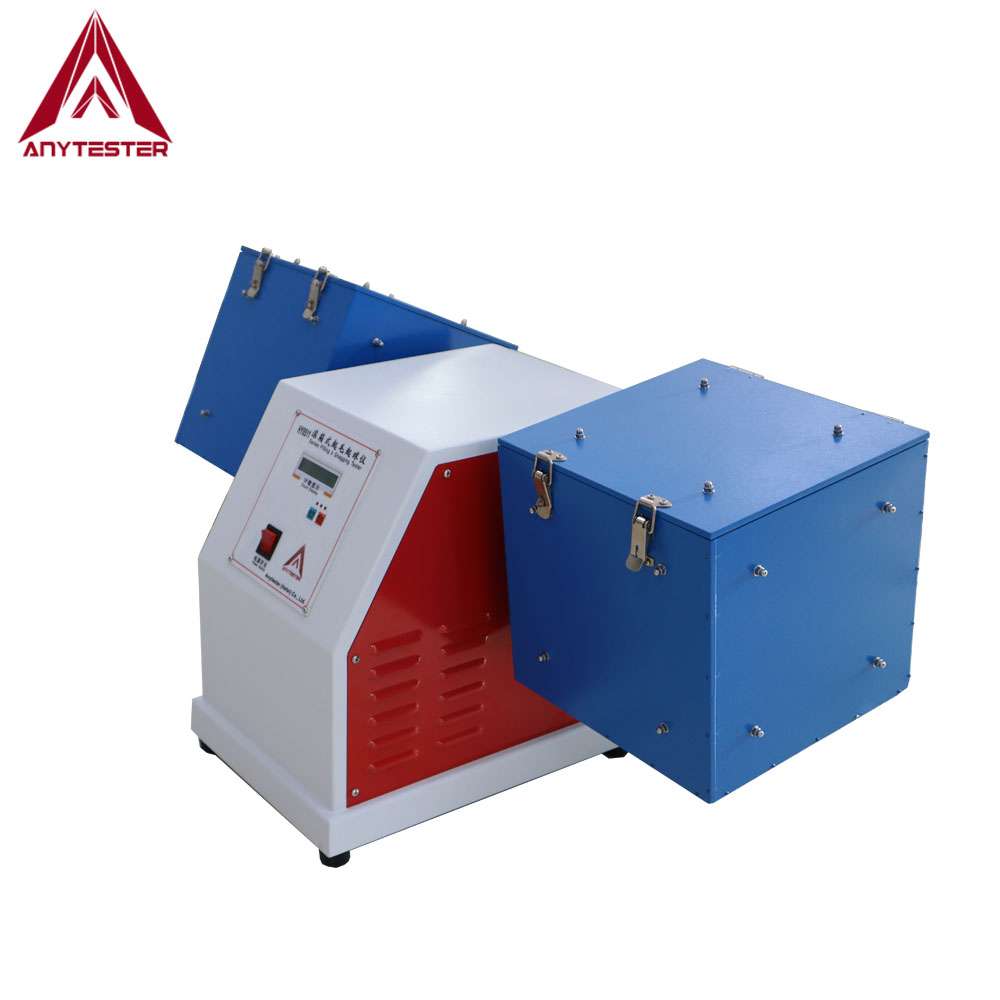

HY0511 Series ICI Pilling and Snagging Tester

HY0511 Series ICI Pilling and Snagging Tester is used to determine the surface fuzzes and pilling properties of both woven and knitted materials. It complies with the requirements of EN ISO 12945-1, JIS L1076, IWS TM152 and BS 5811, etc.

  • HY0511

  • Anytester

Availability:

Product Description

HY0511S Series ICI Pilling and Snagging Tester is used to determine the surface fuzzes and pilling properties of both woven and knitted materials. It complies with the requirements of EN ISO 12945-1, JIS L1076, IWS TM152 and BS 5811, etc.


Standards

EN ISO 12945-1

IWS TM152

BS 5811

JIS L1076

GB/T 4802.3



Features

★ Imported Specimen mounting tube and corkliner make our machine more precision and the test result is same as James Heal

★ Corkliner adopt demountable design, it’s easy to replace

★ Large touch screen control and display

★ Box is made up of import material, more stable and easy to change corkliner.

★ Imported servo-motor drive, more precision, durable and low noise

★ Imported Autonics counter from Korea with automatic reset function for each box equipped with a counter, stand-alone display times

★ Imported control panel and stainless steel button


Technical Specification

Model

HY0511S-II

HY0511S-IV

HY0511S-VI

Number of pilling box

2

4

6

Inner dimension of pilling box

235×235×235mm

Rotational speed

60±2rmin

Counter range

199999

Mounting tube

4 pcs/box

Mounting tube size

Φ31.5×140 mm

Power supply

AC220V±10%, 50Hz

Dimensions

1200×500×500

1200×500×800

1200×500×1100

Weight

45 Kg

65 Kg

96 Kg
