HY8050
Anytester
Product Description

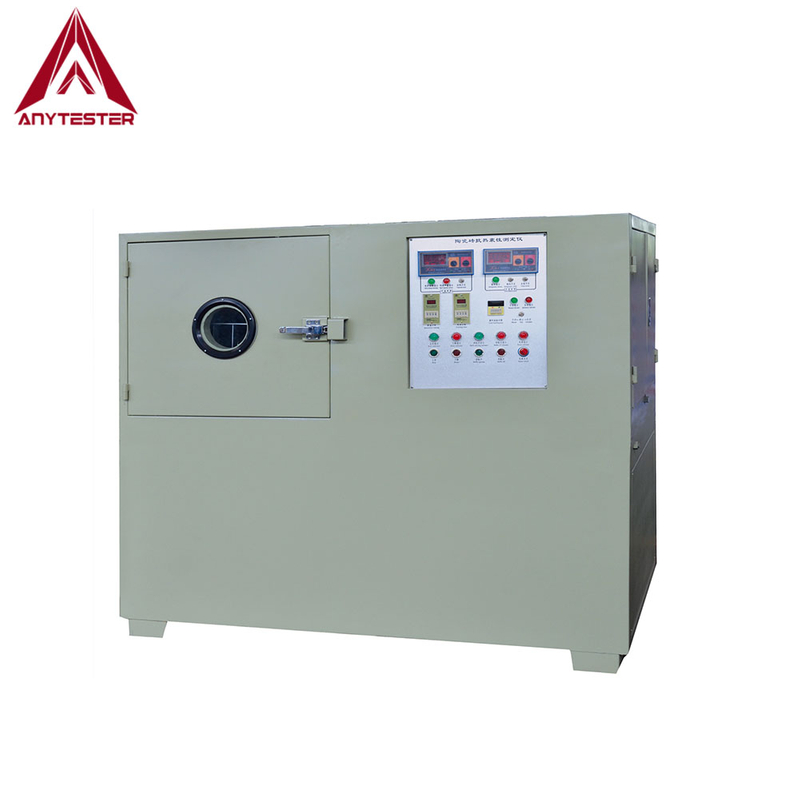

HY8050 Fully Automatic Ceramic Tile Thermal Shock Resistance Tester is used to determine the resistance to thermal shock of all ceramic tiles under normal conditions of use. Depending on the water absorption of the tiles, tests with or without immersion are used.
Standards
ISO 10545-9 | GB/T 3810.9 |
Features
★ It consists of heating oven, constant temperature water tank, charging basket up/down mechanism, oven door open/close mechanism, temperature controller, etc;
★ The machine will automatically complete the set circulations, more convenient;
★ The water tank consists of water circulation system and refrigerating syetem, greatly reducing the water consumption.
Technical Specification
Model | HY8050 |
Working temperature | 300℃ max. |
Temperature accuracy | ±2℃ |
Working chamber size | 600×600×600mm (300×300×300mm optional) |
Heating up time | 60min (RT~400℃) |
Temperature range of water tank | 15~50℃ |
Temperature accuracy of water tank | ±1℃ |
Max. Power of heating oven | 6kw |
Max. Power of electric heater in water tank | 6kw |
Compressor power | 2.2kw |
Timing range | 0~999min |
Power supply | AC380V, 50Hz |
Dimensions | 1500mm×1600mm×900mm |
