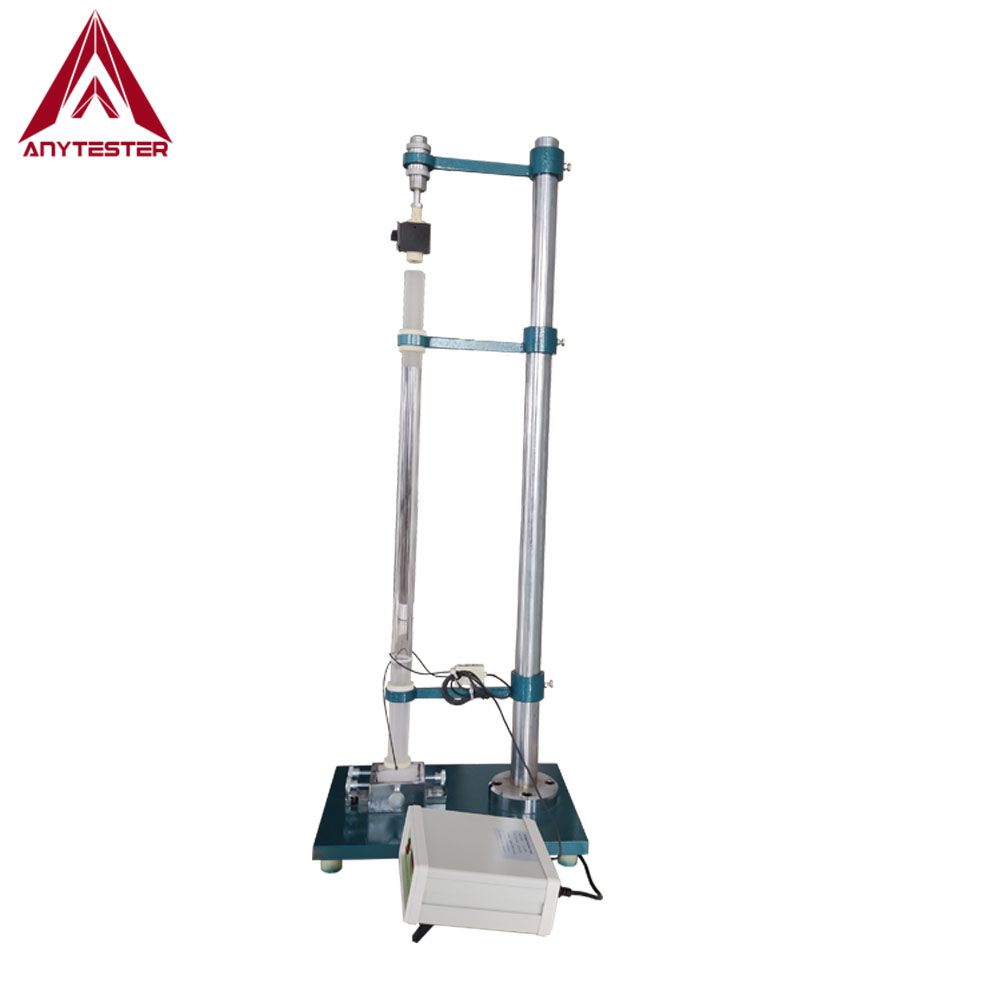

HY8070 Ceramic Tile Impact Resistance Tester

HY8070 Ceramic Tile Impact Resistance Tester is used to determine the impact resistance of ceramic tiles by measuring the coefficient of restitution. A chrome steel ball drops from a fixed height of 1m onto the ceramic tile test specimen. The ball bounces twice and the time interval between bounces is recorded to calculate the coefficient of restitution.

  • HY8070

  • Anytester

Availability:

Product Description

HY8070 Ceramic Tile Impact Resistance Tester is used to determine the impact resistance of ceramic tiles by measuring the coefficient of restitution. A chrome steel ball drops from a fixed height of 1m onto the ceramic tile test specimen. The ball bounces twice and the time interval between bounces is recorded to calculate the coefficient of restitution.


Standards

GB/T 3810.5-2016

EN ISO 10545.5-1997


Features

★ Stable base and metal frame;


★ Laser timer, accurate to 1us;


★ Simple and easy to operate.


Technical Specification

Model

HY8070

Dropping height

1000±1mm

Diameter of steel ball

¢(19±0.5)mm

Accuracy of laser timer

1us

Power supply

AC220V 50Hz, single-phase

Dimensions

500mm×400mm×1440mm (L×W×H)
