AT101
Anytester
Product Description
AT101 Series Universal Testing Machine addresses the needs of standardized and routine testing, providing the user high quality at the most affordable price. The single column testing systems are suited for tension and/or compression applications where tests are less than 5 KN and lab space is limited. They are typically used for quality control and production testing.
Application
AT101 Series Universal Testing Machine is suitable for tensile, compression, bending, shearing, peeling, tearing and other mechanics performance tests of metals, building components, large fasteners, composites, wood products, plastics, rubber, textile, geosynthetics, non-metallic and composite materials. It completely conforms to GB, ISO, ASTM, JIS, DIN and other test standards.

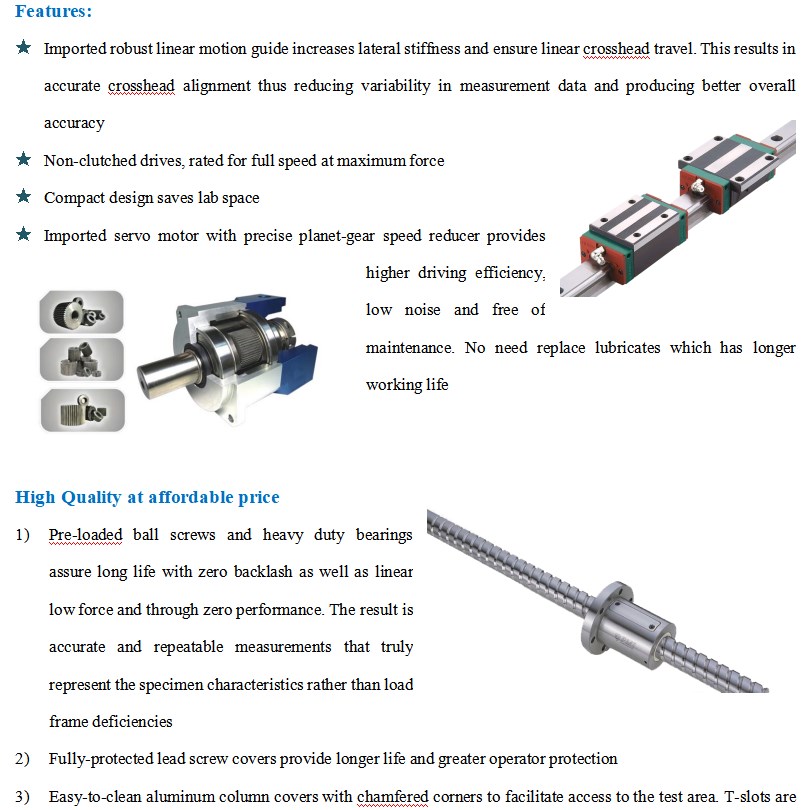

Features

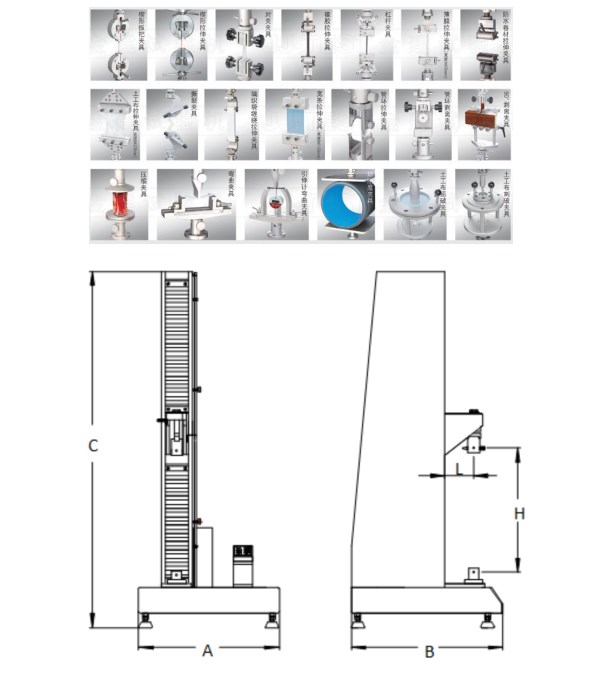

Machine Dimensions
Frame type | W*D*H A*B*C (mm) | Crosshead Travel H(mm) | Front Opening Space L(mm) | Adapter (mm) | Pin (mm) |
Standard | 490*530*1590 | 1000 | 100 | Ф20 | Ф10 |
Specifications
Model | AT101A | AT101B | AT101C | AT101D | AT101E | AT101F | AT101G |
Capacity | 50N | 100N | 200N | 500N | 1kN | 2kN | 5kN |
Type | Single column | ||||||
Calibration standard | ISO 7500, Class 1 / Class 0.5 | ||||||
Force range | 0.2% ~ 100%FS / 0.4 ~ 100%FS | ||||||
Force accuracy | ±1.0% / ±0.5% of reading | ||||||
Force resolution | 1/500000FS | ||||||
Position accuracy | 0.50% of reading | ||||||
Position resolution | 0.042μm | ||||||
Crosshead speed | 0.01 ~ 750mm/min | ||||||
Crosshead speed accuracy | ±1.0% / ±0.5% of set speed | ||||||
Crosshead travel(without grip) | 1000mm | ||||||
Dimension | 530*490*1590mm | ||||||
Power requirements | AC 1Phase, 110/220V±10%, 50/60Hz | ||||||
Weight | 90Kg | ||||||
