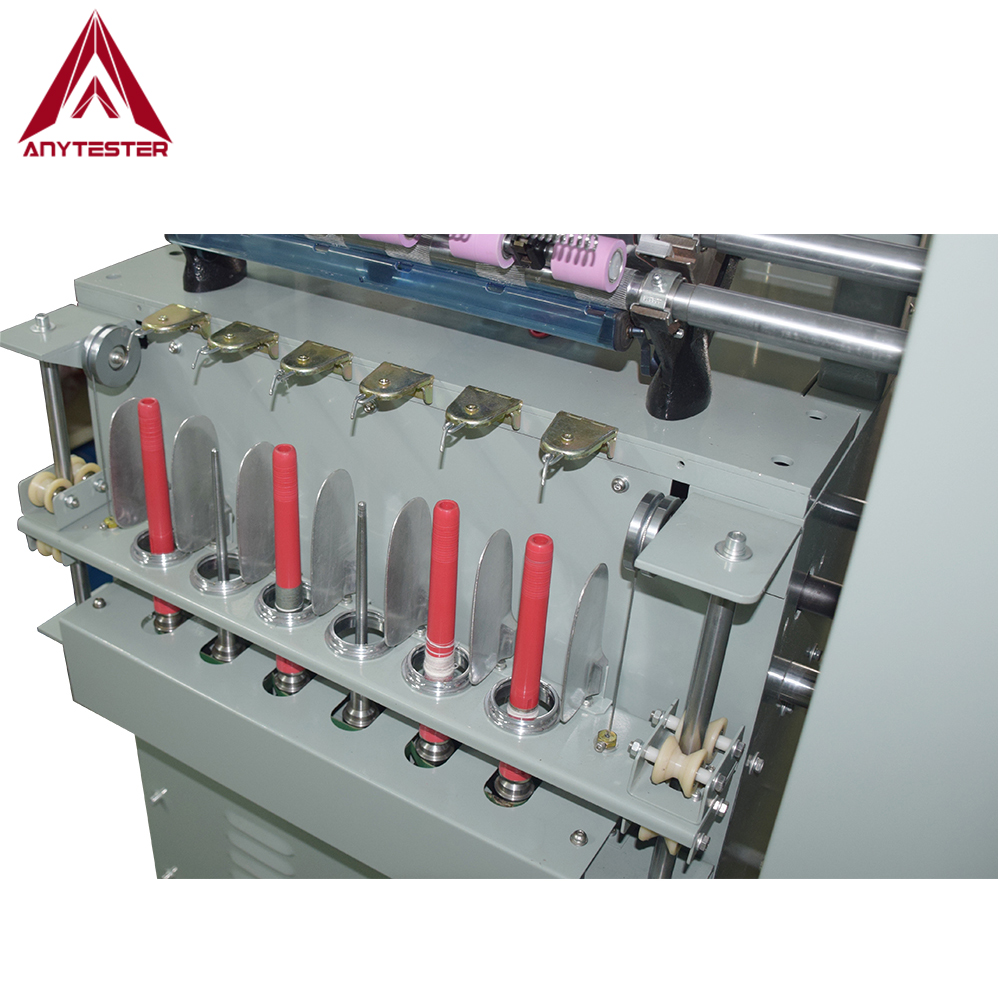

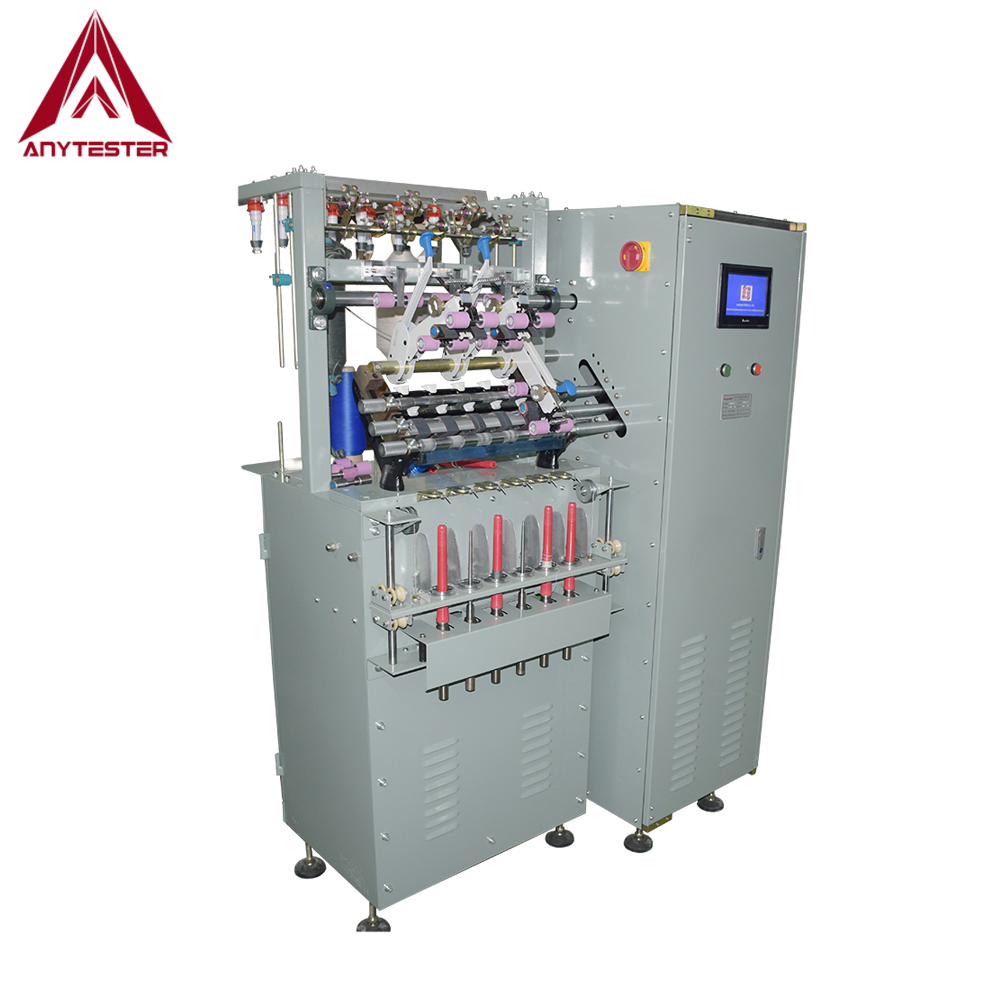

AT206F Laboratory Fancy Spinning Machine

AT206F Fancy Spinning Machine is a ring spinning machine with special accessories to spin fancy yarns of change in color or structure, such as slub yarn, variable twist yarn, core-spun yarn winding yarn (an existing yarn wound onto the new-spun yarn) by modifying draft ratio or twist, besides the normal functions of ring spinning machine.
  • AT206F

  • Anytester

Availability:

Product Description

AT206F Fancy Spinning Machine is a ring spinning machine with special accessories to spin fancy yarns of change in color or structure, such as slub yarn, variable twist yarn, core-spun yarn winding yarn (an existing yarn wound onto the new-spun yarn) by modifying draft ratio or twist, besides the normal functions of ring spinning machine.


Features

★ Large touch screen display and PLC control;

★ Multi-functions of color-change yarn, slub yarn, varibable-twist yarn, core-spun yarn and winding yarn besides the normal functions of ring spring machine;

★ Independent controlling of core-adding roll and drafting rolls;

★ Two twist directions of S/Z;

★ Program for spinning up to 30segments of setting spinning time, front roll linear speed, middle roll linear speed, back roll linear speed and core-feeding roll linear speed.


Technical Specification

Model

AT106F

Control mode

Touch screen & PLC control

Suitable fiber type

Cotton or cotton-type fibers

Fiber length

21~42mm

Output capacity

0.25~0.5kg/h

Linear density of yarn

6~99tex

Spindle gauge

70mm

Number of spindles

6,12

Ring diameter

42mm

Pressure mode

Pendulum arm for cotton spinning

Draft system

Three-roll-up & three-roll down

Draft ratio

2~50

Diameter of drafting rolls

25mm

Distance between front &middle rolls

44~73mm

Distance between middle & back rolls

47~48mm

Spindle length

205mm

Twist range

200~2000T/m, adjustable

Spindle speed

Maximum 12000rpm

Power supply

AC220V 50Hz, single-phase
