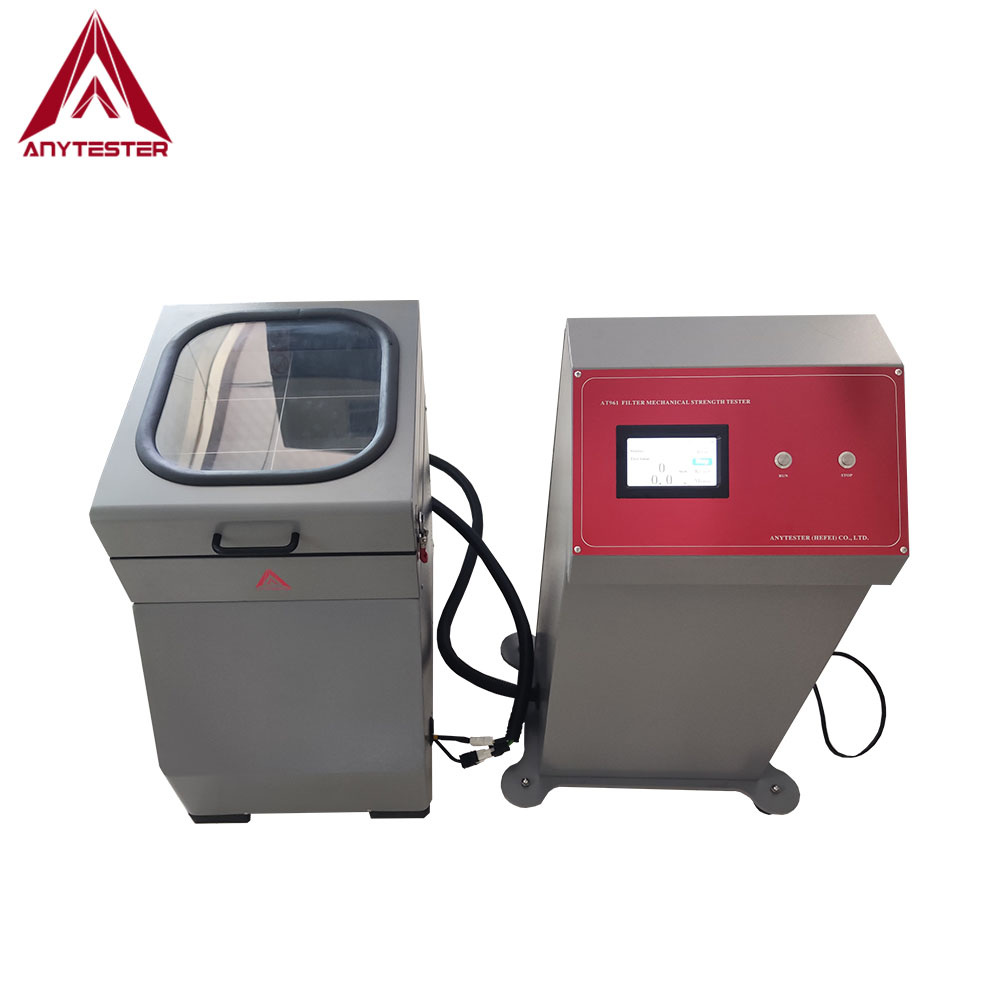

AT961 Filter Mechanical Strength Tester

AT961 Filter Mechanical Strength Tester is used to carry out the vibration test of filter element in non-powered air-purifying particle respirator.
  • AT961
  • Anytester
Availability:

Product Description

AT961 Filter Mechanical Strength Tester is used to carry out the vibration test of filter element in non-powered air-purifying particle respirator.


Features

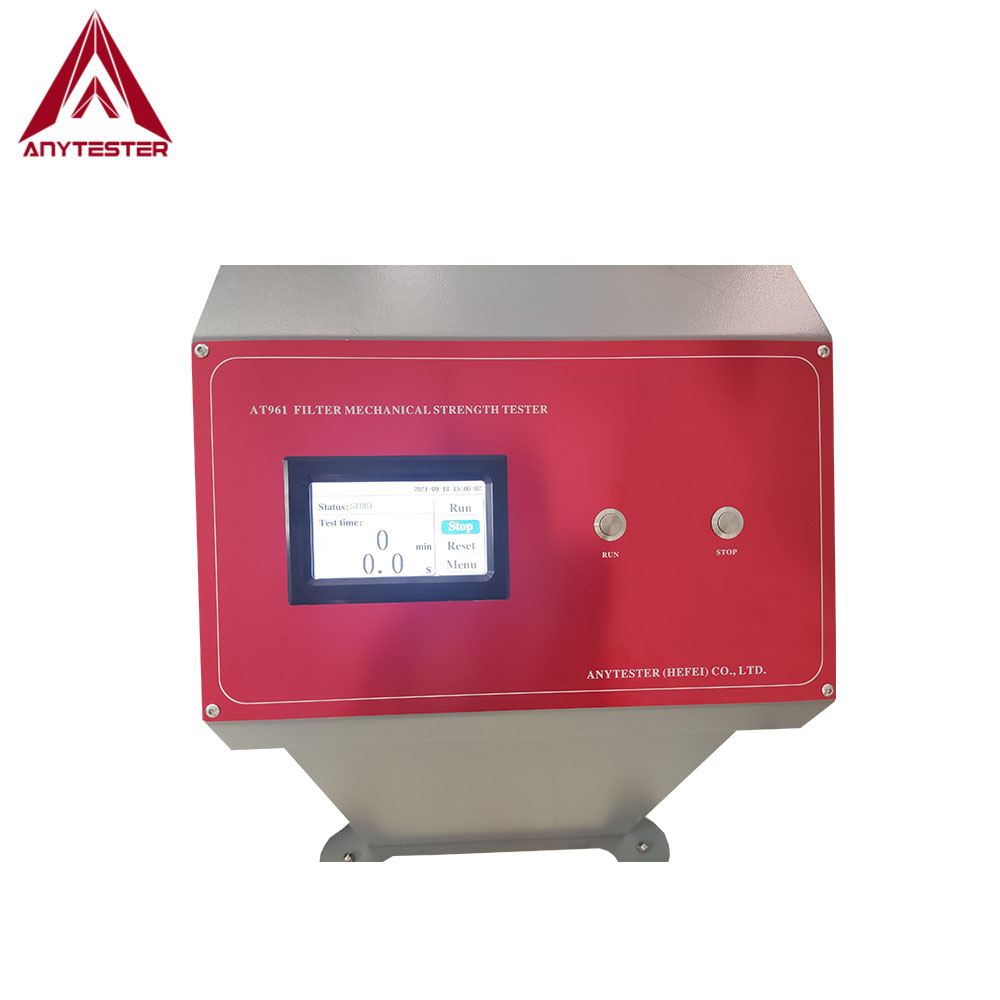

1. Colorful touch screen display and control, convenient to operate and easy to read;

2. Real-time time display during testing, convenient to adjust test time;

3. Core drive mechanism adopts imported precision guide rail;

4. 32-bit ARM processor, accurate to control.


Standards

GB 2626 6.2.2

EN 143 8.3

EN 149 8.3.3


Technical Specification

Model No.

AT961

Falling height of vibration box

20mm

Mass of vibration box

10kg

Driving method

Cam driving

Rotation frequency of cam

100r/min

Number of working positions

6

Power supply

AC220V 50Hz, 500W

Dimensions

580×400×390mm (W×D×H)

Weight

Approx. 140kg
