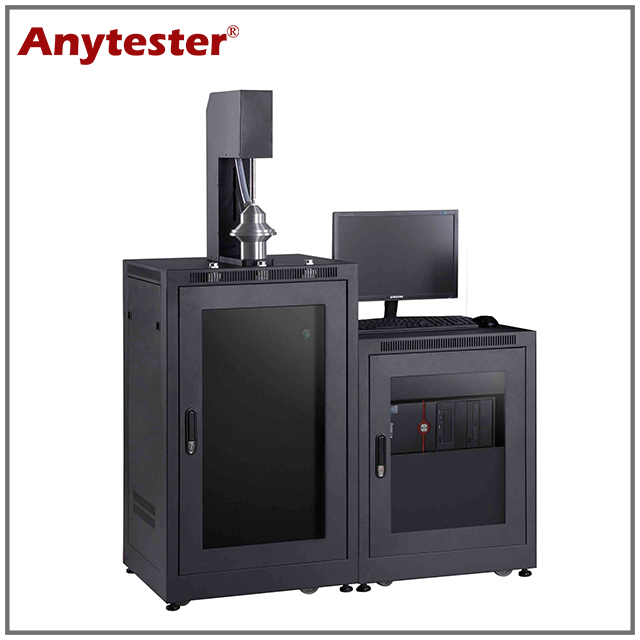

AT901 Automated Filter Tester

HY901 Automated Filter Tester is designed for a stand- alone tester to check a few filters per day or need to integrate your tester in an automated, high-volume, high-volume production line. It has proven track records of durability, reliability, and minimal maintenance, meeting the demanding requirements of manufacturing and quality control environments in the past ten years. It equipped with two sets specially designed aerosol generators enable highly repeatable and reproducible filter-efficiency measurements. It features a high degree of automation and self-diagnostics that greatly simplifies operation, increases throughput, and improves overall measurement performance. As a result, HY9010 filter tester is ideally suitable for QC testing.

  • AT901

  • Anytester

Availability:
Inquire Add to Basket

Product Description

AT901 Automated Filter Tester is designed for a stand- alone tester to check a few filters per day or need to integrate your tester in an automated, high-volume, high-volume production line. It has proven track records of durability, reliability, and minimal maintenance, meeting the demanding requirements of manufacturing and quality control environments in the past ten years. It equipped with two sets specially designed aerosol generators enable highly repeatable and reproducible filter-efficiency measurements. It features a high degree of automation and self-diagnostics that greatly simplifies operation, increases throughput, and improves overall measurement performance. As a result, HY9010 filter tester is ideally suitable for QC testing.


Standards

EN143

GB2626-200

JMOL

NIOSH   42 CFR 84



Note: this Automated Filter Tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.


Features

★  Compliance with more regulations and well received by many customers

★  Simple, fast and automated operation

★  Highly consistent test results

★  Designed for manufacturing environments

★  Support Chinese and English, menu type operating mode and large LCD display, it’s easy to switch

★  Computer control with special software

★  More test items


Technical Specification

Model

HY9010

Aerosol

Salt，DOP，DEHS, Paroline, Corn oil etc

Aerosol density

(50〜200) mg/m3(oil); (12〜20)mg/m3(salt)

Detector

Laser aerosol   particle counter

Measuring range

(20〜100) L/min

Detect temperature

5~ 35℃

Related humidity

0 ~ 90% RH

OPC self-purification time

≤10 mins

OPC flow rate   accuracy

±5%

OPC repeatability

10% F.S

OPC particle size distribution deviation

± 30%

OPC particle density deviation

± 30% F.S

Pressure detect

Digital pressure sensor (pressure difference transmitter)

Pressure detect range

(0~0.88)MPa

Pressure detect accuracy

Grade 2.5

Efficiency testing range

filter efficiency: 10~99.999%

Operation display

LCD display

Power supply

200~235V, 50Hz

Dimension

Main machine

950mm × 600mm ×600mm

Control cabinet

750mm × 600mm ×600mm


Standard Configuration

No.

Item

Quantity

  1. 1.

Main machine

1 set

  1. 2.

Software

1 copy

  1. 3.

Standard clamp

1 set



  1. 4.

Packing list

1 pcs

  1. 5.

Quality certificate

1 pcs

  1. 6.

User manual

1 pcs
