Product Description

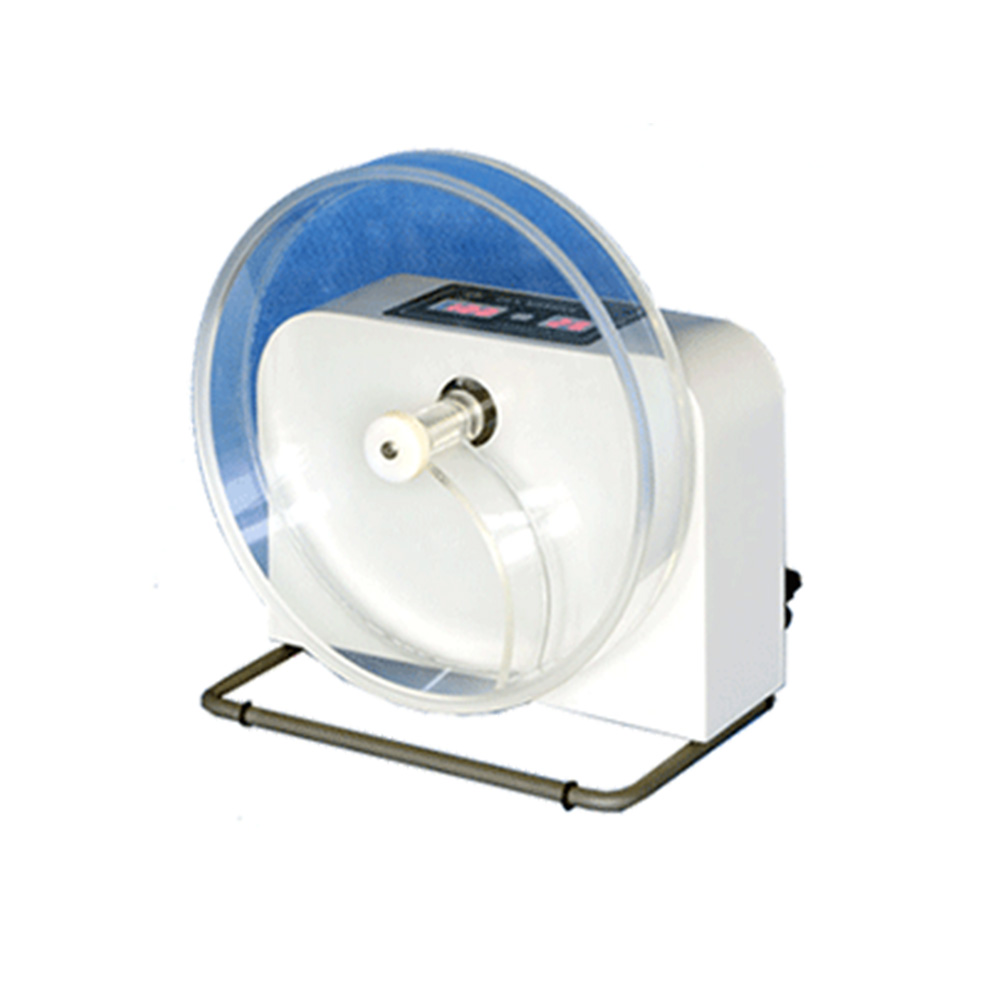

CS Series Tablet Friability Tester is used to determine the friability/abrasion of non-coating tablets.
Standards
pharmacopoeia of the people's republic of china | Q/12XQ0189-2013 | JB/T 20105-2007 |
Feature
1. Drum made of transparent organic glass;
2. Randomly settable rotation speed and number of turns for CS-1;
3. Separate display of preset value and real-time value;
4. High-automation with auto checking, auto diagnose and auto alarm;
Technical Specification
Model | CS-1 | CS-2 | CS-3 | CS-4 |
Number of drum | 2 | 2 | 2 | 1 |
Drum inner diameter | ¢286mm | |||
Drum depth | 39mm | |||
Tablet drop height | 156mm | |||
Rotating speed range | (20~90)rpm | 25rpm | ||
Rotating speed accuracy | ±1rpm | |||
Number of turns | (10~900)turns | 100turns | (10~900)turns | 100turns |
Accuracy of turns | ±1turn | |||
Power supply | AC220V 50Hz, 60W | AC220V 50Hz, 40W | AC220V 50Hz, 20W | |
Dimensions | 36*30*34cm | 30*20*33cm | ||
Weight | 14kg | 11kg | 14kg | 6kg |
