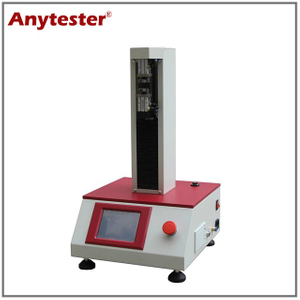

HY-110 Yarn Friction Tester

HY-110 Yarn Friction Tester is used to determine yarn friction properties. It is suitable for determination of dynamic friction coefficient of chemical fiber filament and other material yarns. It is also can be used to determine friction coefficient of roller and other textile accessories.
This machine conforms to ASTM D3108, etc.
  • HY-110
  • Anytester
Availability:

Product Description

HY-110 Yarn Friction Tester is used to determine yarn friction properties. It is suitable for determination of dynamic friction coefficient of chemical fiber filament and other material yarns. It is also can be used to determine friction coefficient of roller and other textile accessories.
This machine conforms to ASTM D3108, etc.


Features

★ High precision force measuring mechanism

★ Adjustable pre-tension mechanism

★ Adjustable yarn running speed

★ Computer control, automatic data process


Technical Specification

Model

HY-110

Force range and accuracy

0~500cN±1%

Friction coefficient range

0u1

Friction angle range

0~360°

Pre-tension range

0~24cN

Measuring speed

0~100m/min adjustable

Display items

Speed, pre-tension, friction coefficient

Power supply

AC220V 50Hz 300W
