HY0176 Digital Wool Fineness Tester

HY0176 Digital Wool Fineness Tester adopts airflow method to test wool fineness, exert a certain pressure of air in the wool sample, because of the fineness of the wool, through the air flow is different, by measuring the air flow also associated with the wool fineness test.
  • HY0176

  • Anytester

Availability:

Product Description

HY0176 Digital Wool Fineness Tester adopts airflow method to test wool fineness, exert a certain pressure of air in the wool sample, because of the fineness of the wool, through the air flow is different, by measuring the air flow also associated with the wool fineness test.


Features

★ Precision flow sensor, a wide range of Wool Fineness measurements, reaching 12 to 50um, which is the widest range of instruments test Wool Fineness by airflow method.

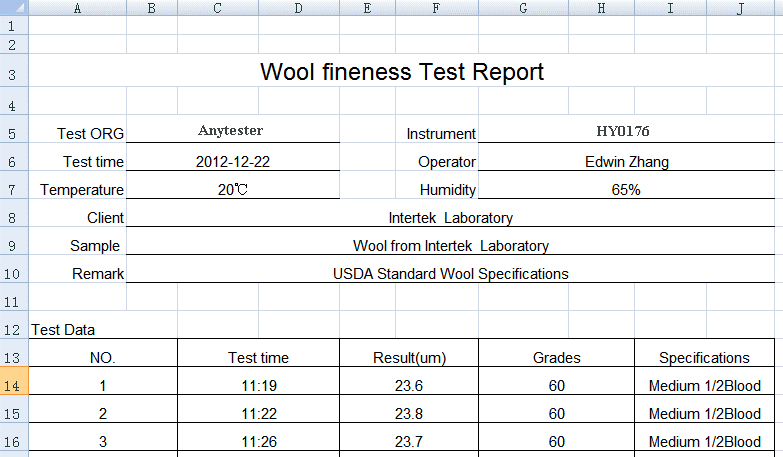

★ Fast test, installed the sample, press test key, you can quickly get the result, the instrument with a USB interface, send the result to Pc to analysis of test results, print the standard test report and can also save the test report to EXCEL format.


★ Calibration is convenient, use standard Wool, through the calibration, not standard laboratory environment also can accurately test Wool Fineness value.





Technical Specification

Model

HY0176

Measuring range

12~50μm

Measuring accuracy

0.1μm (standard lab environment)

Test time

15 seconds on average

Sample mass

2.5±0.004g

Power requirements

AC 100-240V50/60Hz

PC communication

USB port connection

Dimensions

 L520×W280×H300mm

Weight

10kg
