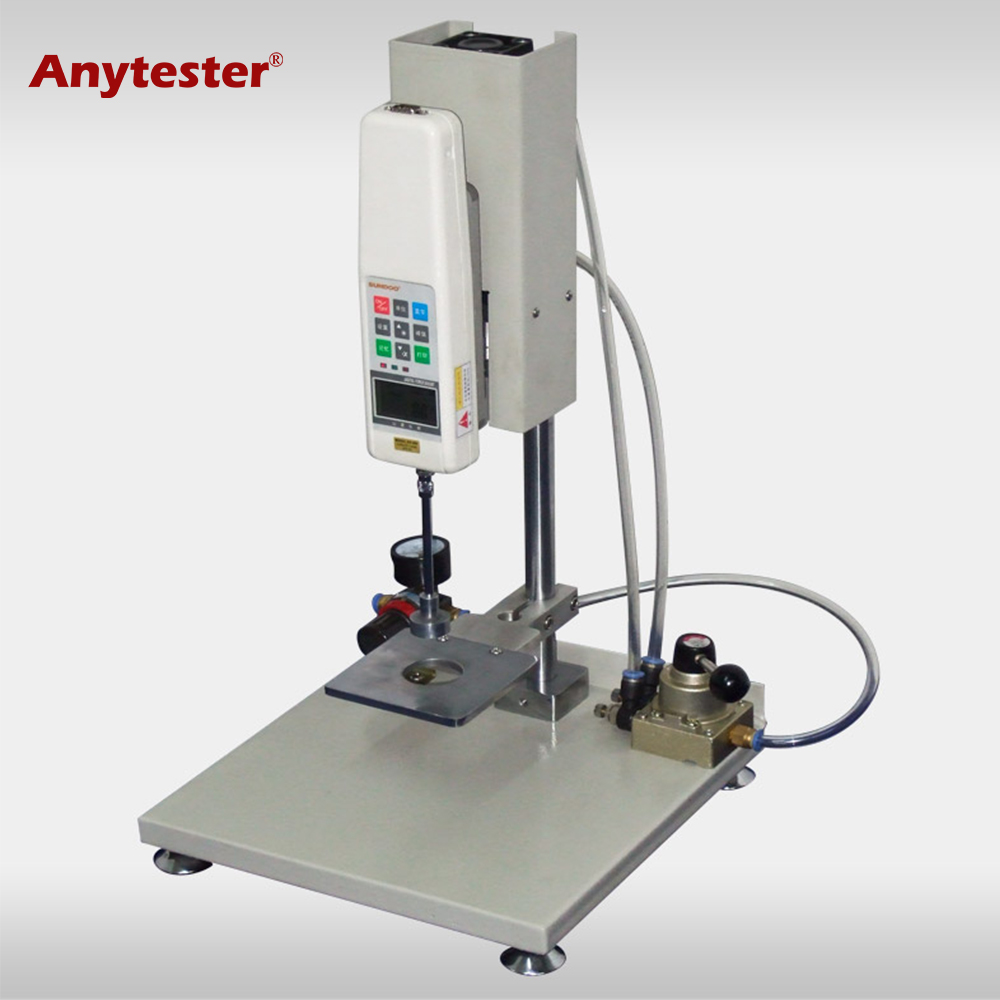

HY0270F Pneumatic Fabric Stiffness Tester

HY0270F Pneumatic Fabric Stiffness Tester is used to determine fabric stiffness according to ASTM circular bend test method.
  • HY0270F

  • Anytester

Availability:

Product Description

HY0270F Pneumatic Fabric Stiffness Tester is used to determine fabric stiffness according to ASTM circular bend test method.


Principle

A plunger of 25.4mm (1 in) diameter pushes the fabric through a 38mm (1.5in) diameter orifice for a distance of 57mm (2.25in) in 1.7 seconds and the maximum force is recorded.


Standards

ASTM D 4032




Features

★ The plane is equipped with pneumatic piston, controller and battery-driven digital thrust table

★ Smooth-polished chrome-plated steel platform.

★ Digital display force gauge reach to 500N

★ Three units switchable, kgf, N and lb.


Technical Specification

Model

HY0270F

Size of sample

102 x204mm

Capacity

500 N

Test platform

102 x102mm, diameter of center hole  is 38.1 mm (1.5 ")

Loading head

diameter of 25.4 mm (1 ")

Trip

57 mm (2.25 ")

Loading speed

1.7 ± 0.3 s / 57 mm

Loading pressure

324 Kpa (psi)

Dimension

30 x30x48cm

Weight

15 Kg
