HY033C Digital Elmendorf Tearing Tester

HY033C Digital Elmendorf Tearing Tester is used to determine the ballistic tearing strength of textiles, paper, board and film, etc.

  • HY033C

  • Anytester

Availability:
Inquire Add to Basket

Product Description

HY033C Digital Elmendorf Tearing Tester is used to determine the ballistic tearing strength of textiles, paper, board and film, etc.


Standards

ASTM D1424, 5734, 1922, 689

ISO 13937.1, 1974, 9290, 4674-2, 6383-2

DIN 53862, 53128

BS 4253, 4468

JIS L1096

GB/T 3917.1, 11999

FZ/T 60006, FZ/T75001

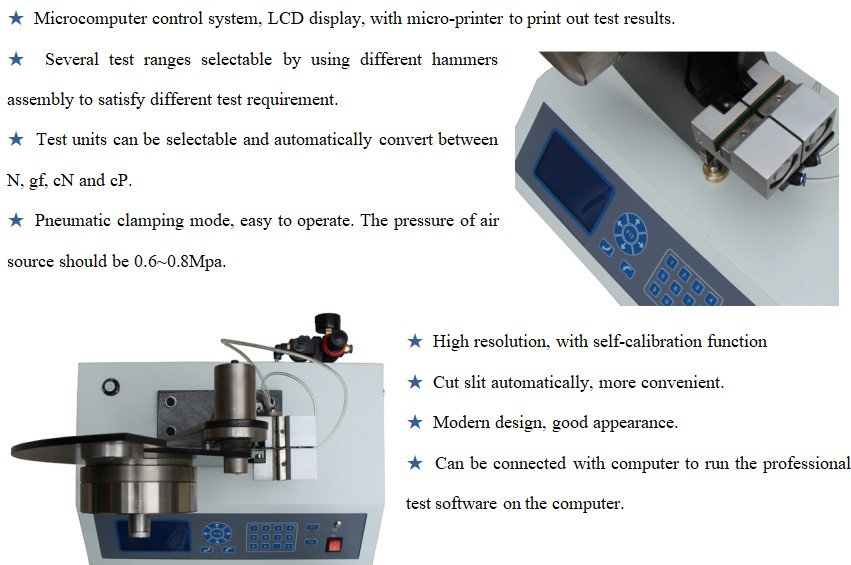

Features

002

Operation interface

001

Technical Specification

Model

HY033C

Range

0~16N, 0~32N, 0~64N

Error of display value

≤±0.2% F.S

Slit length

20mm±0.1mm

Tearing length

43mm

Sample size

100×63mm

Working air pressure

0.6~0.8MPa

Power supply

AC220V±10%, 50Hz, 100w

Dimensions

480mm×330mm×630mm

Weight

55kg
