HY0368
Anytester
Product Description

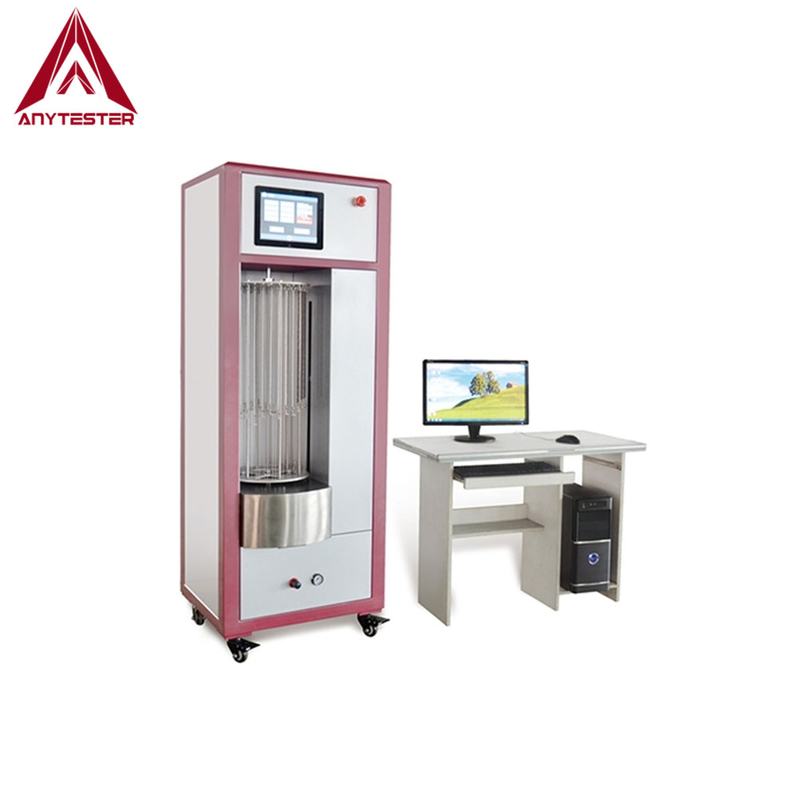

HY0368 Full Automatic Filament Crimp Shrinkage Tester is used to determine the shrinkage in boiling water or in dry hot air (after treatment) of synthetic filament yarns, such as, polyester, nylon and polypropylene.
Standards
GB/T 6505-2008, GB/T 6505-2001 | ISO 18066-2015, ISO 18067-2015 |
Features
★ High precise position system, no need of repeating restoration and high working efficiency.
★ Automatic changing of load function.
★ Automatic timing function.
★ Automatic length measurement.
★ Automatic zero calibration.
★ Automatic calculation and printing of test result.
Technical Specification
Model | HY0368 |
Load range | 2.5cN~5000cN Randomly settable and auto-loading |
Load accuracy | 0.2cN |
Sample length | 1000mm |
Length measuring range | 0~150mm |
Test index | Crimp shrinkage CC (%) Crimp modulus CM (%) Crimp stability CS (%) Thermal shrinkage S (%) Mean, SD and CV of each index |
Data input | Keyboard and mouse |
Data output | Monitor display or printed by printer |
Number of sample per batch | 30 |
Air pressure required | 0.2~0.3Mpa |
Power supply | AC220V 50Hz 0.5KW for main machine AC380V 4.8KW for oven |
Dimensions | 605×530×1640mm (L×W×H) |
