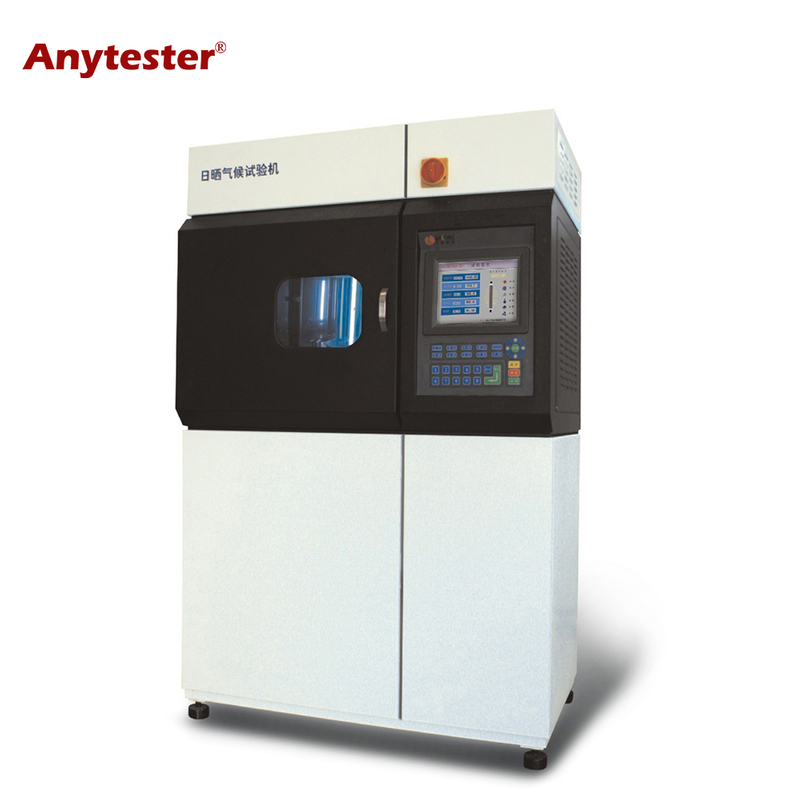

HY0611 Air-cooled Weather-Ometer

HY0611 Air-cooled Weather-Ometer is used to determine the color fastness to light, color fastness to weather of various colored textiles in color fastness experiments and also to determine the color fastness to light, light aging of paint, pigment, coating, rubber, plastic, wood floor, paper and other materials.
  • HY0611

  • Anytester

Availability:

Product Description

HY0611 Air-cooled Weather-Ometer is used to determine the color fastness to light, color fastness to weather of various colored textiles in color fastness experiments and also to determine the color fastness to light, light aging of paint, pigment, coating, rubber, plastic, wood floor, paper and other materials.


Standards

AATCC TM16

JIS 0843

ISO105-B04

ISO105-B02

GB/T8427

GB/T14576

GB/T15102-2006

GB/T15104-2006

GB/T8430


Features

★ Digital setting of light intensity, real-time monitoring, automatic adjustment

★ Equipped with black panel thermometer (BPT), black standard thermometer (BST), irradiance detector at the same position (in equidistance) to real indicate measuring state of samples, test data synchronously transmitted by using technology of radio frequency and digital displayed on the color screen

★ Test and radio transmission are powered by using light conversion technology, no additional power supply is required
★ 10.4inch color touch screen display, with various test monitoring modules (animation, digit, chart), easy to operate, visual and clear
★ Respective timing of each sample clamp may enable different sample test in a same tester and facilitate test monitor and reduce operation cost
★ Adopt 2500W long-arc xenon lamp to real simulate sunlight spectrum
★ With industrial temperature control (refrigeration) system for smoothly and fast adjusting temperature in test chamber
★ Ultrasonic humidification and professional dehumidification system guarantee the accuracy and stability of test humidity
★ Natural circulation system and air filter system inside reduces the environmental requirements greatly
★  One test can run for 1000 hour continuously with quality guarantee


Technical Specification

Model

HY0611

Light source

3300W air-cooled xenon arc lamp

Test chamber temperature and accuracy

R.T  80, ±3

Test chamber humidity and accuracy

1070%RH, ±5%RH

Test time and accuracy

1000h, ±6s

Irradiance range

42W/m2 ±0.02W/m2 @ 300~400nm

Max. sample size

135×45mm (18pcs)

135×75mm (10pcs)

Both sides can clamp samples

Max. exposure area

100*29mm or 100*19.5mm (18 pcs)

100*65mm or 100*27.5mm (10 pcs)

Speed of sample bracket

Revolution: 5r/min

Rotation: 180°/r

Sample clamps timing range

0~1000h, respectively

Black standard thermometer

30110℃±0.2

Black panel thermometer

30100℃±2

Power supply

AC220V±10%, 50Hz, 6.5kW

Dimensions

1200×730×1720mm (L×W×H)

Weight

213kg
