Nylon Drawing Roller Device of The Wet Spinning Machine

AT235 Bench-top Wet Spinning Machine is used for the production of polymers that need to be dissolved in a solvent to be spun.
  • AT235

  • Anytester

Availability:

Product Description

AT235 Bench-top Wet Spinning Machine is special design for researching new material in the field of textile, macromolecule and other material. It consists of spinning solution tank, dosing pump, gooseneck, spinneret, coagulating bath, drawing roller, heating slot, drawing roller, setting slot, drawing roller and winding roller.


Features

Manual lifting platform to move the spinning solution tank, dosing pump, gooseneck and spinneret up or down together;

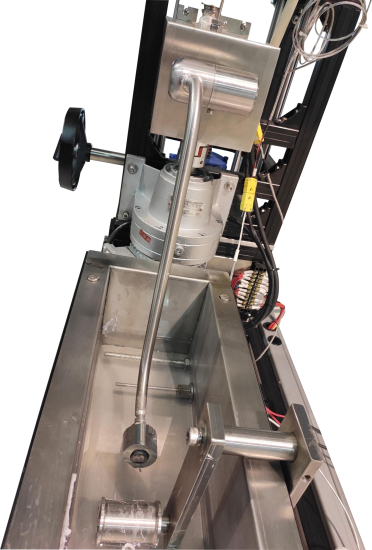

316L stainless steel gooseneck and coagulating bath;

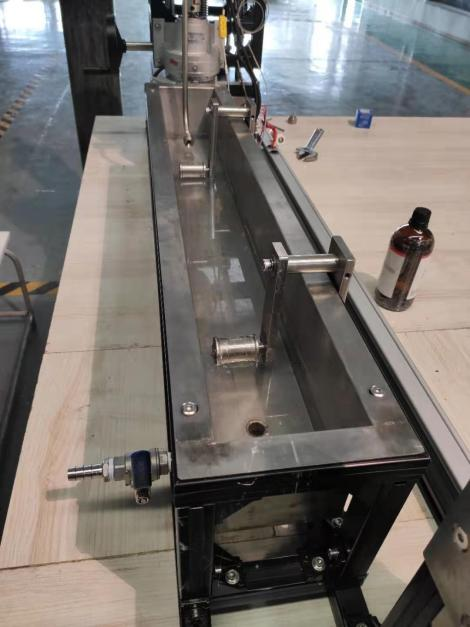

Coagulating bath with two filament pressing rollers and optional heating system;


Optional heating system for coagulating bath;

★ Heating slot adopts non-touch air heating;

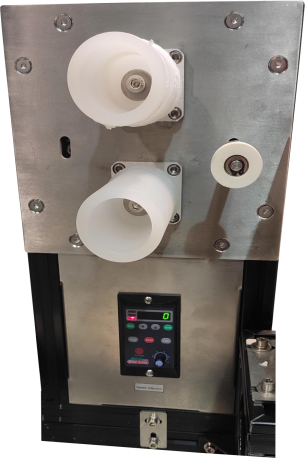

Nylon drafting rollers with adjustable rotation speed;


The whole line adopt quick joint connecting, it’s easy to assemble;

It can simulate the whole process;

Mini size, save space;






Technical Specification

Model

AT235





Spinning solution tank

1L or customized 316L stainless steel Rapid-mount cover

With Nitrogen inlet port and vent port

Sample volume

200~ 600ml or customized

Dosing pump flow rate

0.66CC/rev

Dosing pump power

180W

Dosing pump reducer

1:59

Gooseneck material

316L stainless steel

No. of spinneret

1



Spinneret nut

100 holes, hole dia.: 0.07mm Material: tantalum



Coagulating bath

Inner size

1000×160×160mm (L×W×H)

Material

316L stainless steel



Drawing roller

Material

Nylon

Size

Ø50×80mm
