AT234C
Anytester
Product Description

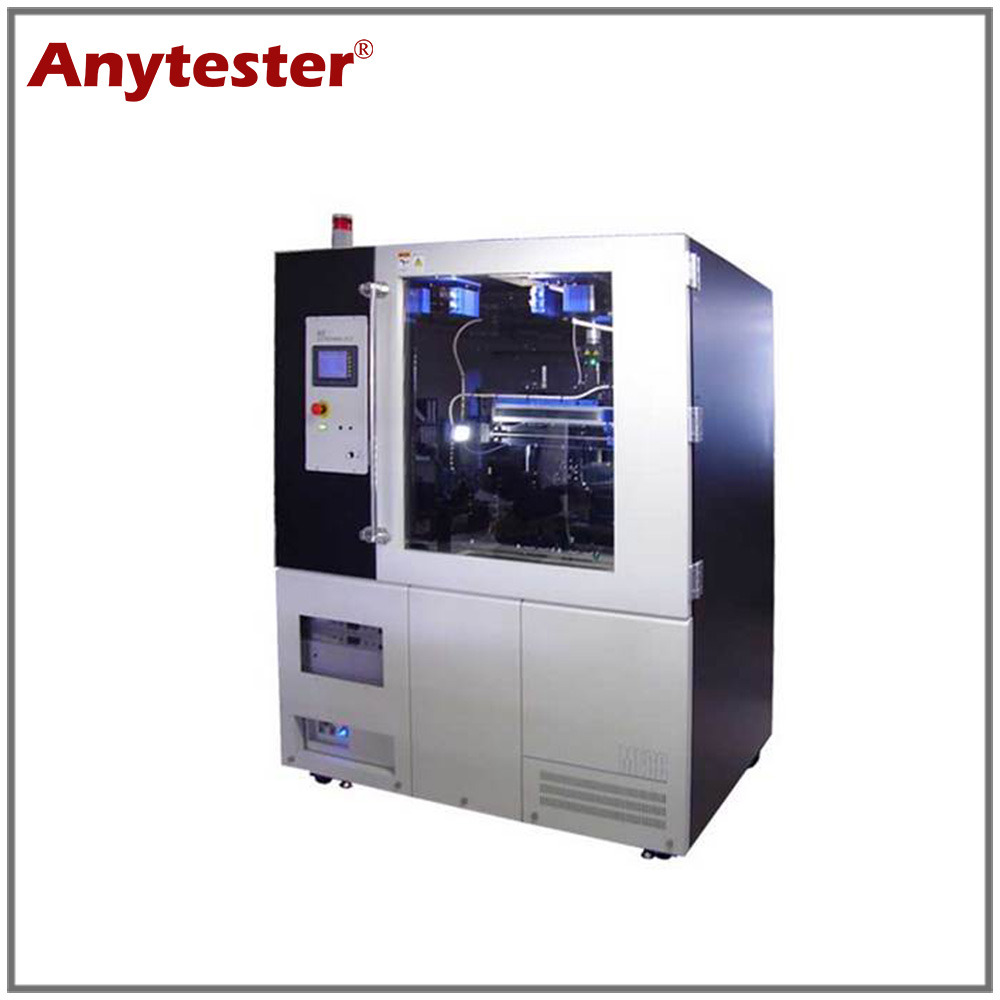

AT234C Electrostatic Spinning Machine is used to make namofibers of various materials (such as, polymer and ceramics) and to make various namofibers, such as smooth surface, porous surface or globular by electrostatic spinning. It can also be used to make nonwoven fabrics or lamination materials of orientation-arrange namofibers.
Features
1. With Temperature And Humidity Controlling System;
2. Double-path flow pump;
3. Adjustable and digital display of high voltage
Technical Specification
Model | AT234C |
Temperature controlling system | RT-80℃ |
Humidity controlling system | 30%~70% |
Flow controlling system | Double-path flow pump 10ml injector: 0.1~300ml/h 20ml injector: 0.1~400ml/h 30ml injector: 0.1~600ml/h |
Voltage/current controlling system | High-voltage power source: 0~50KV, digit display |
Nozzle structure | Single nozzle inner diameter: 0.1~1.6mm Coaxial nozzle inner diameter: 0.1~1.6mm Multi-nozzle system: inlayer inner diameter:=0.7mm Abreast nozzles with adjustable inner diameter |
Nozzle movement | Single-axis, reciprocating constant speed movement Moveable distance: 150mm |
Collecting method | Rotary drum size: D=75mm, 20mm, 5mm L=150mm Rotary speed: 20~300rpm (standard) 150~6000rpm (optional) Collecting dish: D=75mm, sharp edge or flat edge Collecting plate size: A4/B5/A5 |
Power supply | AC220V 50Hz, 3500W |
Dimensions | 1200×800×1200mm (W×D×H) |
Weight | 120kg |
