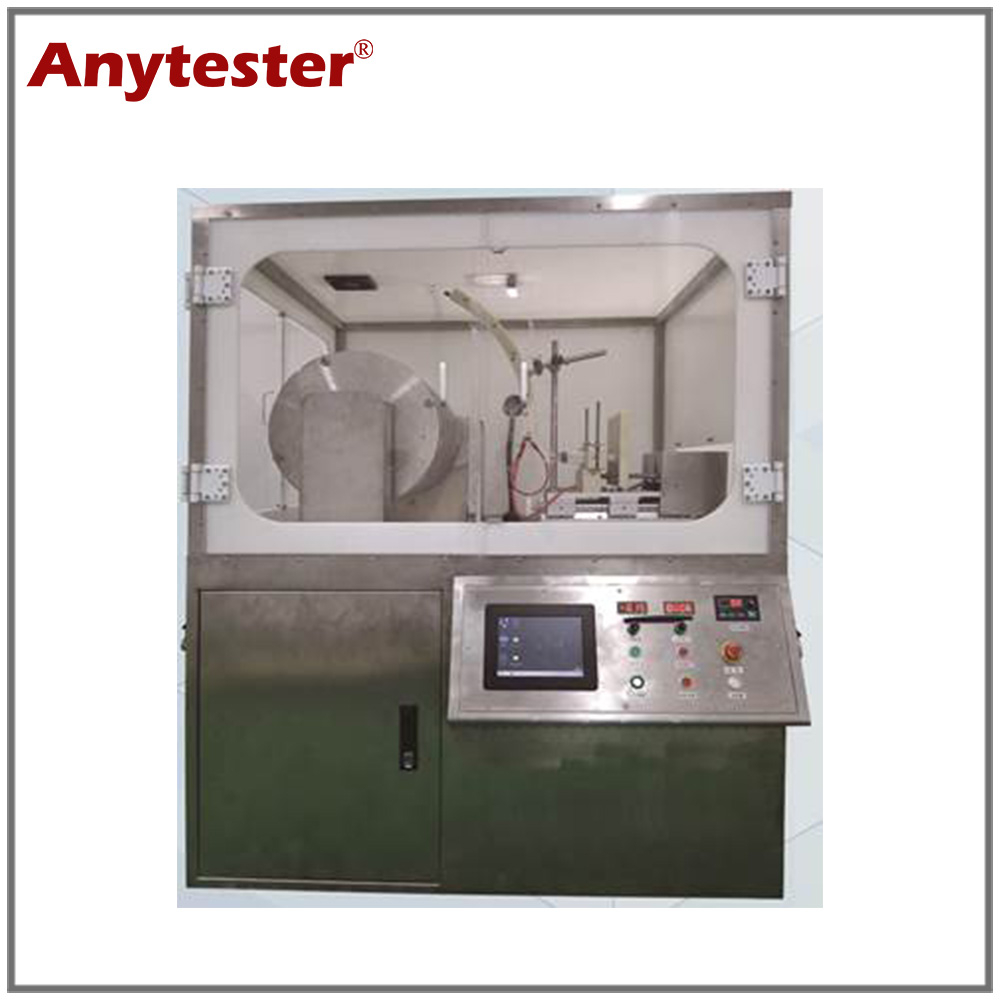

AT234D Medical Electrostatic Spinning Machine

AT234D Medical Electrostatic Spinning Machine is used to make namofibers of medical usage.

Product Description

AT234D Medical Electrostatic Spinning Machine is used to make namofibers of medical usage.

Features

1. With temperature and humidity controlling system;

2. Double-path flow pump;

3. Adjustable and digital display of high voltage

Technical Specification

Model	AT234D
Temperature controlling system	RT-80℃
Humidity controlling system	30%~70%
Flow controlling system	Double-path flow pump 10ml injector: 0.1~300ml/h 20ml injector: 0.1~400ml/h 30ml injector: 0.1~600ml/h
Voltage/current controlling system	High-voltage power source: 0~50KV, digit display
Nozzle structure	Single nozzle inner diameter: 0.1~1.6mm Coaxial nozzle inner diameter: 0.1~1.6mm Multi-nozzle system: inlayer inner diameter:=0.7mm Abreast nozzles with adjustable inner diameter
Nozzle movement	Single-axis, reciprocating constant speed movement Moveable distance: 150mm
Collecting method	Rotary drum size: D=75mm, 20mm, 5mm L=150mm Rotary speed: 20~300rpm (standard) 150~6000rpm (optional) Collecting dish: D=75mm, sharp edge or flat edge Collecting plate size: A4/B5/A5
Power supply	AC220V 50Hz, 3500W
Dimensions	1200×800×1200mm (W×D×H)
Weight	120kg
