Large-Scale Electrostatic Spinning Machine

AT234E Large-scale Electrostatic Spinning Machine can make high-quality namofibers by large scale in the factory.

Product Description

AT234E Large-scale Electrostatic Spinning Machine can make high-quality namofibers by large scale in the factory.

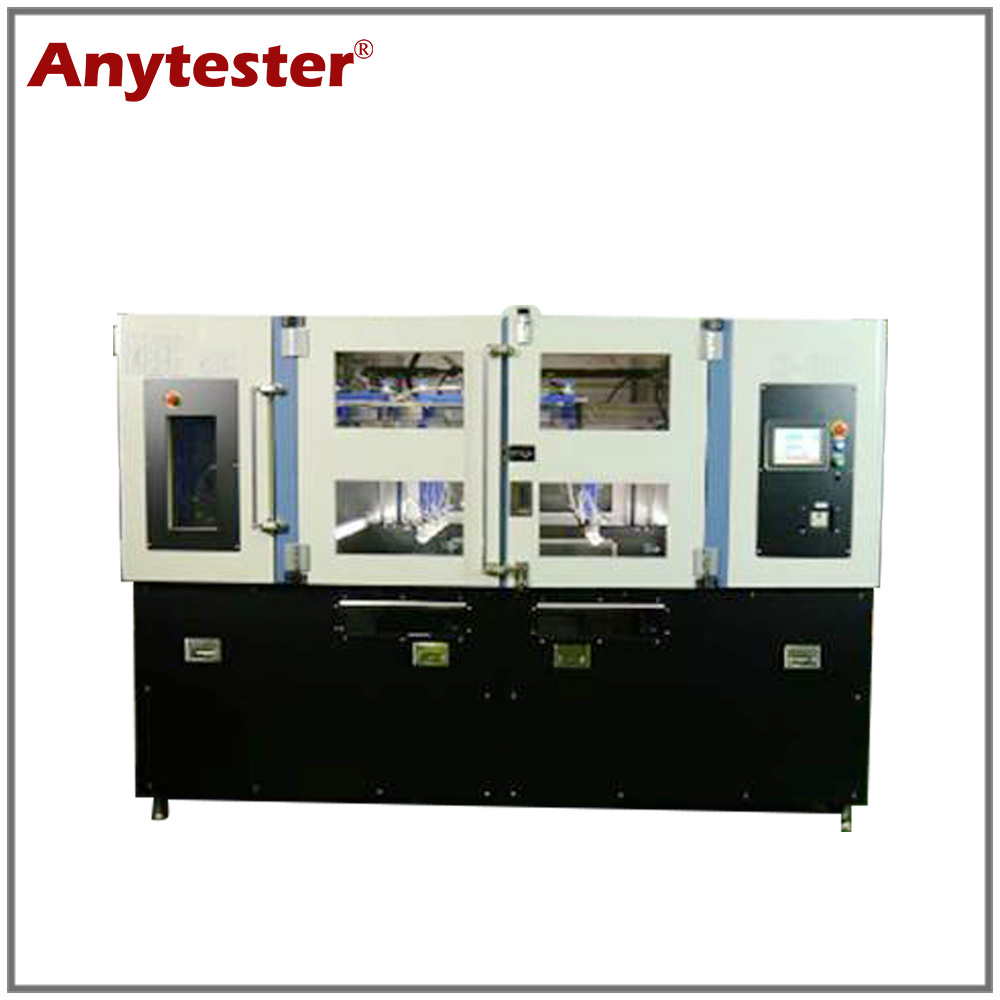

AT234E Large-Scale Electrostatic Spinning Machine

Features

1. With temperature and humidity controlling system;

2. Double-path flow pump;

3. Adjustable and digital display of high voltage

Technical Specification

Model	AT234E
Temperature controlling system	RT-80℃
Humidity controlling system	30%~70%
Flow controlling system	Double-path flow pump 10ml injector: 0.1~300ml/h 20ml injector: 0.1~400ml/h 30ml injector: 0.1~600ml/h
Voltage/current controlling system	High-voltage power source: 0~50KV, digit display
Nozzle structure	Single nozzle inner diameter: 0.1~1.6mm Coaxial nozzle inner diameter: 0.1~1.6mm Multi-nozzle system: inlayer inner diameter:=0.7mm Abreast nozzles with adjustable inner diameter
Nozzle movement	Single-axis, reciprocating constant speed movement Moveable distance: 150mm
Collecting method	Rotary drum size: D=75mm, 20mm, 5mm L=150mm Rotary speed: 20~300rpm (standard) 150~6000rpm (optional) Collecting dish: D=75mm, sharp edge or flat edge Collecting plate size: A4/B5/A5
Power supply	AC220V 50Hz, 5500W
Dimensions	5000×800×2000mm (W×D×H)
