Product Description

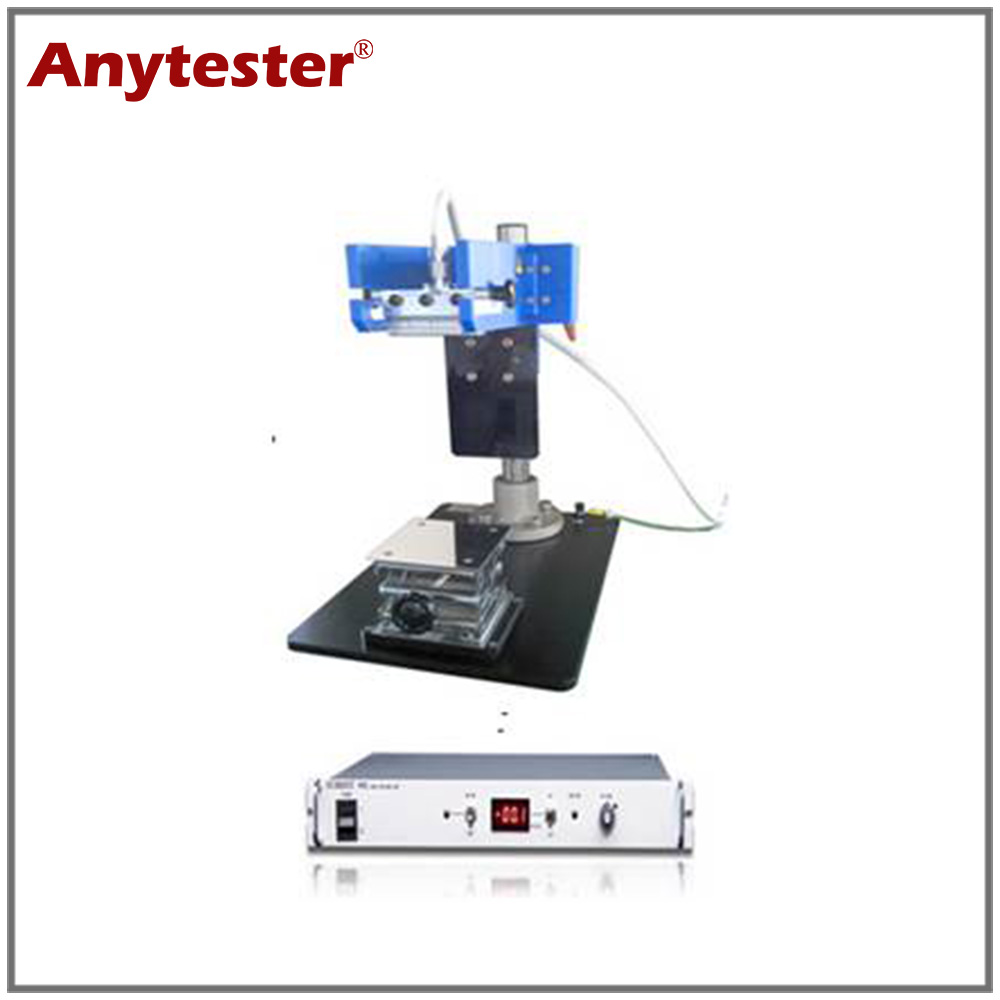

AT234A Electrostatic Spinning Machine is used to carry out pure spinning of single polymer, polymer blends and blends of polymer and inorganic material and compound spinning of polymers in the lab. Ideal instrument for teaching.
Features
1. Double-path flow pump;
2. Professional high-voltage power source, perfect combination with electrostatic spinning machine;
3. Adjustable distance between the spraying nozzle and collecting medium;
4. Optional heating device for injector;
5. Simple and portable for lab and small-scale tests.
Technical Specification
Model | AT234A | |
Temperature controlling system | RT-80℃ | |
Flow controlling system | 10ml injector: 0.1~300ml/h 20ml injector: 0.1~600ml/h | |
High-voltage power source | 0~50KV, pointer-type | |
Spraying nozzle inner diameter | 0.1~1.6mm | |
Distance between nozzle and collecting medium | 5~30cm, manually-adjustable | |
Collecting drum type | Spraying nozzle movement | Single-axis , reciprocating constant movement Moveable distance: 150mm Moving speed: 1~15mm/s |
Rotary speed | 150~6000rpm | |
Drum size | D=75mm，20mm，5mm L=150mm | |
Collecting plate type | Collecting plate size | Size: 210×297mm (A4 paper size) |
Transverse speed | 1~15mm/s | |
Longitudinal speed | 1~15mm/s | |
Power supply | AC220V 50Hz, 500W | |
Dimensions | 900×600×800mm | |
Weight | 50kg | |
