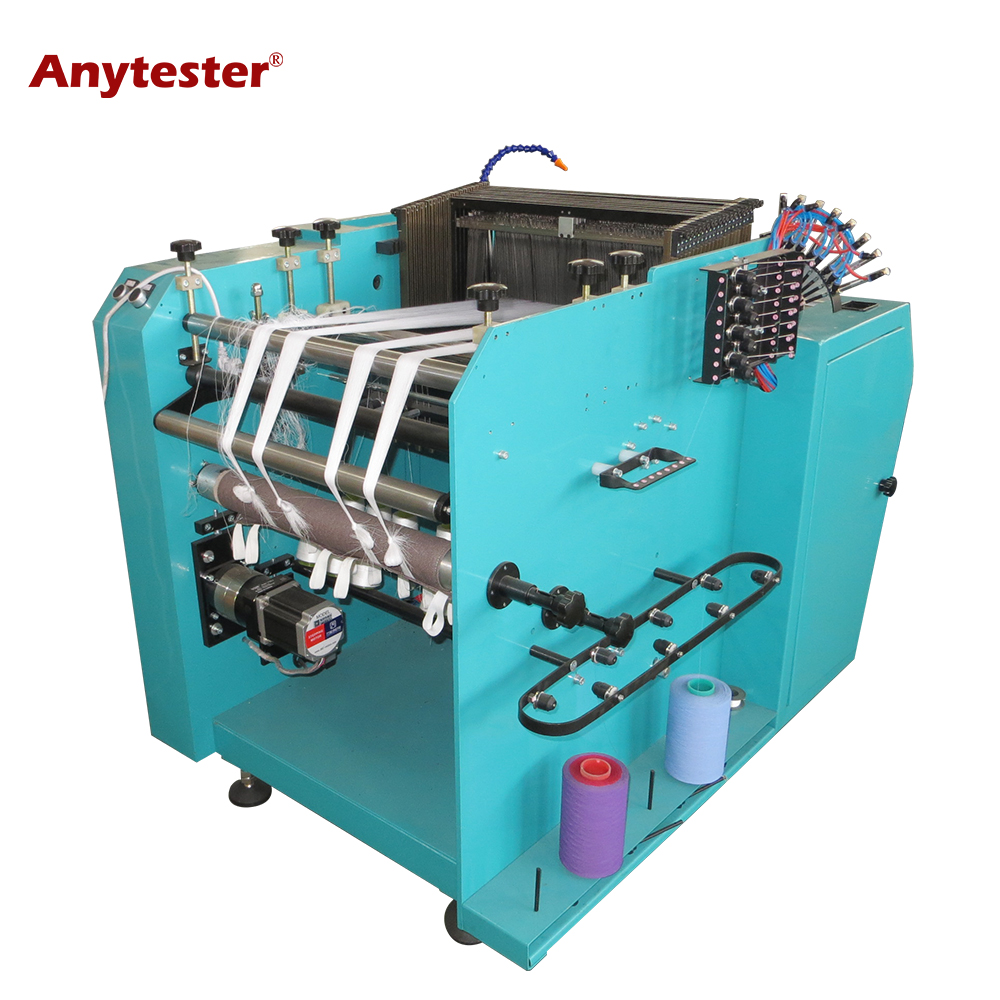

AT247 Automatic Air-jet Sample Loom 12inches

AT247 Automatic Air-jet Sample Loom is used for sample weaving of all kinds of fabrics, such as cotton, hair, jute, silk, chemical fiber, blending, etc. It consists of pneumatic shedding, air-jet weft insertion, mechanical let-off, mechanical beating-up and mechanical take-up. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc.
  • AT247
  • Anytester
Availability:

Product Description

AT247 Automatic Air-jet Sample Loom is used for sample weaving of all kinds of fabrics, such as cotton, hair, jute, silk, chemical fiber, blending, etc. It consists of pneumatic shedding, air-jet weft insertion, mechanical let-off, mechanical beating-up and mechanical take-up. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc.


Features

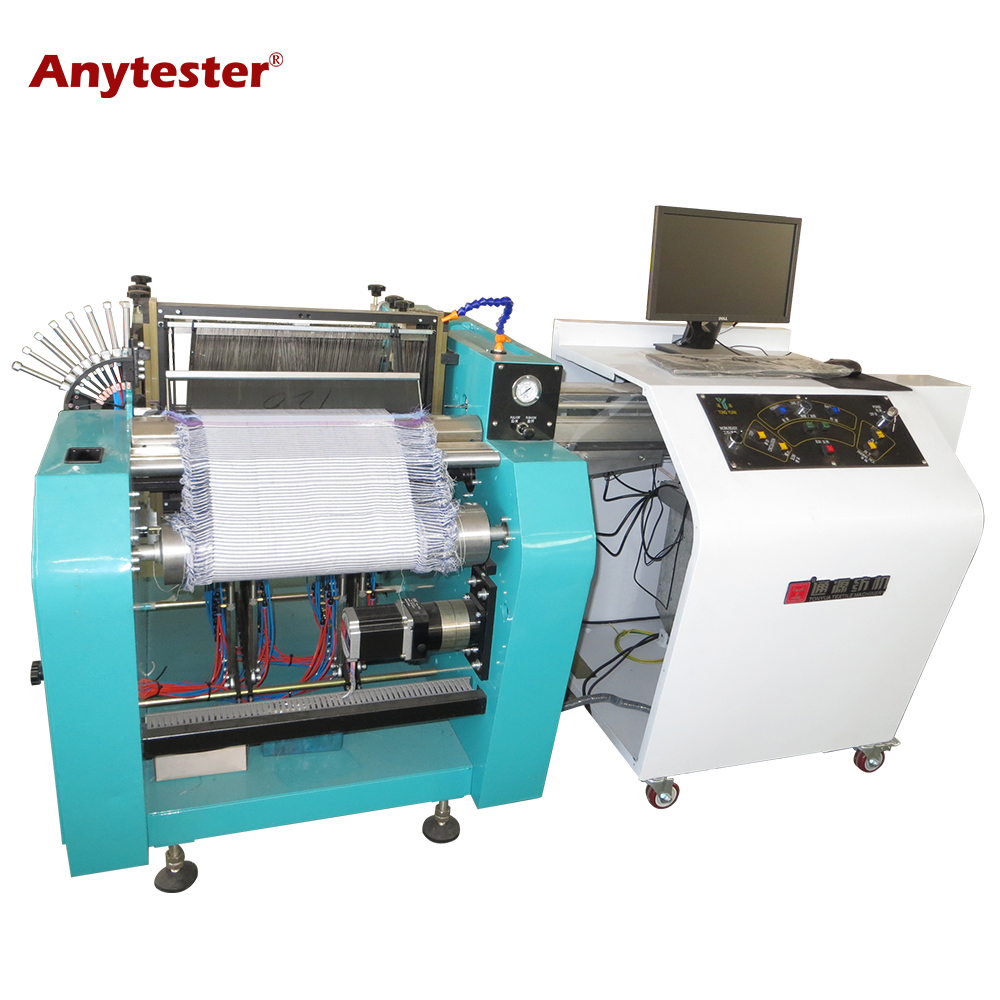

1. Consists of control part (computerized control platform) and mechanical part (loom);

2. Air jet weft insertion, suitable for various yarns, such as, cotton, terylene/cotton, wool chemical fiber and other fabrics;

3. Mechanical let-off, beating-up and take-up and pneumatic shedding;

4. Pneumatic Dobby shedding mechanism to avoid the disadvantage of easy to wear for traditional peg mechanical structure;

5. Heald frames up to 20pcs, easy to mount and dismount;

6. Professional software for designing or editing patterns;


Technical Specification

Model

AT247

Reed width

12inches (16, 20 and 24 inch, optional)

Yarn linear density range

5~500tex

Weft density

30~45weft/min, selectable

No. of heald frame

4~20

Color selection

1 color

Let-off

Active electronic control

Take-up

Motor control

Shedding

Dobby shedding, pneumatic control

Beating-up

Motor control

Air pressure

0.45~0.8Mpa

Air consumption

Max. 500L/min

Power

A220V 50Hz, single-phase

AC380V 50Hz, three-phase
