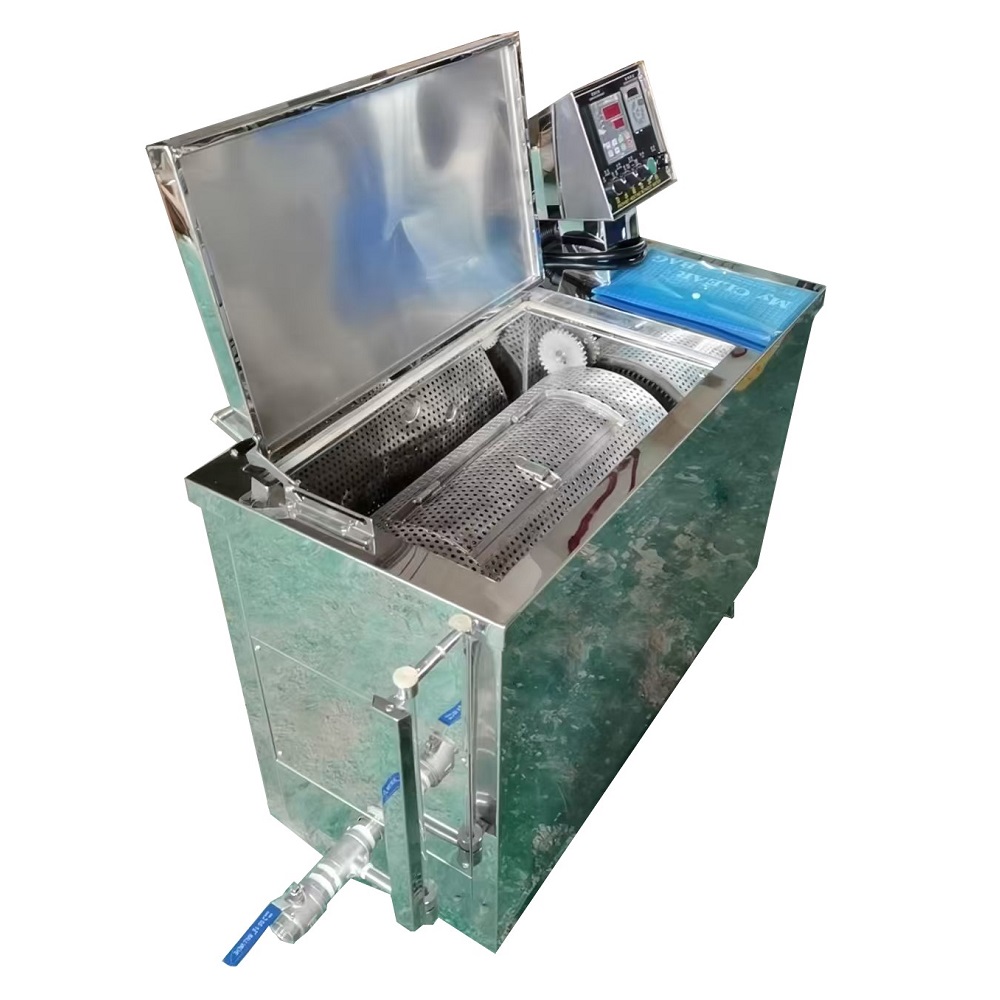

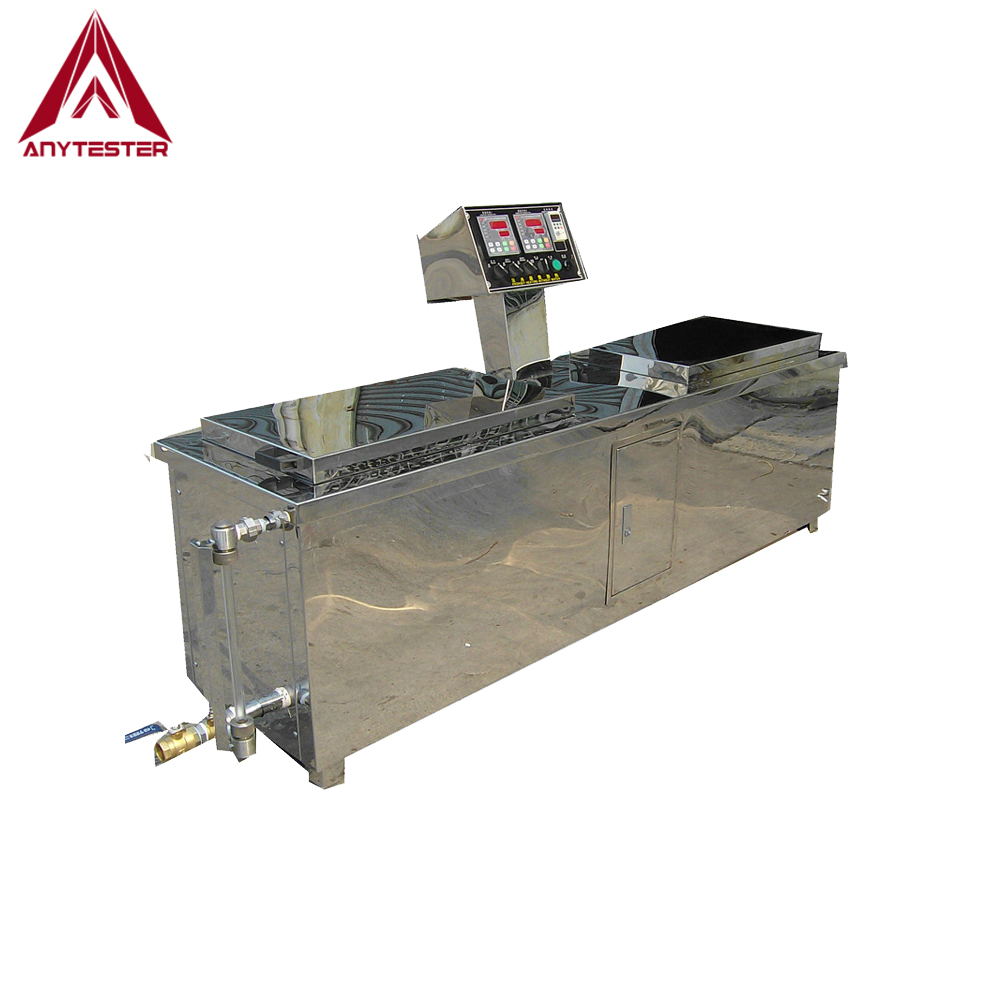

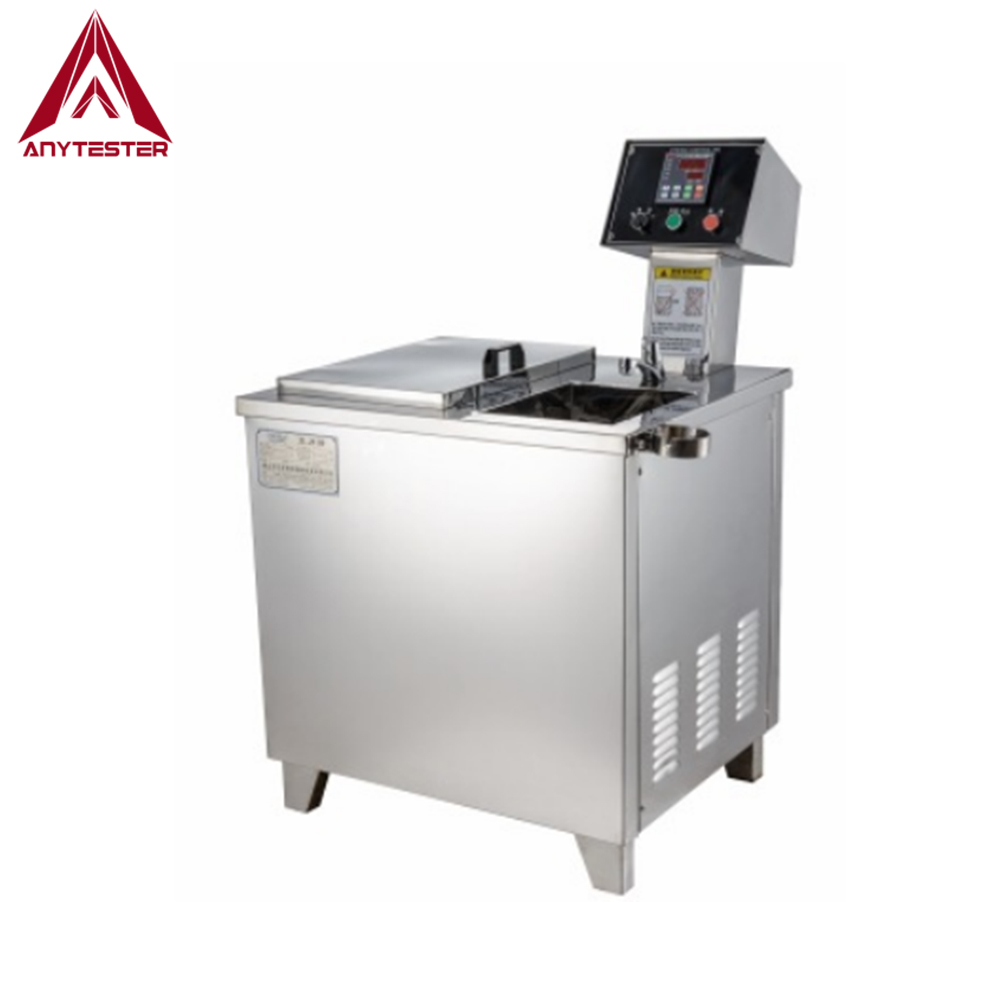

AT277 Sample Size Garment & Ribbon Dyeing Machine

AT277 Sample Size Garment & Ribbon Dyeing Machine is suitable for dyeing, finishing and washing of knitted products such as woolen sweater, nylon, acrylic, cotton and rayon.
  • AT277

  • Anytester

Availability:

Product Description

AT277 Sample Size Garment & Ribbon Dyeing Machine is suitable for dyeing, finishing and washing of knitted products such as woolen sweater, nylon, acrylic, cotton and rayon.

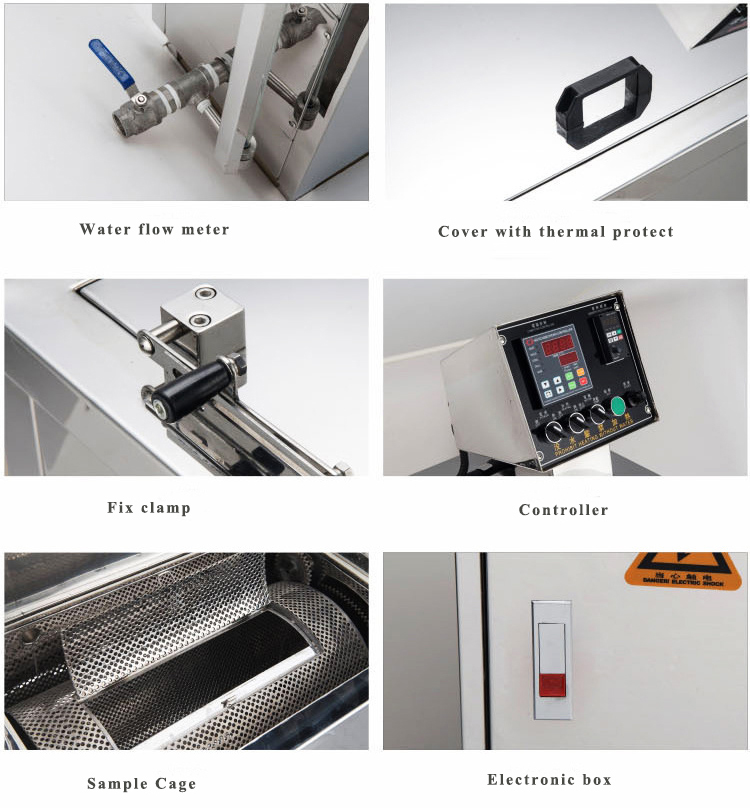

Product Structure

Equipped with new dyeing machine dedicated computer, precision of the heating system, accurate temperature control and time control, help to improve the working efficiency.


Application

001

Features

★ Microcomputer control heating temperature

★ Stainless steel exterior design, nice appearance

★ The precise inversion controller is used to automatically control the operation of positive and negative, so that the cylinder fabric can be uniformly turned to ensure uniform dyeing of the fabric.

★ The bottom of the cylinder is equipped with electric heating pipe, which is convenient and safe to operate.

★ The rotational speed is adjustable from 0-40 RPM.

★ Automatic control of the positive and negative turn.


Technical Specification

Model

AT277A

AT277A2

AT277B

AT277B2

AT277C

Cage size

Ф350×300

Ф350×600

Ф500×600

Number of working position

1

2

1

2

1

Liquid carrying capacity

13kg

13kg×2

26kg

26kg×2

50kg

Temperature control range

RT~99

Bath ratio

1:10-1:20

Heating mode

Electric heating

Heated medium

Water (recommended use of   distilled water)

Heating power

3.25KW

6.5KW

6.5KW

10.75KW

9.5KW

Speed

0~40rpm/min

Dimensions

850×500×1060

1600×500×1060

1300×500×1060

2200×500×1060

1200×680×1100

Power

AC380V 50Hz, three-phase
