AT293
Anytester
Product Description
AT293 Lab Sized Yarn Dyeing Machine is a mini dyeing machine used in lab to make a sample. It is suitable for dyeing sized yarn, jeans or fabric. It simulates the dyeing process on the sizing and dyeing site. Sized yarn passes the dye bath with temperature controller, via padder, deviation rectifying and manual tension frame, and then comes back to the dye bath again. Circulate the sized yarn for set time and then alarm at the end of dyeing.

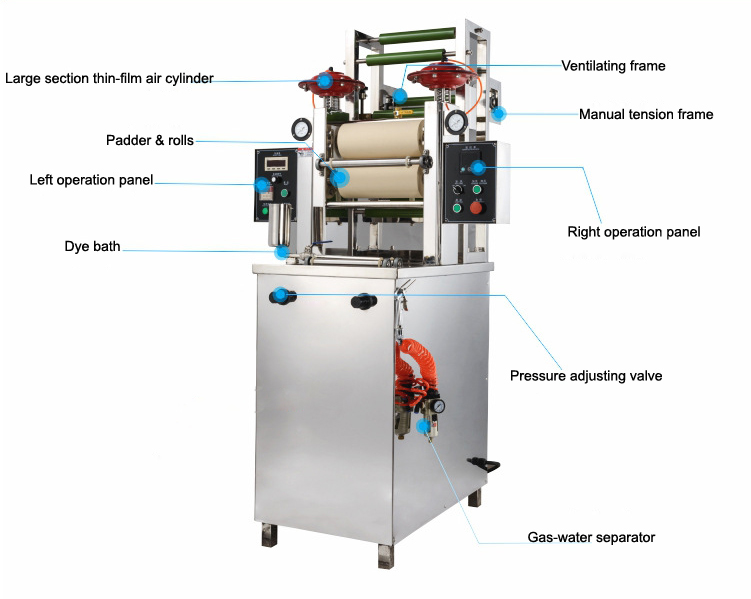

Product Structure
Application
Features
Technical Specification
Model | AT293 |
Dye bath volume | Max. 8L |
Feeding trough volume | Max. 500ml |
Heat power | 2Kw, automatic temperature control |

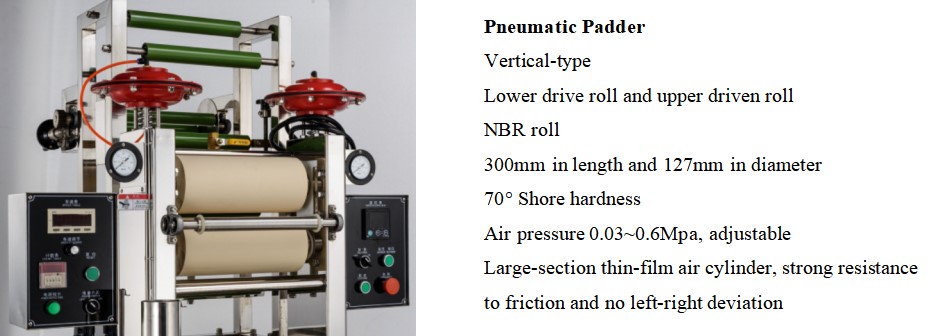

Padder | Type: Vertical Roll length: 300mm Roll diameter: 127mm Roll hardness: Shore 70° Roll material: NBR Air pressure: 0.03~0.6Mpa, adjustable Large-section thin-film air cylinder, strong resistance to friction, automatic restoration when out of power and no left-right deviation |
Driving power | 0.37Kw |
Machine speed | 0.4~4m/min, frequency control |
Fabric loop length required | 4.25m |

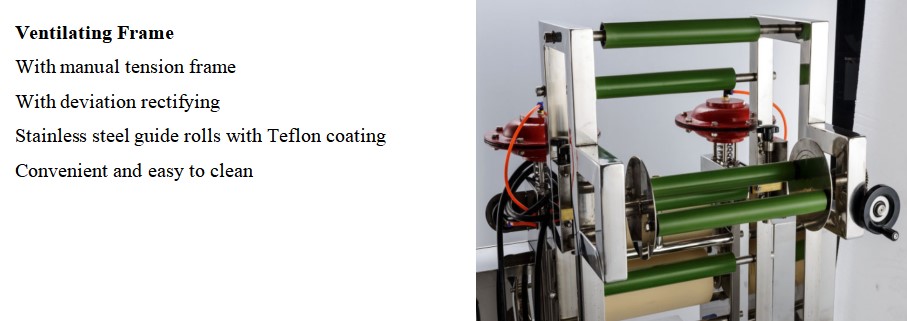

Guiding roll | Good quality stainless steel with Teflon coating |
Control display | Power display, speed display, display of counting, temperature display and alarm device |
Power supply | AC220V 50Hz, single-phase, 2.5Kw |
Dimensions | 920mm×1030mm×1750mm (W×D×H) |
Weight | 200kg |
