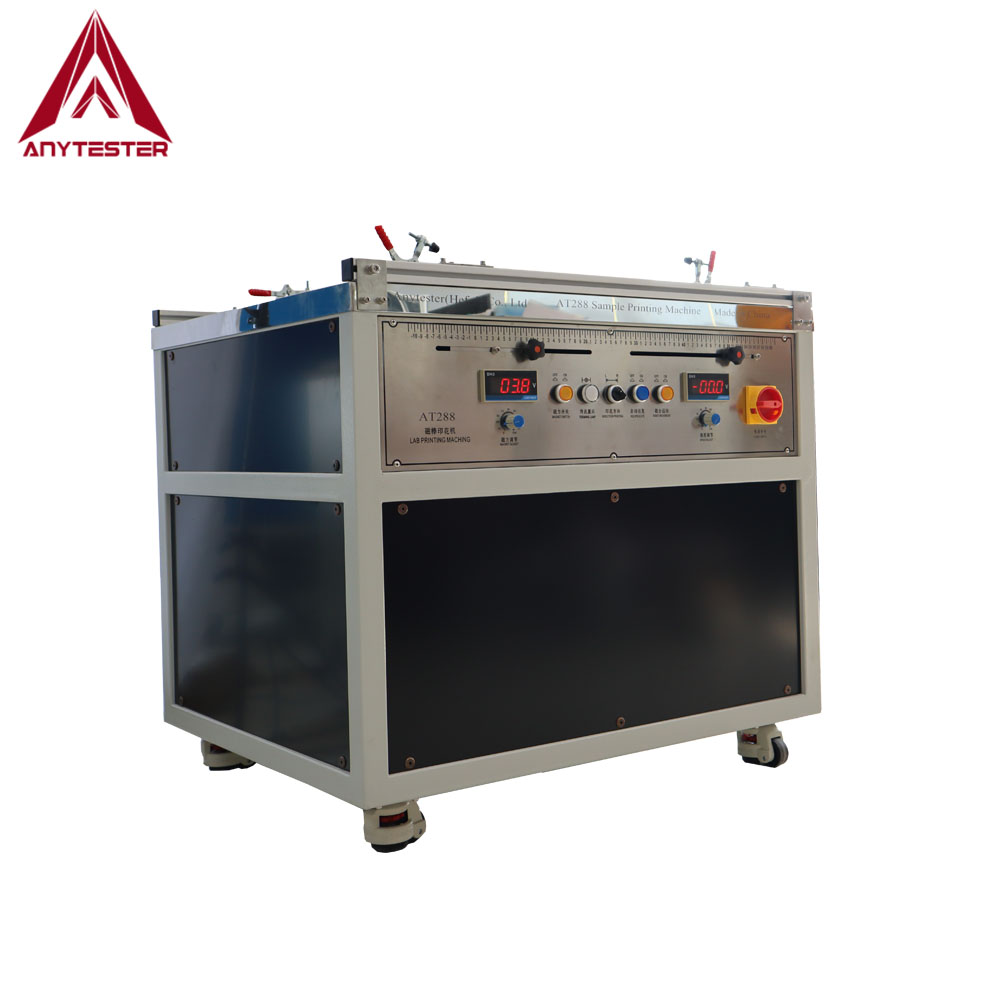

AT288 Electric Laboratory Printing Machine

AT288 Electric Laboratory Printing Machine (original model is HY0190) is magnetic printing machine that used for lab printing research.

  • AT288

  • Anytester

Availability:

Product Description

AT288 Electric Laboratory Printing Machine (original model is HY0190) is magnetic printing machine that used for lab printing research.


Features

★ Imported rubber for the coating table, high elasticity, more evenness printing

★ Different squeeze rollers selectable for different sample

★ Magnetic table is drive by high quality motor and ball screw

★ Stepless regulator to control the magnetic force, AC variable frequency speed control system control running speed

★ Floor type, no need desk and equipped with tool box.


Technical Specification

Model

AT288

Printing area

500*400mm

Screen frame size

640*480mm

Magnetic roller diameter

Φ10 and 20mm (standard) Φ15, 25 mm (optional)

Magnetic roller length

500mm

Travel space

200 ~ 500mm stepless adjustable

Printing speed

0.6 ~ 6m/min adjustable

Power supply

220V, 50Hz

Dimensions

900mm×900mm×1020mm

Weight

120kg
