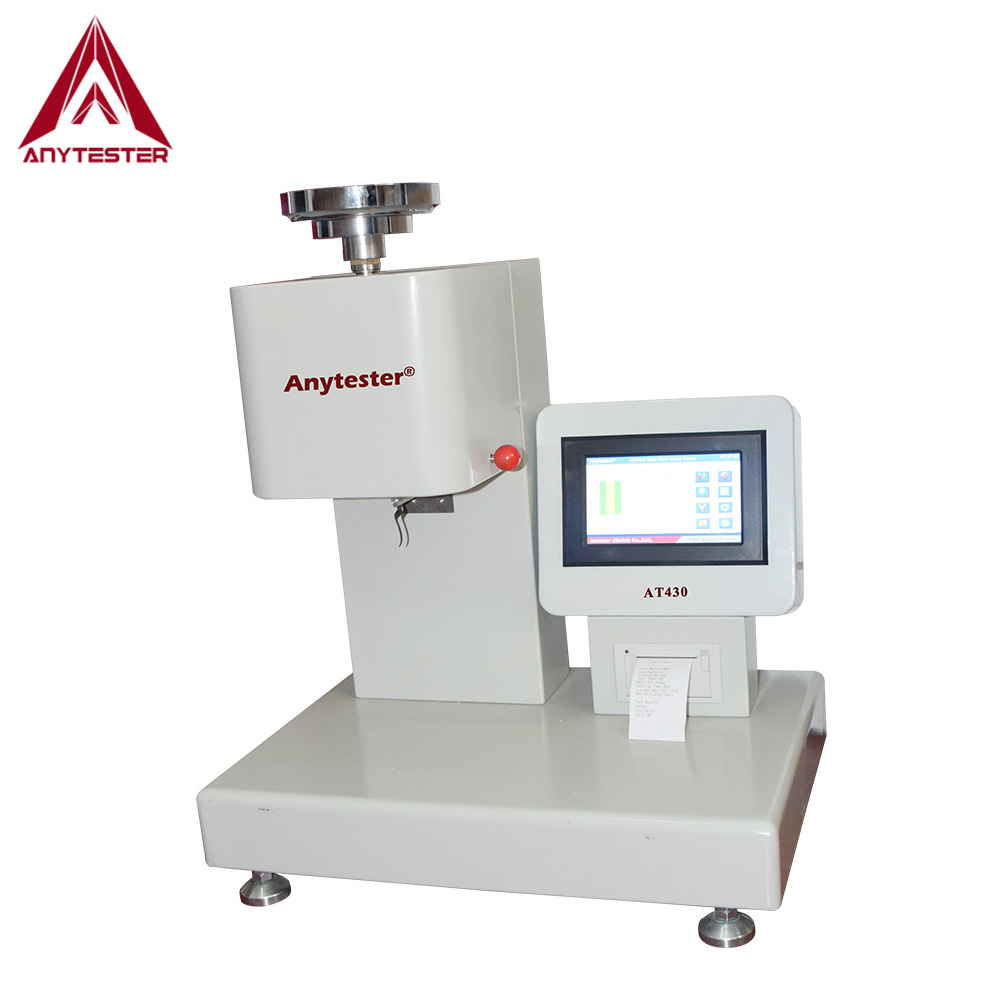

AT430D Melt Flow Index Tester MFR

AT430D Melt Flow Index Tester is used to measure the melt flow rate (MFR) of thermoplastic resin in quality control and research applications. It is suitable for PE, nylon, fluoroplastics and other engineering plastics which of higher melt temperature, and also suitable for PE, PP, ABS resin and other plastics which of lower melt temperature.

  • AT430D

  • Anytester

Availability:

Product Description

AT430D Melt Flow Index Tester is used to measure the melt flow rate (MFR) of thermoplastic resin in quality control and research applications. It is suitable for PE, nylon, fluoroplastics and other engineering plastics which of higher melt temperature, and also suitable for PE, PP, ABS resin and other plastics which of lower melt temperature.


Standards

ASTM D1238

ISO 1133-1

GB/T 3682-2000

JB/T 5456



Note: For more standards, please contact us!


Features

★ Chinese/English operate interface;

★ Simple structure, easy to operate, easy to maintain;

★ 7 inch Color touch screen control;

★ Professional software to control temperature automatically, automatically cutting material, real time display test curve, mini-printer to printout test data;

★ Can automatically calculate the melt flow rate (MFR) after inputting the mass value;

★ Can store recent 40 groups of test data.


Technical Specification

Model

AT430D

Temperature range

120~450

Temperature error

≤±0.2

Temperature resolution

0.1

Temperature recovery time

4 min

Display mode

Touch screen operation

Test method

MFR

Timing accuracy

0.1s

Cutting mode

Manual & automatic

Standard die

Tungsten carbide, Φ2.095±0.005mm

Height of standard die

8.000±0.020mm

Inner diameter of feed cylinder

Φ9.550±0.025mm

Diameter of piston

Φ9.475±0.015mm

Length of piston head

6.350±0.100mm

Power

AC220V, 50Hz, 450w
