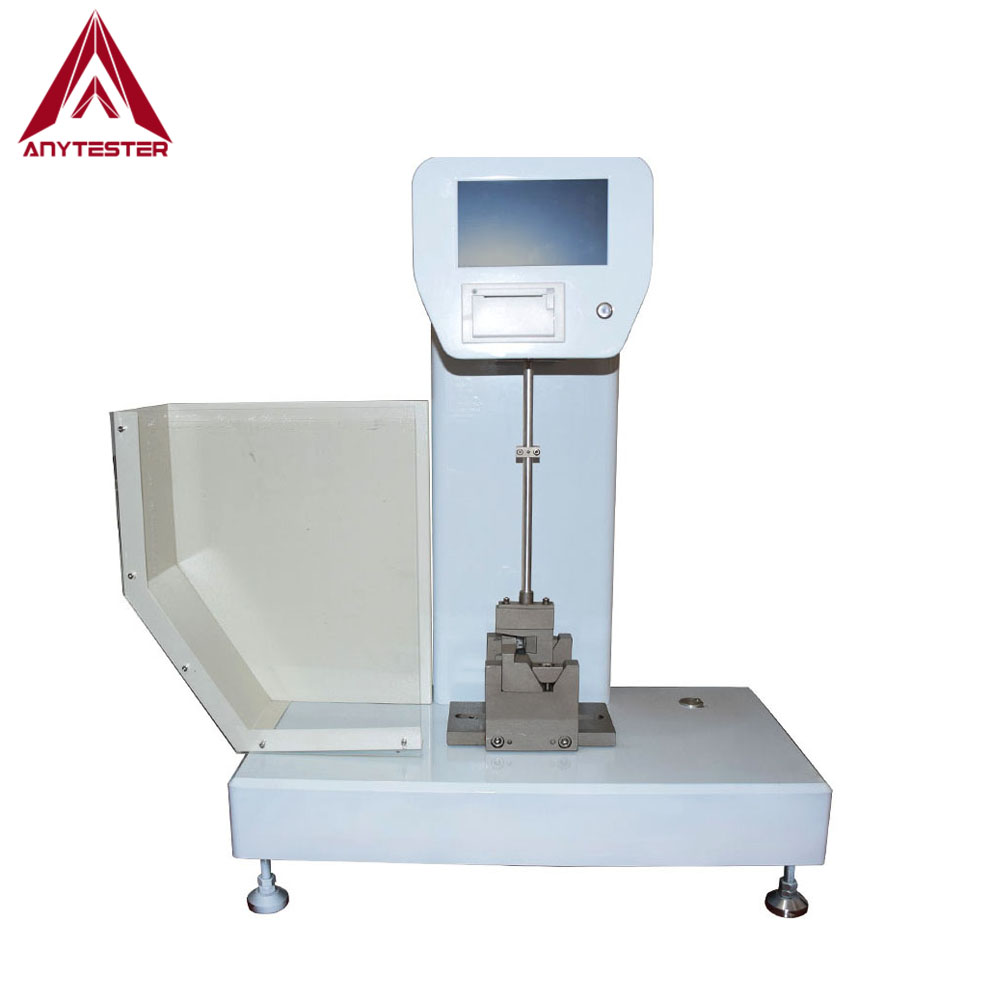

AT422D Series Digital Izod Impact Tester ASTM D256

AT422D Series Digital Izod Impact Tester is used to determine the impact toughness of non-metallic material such as rigid plastics, reinforced nylon, glass reinforced plastics, ceramics, cast stone, electrical insulating material, etc.

  • AT422D
  • Anytester
Availability:

Product Description

AT422D Series Digital Izod Impact Tester is used to determine the impact toughness of non-metallic material such as rigid plastics, reinforced nylon, glass reinforced plastics, ceramics, cast stone, electrical insulating material, etc.


Standards

ASTM D256

ISO 180, 20126

GB/T 1843

JB/T 8761



Note: For more standards, please contact us!


Features

★ Digital type, PLC touch screen control and display;

★ Automatically calculate the test result, with mini-printer to printout test result;

★ Can be connected to PC to edit and print test data, also it can be connected to Notch Depth Measuring Device to transmit the accurate sample size to the machine;

★ Automatically correct the energy loss caused by friction and wind resistance, no need to manually calculate and correct;

★ Simple structure, easy to operate;

★ Fast to test, accurate and reliable;

★ Protective cover optional.


Technical Specification

Model

AT422DA

AT422DB

Impact velocity

3.5m/s

Impact energy

2.75J, 5.5J

11J, 22J

Impact center distance

335mm

Pendulum angle

15

Distance between striking edge and top surface of jaw



22.0mm±0.2mm



Corner radius of striking edge

R=0.8mm±0.2mm

Power supply

AC220V, 50Hz

Dimensions

700×350×850mm

Weight

120kg


Sample type

Type I is the best for test

Type

Length (mm)

Width (mm)

Thickness (mm)

I

80±2

10.0±0.2

4

II

63.5±2

12.7±0.2

12.7±0.2

III

63.5±2

12.7±0.2

6.4±0.2

IV

63.5±2

12.7±0.2

3.2±0.2
