Product Description

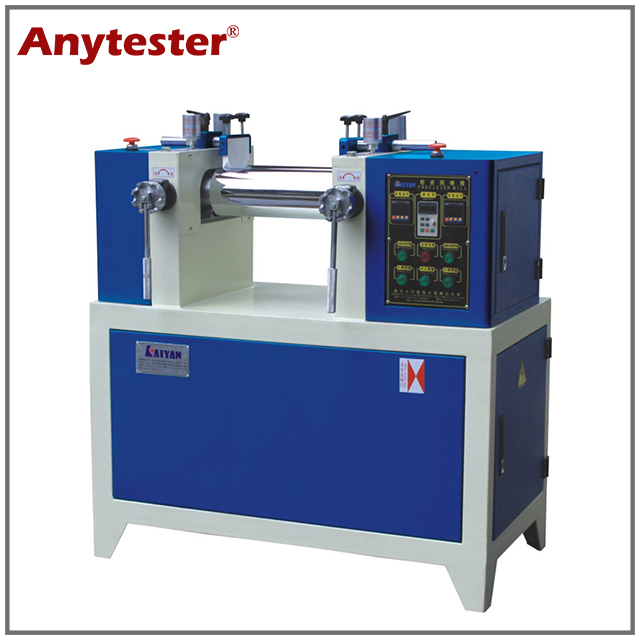

HY3870 Series Two Roll Mill is used to mix, scatter and plasticize materials for color matching, quality control and research. It is suitable for masterbatch, PVC, plastic, pigment dispersion on plastics, etc.
Features
★ Two heating modes optional: electric heating or oil heating, with or without water cooling
★ The roll size can be customized according to requirement
★ Digital display roll gap , 0~5mm adjustable
★ The speed of two rolls can be fixed with a constant friction ratio, or be adjustable with a constant friction ratio, or be adjustable with variable friction ratio
★ With multiple emergency stop device, more safe
★ Available with safety hood to prevent the operator hands stretch into the two rolls (optional)
Technical Specification
HY3871 | HY3872 | HY3873 | |
Capacity | 1~3kg | ||
Roll size | Ø150×350mm or customized | ||
Temperature range | RT-300℃ | Room temperature | |
Heating mode | Electric | Oil |
|
Cooling mode |
|
| Water |
Roll gap | 0~5mm or customized | ||
Speed of front roll | 24rpm or 0~30rpm or customized | ||
Friction ratio | 1:1.25 or adjustable or customized | ||
Power supply | 3phase, AC380V, 50Hz | ||
Dimensions (mm) | 1100×700×1600 | ||
Weight (kg) | 350 | ||
Standard Configuration
No. | Item | Quantity |
1. | Main machine | 1set |
2. | Tray | 1pc |
3. | Power cord | 1pc |
4. | Quality certificate | 1pc |
5. | User manual | 1pc |
6. | Packing list | 1pc |
