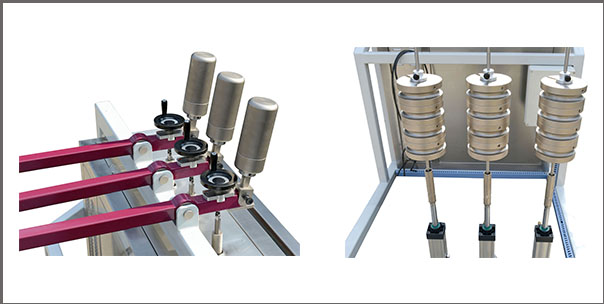

AT476 Pipes & Fittings Pull-Out Resistance Tester

AT476 Pipes & Fittings Pull-out Resistance Tester is used to determine the resistance to pull-out of pipes and fittings under a constant load.
  • AT476

  • Anytester

Availability:

Application

AT476 Pipes & Fittings Pull-out Resistance Tester is used to determine the resistance to pull-out of pipes and fittings under a constant load.


Standards

ISO 3501

DIN 16833, 16834, 4271

GB/T 15820, 19473.3, 18991.1

CJ/T 175



Note: This Pipes & Fittings Pull-out Resistance Tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.


Features

It adopts color man-machine interface and PLC control, high reliability;

Wide temperature range, can be suitable for special pipes;

It adopts servo motor control system;

Independent control of 3 working positions;


Technical Specification

Model

AT476

Pipes & Fittings Pull-Out Resistance Tester

Max. Load

2000kg

Temperature range

RT~110

Working position

3pcs

Max. Pipe diameter

Φ63mm

Max. Pipe length

800mm

Beam span

400mm

Power supply

AC220V, 50Hz, 3.0kw


Standard Configuration

No.

Item

Quantity

1.

Main machine

1set

2.

Air bath constant temp. Chamber

1pc

3.

HMI+PLC

3pcs each

4.

Temperature control unit

1pc

5.

Upper and lower clamp adapter

6pcs

6.

S type load cell

3pcs

7.

Stirring fan

1pc

8.

Stainless steel heater (1.5kw)

1pc

9.

Quality certificate

1 copy

10.

Packing list

1 copy

11.

User manual

1 copy
