Product Description

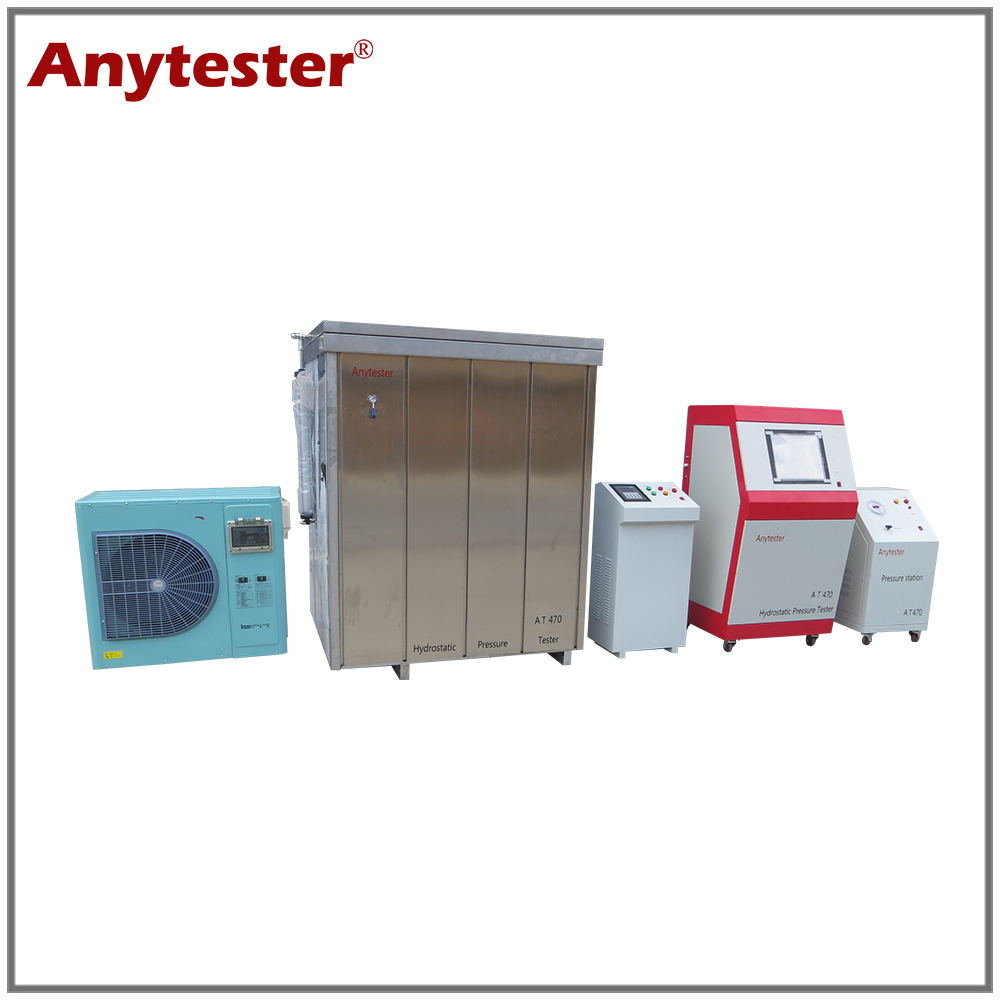

AT470 Plastic Pipe Hydrostatic Pressure Tester is mainly used to determine time-to-failure of plastic pipe under constant internal pressure and also the resistance to hydrostatic pressure in a short time period.
Standards
ASTM D1598, 1599 | ASTM F1335 | ISO 1167, ISO 9080, ISO 1756 |
GB/T 15560, 18252, 6111 | CJ/T 108 |
Note: This Hydrostatic Pressure Tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.
Features
★ The main machine consists of pressure control unit, magnetic valve, sensor, pressure workstation, etc.
★ The number of working position can be customized according to requirement, that is to say, the interface of pressure can be customized such as 3, 6 or 10

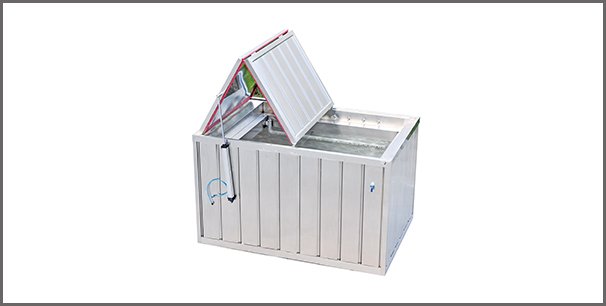

★ The dimension of test tank needed bases on the dimension of test pipes

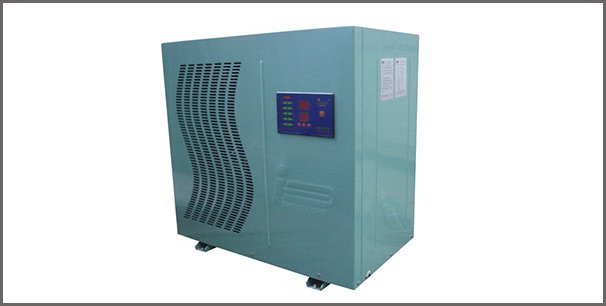

★ Refrigerating system optional. The test tank can be connected with refrigerating machine to perform low-temperature test, thus test temperature can be RT-95℃ or 15~95℃.

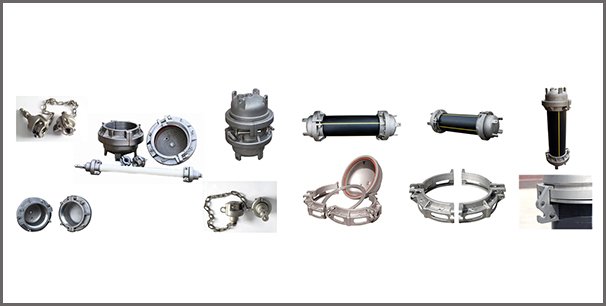

★ Stainless end closures of different diameter can be selected according to customers’ requirement, the material is stainless steel or carbon steel.
Technical Specification
AT470 | ||
Pipe diameter range | Φ16~Φ1600mm | |
Working position | 6 positions (1~50 positions can be customized) | |
Operation mode | Operation panel/PC control | |
Pressure range | 0.2~10MPa (or customized) | |
Pressure resolution | 0.001MPa | |
Pressure control accuracy | -1%~+2% | |
Measuring range | 5%~100% F.S. | |
Timing range | 1s~10000h | |
Timing accuracy | ±0.1% | |
Display resolution | 1s | |
Min. Time setting unit | min | |
Temperature control system | RT-95℃ (15~95℃ with refrigerating system) | |
Temperature control accuracy | ±0.5℃ | |
Main body material | 304# stainless steel | |
Power supply | Pressure control main machine | AC220V, 50Hz |
Pressure workstation | 3phase, AC380V, 50Hz | |
Constant temperature tank | 3phase, AC380V, 50Hz | |
Standard Configuration
No. | Item | Quantity |
1. | Main machine | 1set |
2. | Pressure workstation | 1 set |
3. | End closures | 1 set |
4. | Magnetic valve | 1 set |
5. | Pressure sensor | 1 set |
6. | Connect wire | 1 set |
7. | Quality certificate | 1 copy |
8. | Packing list | 1 copy |
9. | User manual | 1 copy |
