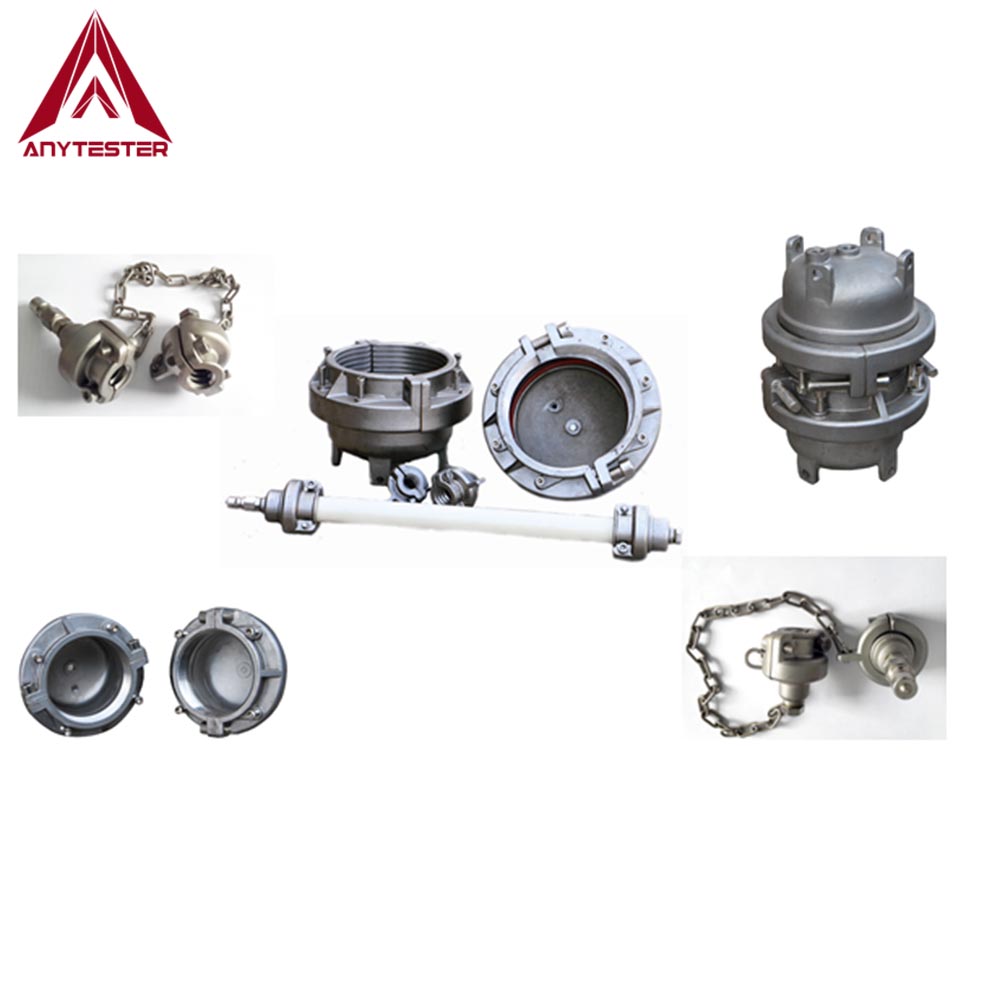

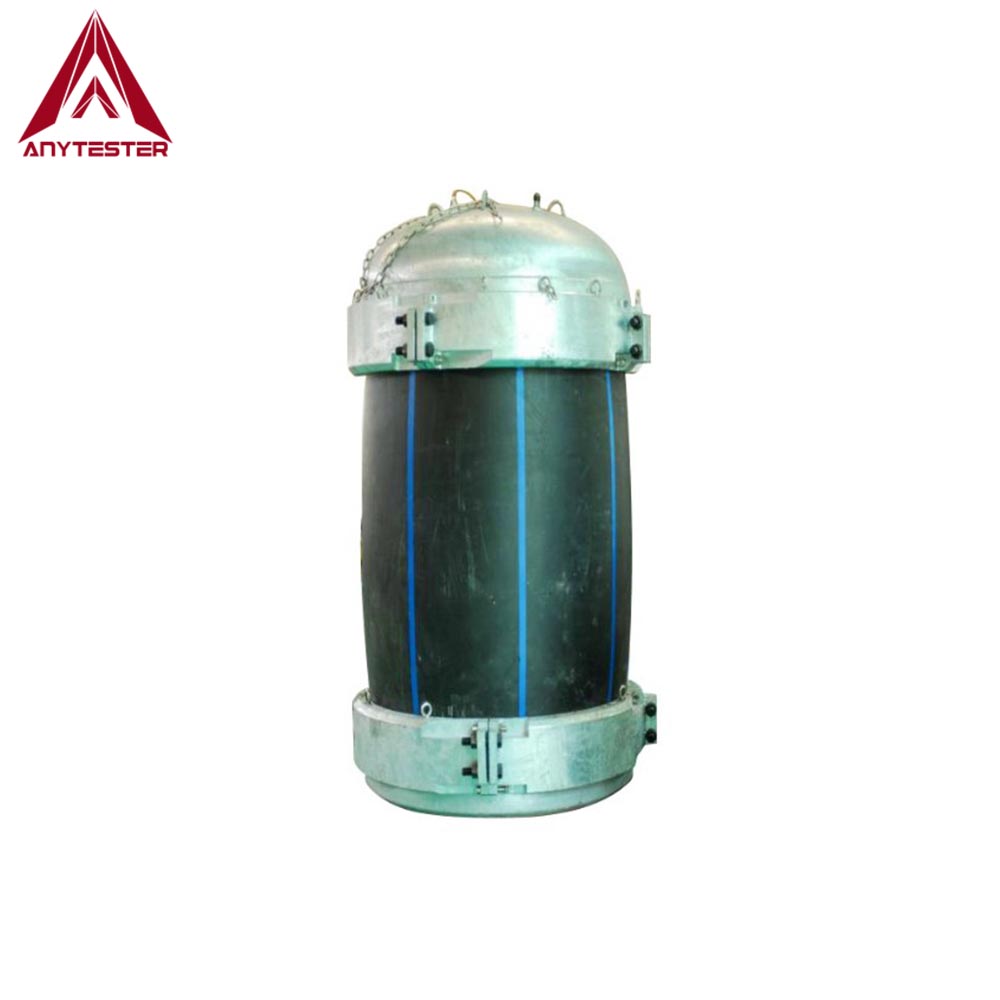

This End Cap is used to seal pipes which will run test for hydro-static pressure tester
Features
★ Different diameter can be selected according to customers’ requirement
★ DN10 ~ DN800 end cap adopt casting method and DN900 ~ DN1600 adopt machinery method
★ Modular structure design, easy to operate and no need special tool, and also if any parts broken, it can be replaced easy.
★ Oval sharp design to protect the water tank from impact.
★ It can match with most supplier’s water tank and hydrostatic pressure testing machine

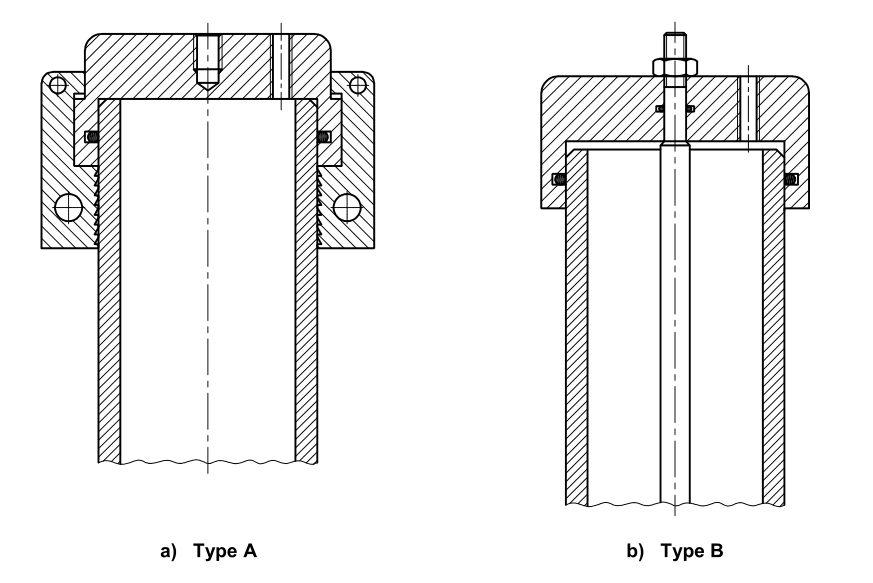

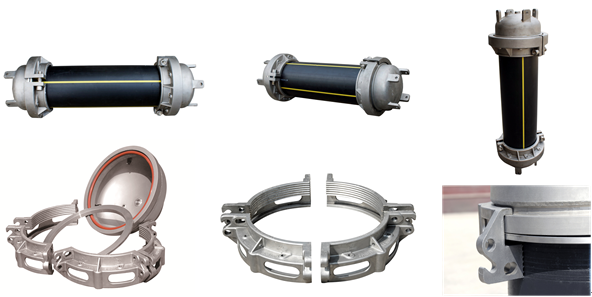

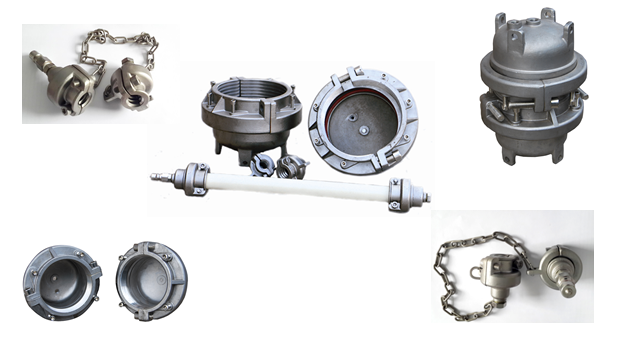

★ Two type for selection
Specification
End cap | |||
Specification | D10~D1600 | ||
Structure | Pan structure | ||
Sealing ring | O-ring | ||
Conversion connector | PT1/4, internal thread, stainless steel material | ||
End closures connector | M12*1.25, internal thread | ||
Pressure range | D16~D110mm | 0~10MPa (20MPa max. For D16/20/25 ) | |
Φ125~Φ630mm | 0~5MPa | ||
Material | 304 Stainless steel, 201 stainless steel, carbon steel | ||
End Cap Wall thickness | DN10 ~ DN355 | 6mm | |
DN400 ~ DN710 | 8mm | ||
DN800 ~ DN1600 | 10mm | ||
DN Size (mm) | Max. Outside (mm) | Seal Length (mm) | O ring (mm) | Single end cap weight (kg) | Total length with pipe (mm) | Standard pressure (MPa) | Max. Pressure (MPa) |
10 | 33 | 30 | Φ10*3.1 | 0.4 | 300 | 12 | 20 |
16 | 33 | 30 | Φ16*3.1 | 0.4 | 350 | 12 | 20 |
18 | 36 | 30 | Φ18*3.55 | 0.4 | 350 | 12 | 20 |
20 | 38 | 40 | Φ30*3.55 | 0.5 | 35 | 12 | 20 |
25 | 43 | 40 | Φ25*3.55 | 0.5 | 35 | 12 | 20 |
32 | 50 | 40 | Φ32*3.55 | 0.7 | 460 | 10 | 14 |
40 | 77 | 40 | Φ40*3.55 | 0.76 | 460 | 10 | 14 |
50 | 87 | 43 | Φ50*3.55 | 0.9 | 475 | 10 | 14 |
63 | 100 | 45 | Φ63*3.55 | 1.1 | 500 | 10 | 14 |
75 | 125 | 52 | Φ75*5.3 | 2.2 | 550 | 10 | 14 |
90 | 145 | 60 | Φ90*5.3 | 3.3 | 580 | 10 | 14 |
110 | 172 | 68 | Φ110*5.3 | 5.0 | 600 | 8 | 11 |
125 | 190 | 78 | Φ125*5.3 | 7.1 | 720 | 8 | 11 |
140 | 212 | 80 | Φ140*7 | 9 | 780 | 8 | 11 |
160 | 236 | 97 | Φ160*8 | 11 | 860 | 8 | 11 |
180 | 256 | 98 | Φ180*8 | 14.7 | 935 | 8 | 11 |
200 | 283 | 105 | Φ200*10 | 17 | 960 | 8 | 11 |
250 | 410 | 130 | Φ250*12 | 27 | 1230 | 6 | 9 |
315 | 480 | 153 | Φ315*12 | 38 | 1560 | 6 | 9 |
355 | 545 | 170 | Φ355*16 | 45 | 1620 | 5 | 8 |
400 | 600 | 175 | Φ400*16 | 50 | 1650 | 5 | 8 |
450 | 695 | 175 | Φ450*16 | 90 | 1680 | 5 | 8 |
500 | 764 | 215 | Φ500*20 | 95 | 1700 | 5 | 8 |
560 | 765 | 215 | Φ560*20 | 130 | 1710 | 5 | 8 |
630 | 830 | 220 | Φ630*20 | 150 | 1820 | 5 | 8 |
710 | 940 | 200 | Φ710*25 | 170 | 1940 | 4 | 6 |
800 | 1080 | 250 | Φ800*25 | 199 | 2150 | 3 | 4 |
900 | 1180 | 255 | Φ900*28 | 243 | 2200 | 1.5 | 2.5 |
1000 | 1280 | 260 | Φ1000*28 | 273 | 2300 | 1.5 | 2.0 |
1200 | 1500 | 260 | Φ1200*30 | 313 | 2408 | 1.5 | 2.0 |
1600 | 2200 | 300 | Φ1600*30 | 476 | 2480 | 1.2 | 1.8 |
