HY0981
Anytester
Product Description

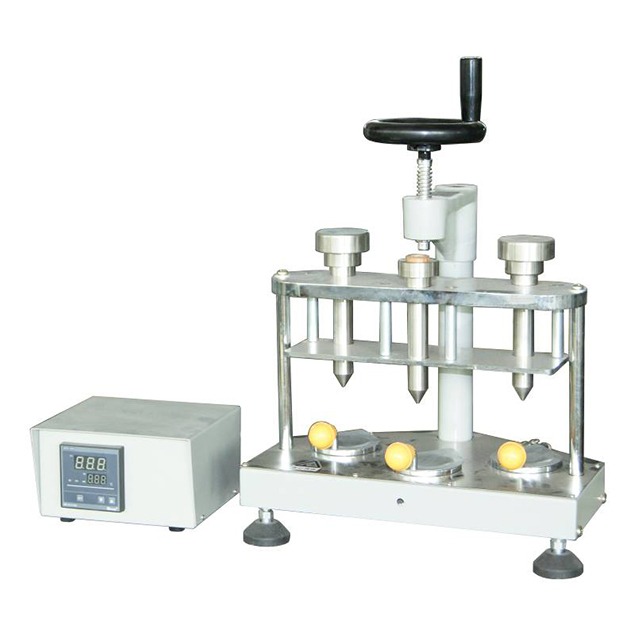

HY0981 Rapid Oil Extraction Apparatus is used to determine the oil content of wool or synthetic samples by solvent percolation and evaporation. It is suitable for fiber, yarn or fabric.
Standards
GB/T6504, 6977 | FZ/T 20002 |
Note: This Rapid Oil Extraction Apparatus can conform to but not limit to all the standards above, for more standards conformance, please contact us.
Features
★ Available with 1 or 3 extraction units
★ Easy and fast to operate, it takes only 45min~60min per test
Technical Specification
HY0981-1 Rapid Oil Extration Apparatus | HY0981-3 Rapid Oil Extration Apparatus | |
Temperature range | 60~220℃ | |
Sample quantity | 2g | 2g×3 |
Quantity of extraction solvent | 20ml | 20ml×3 |
Rated power | 300w | |
Suitable extraction solvent | Petroleum ether, diethyl ether, dichloromethane, etc. | |
Power supply | AC220V 50Hz | |
Dimensions | 190*250*410mm | 360*260*540mm |
Weight | 15kg | 23kg |
Standard Configuration
No. | Item | Quantity |
1. | Main machine | 1set |
2. | Tube | 1pc or 3pcs |
3. | Weight | 1pc or 3pcs |
4. | Hook | 1pc |
5. | Dish | 1pc or 3pcs |
6. | Packing list | 1pc |
7. | Qualified certificate | 1pc |
8. | User manual | 1 copy |
