HY-1A
Anytester
Product Description

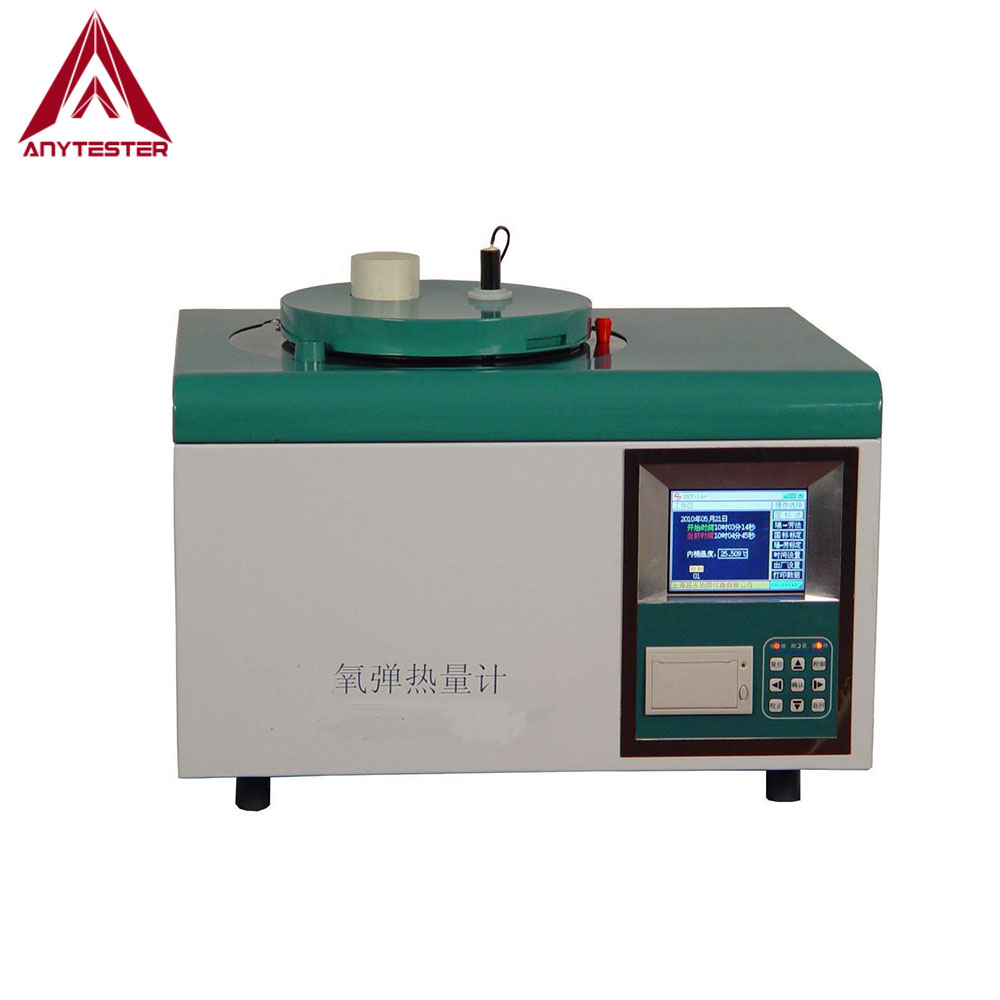

HY-1A Series Oxygen Bomb Calorimeter is a digital Display Oxygen Bomb Calorimeter that can be used to test the heat of solid and liquid, such as coal, coke, oil and alcohol etc.
Feature
★ It adopts a high precision sensor. It is much more accurate and reliable
★The instrument adopts technology of single chip machine, LED screen, high accuracy temperature sensor and, high performance A/D conversion device. It is a highly intelligent instrument (HY-1A+ and HY-1C)
★ It is with integrated structure, so it is compact and easy to be operated
★ The stirring motor has no noise
★ Can make determination automatically without manual control, and it can record and save all test data automatically
★ Equipped with test software, can connect to computer. It has function of man-machine conversation, user-friendly interface, and operation convenience (HY-1C)
★It past anti-shake test, so it can be transported for a long distance safely
Technical Specification
Model | HY-1A, HY-1A+, HY-1C |
Mean value of heat capacity | 15 kJ/K |
Measurement accuracy for heat value | ≤0.2% |
Endured pressure of oxygen bomb | 20 Mpa |
Test pressure in oxygen bomb | 3 MPa |
Temperature controlling range | 10°C~35°C |
Temperature resolution | 0.001 °C |
Temperature saved | 31 pieces |
Ambient temperature | 20°C±5°C |
Heat capacity | 14000 J/K~15000 J/K (HY-1C) |
Resolution | 0.001 K (HY-1C) |
Measurement accuracy | ± 60J/g (HY-1C) |
Relative humidity | ≤85% |
Power supply | AC 220±10%, 50 Hz, 150W |
Dimension | 400×400×600mm |
Weight | 18Kg |
