HY0401 Martindale Abrasion and Pilling Tester is used to determine the abrasion and pilling resistance of all kinds of textile by Martindale method. The circular test specimens are rubbed against the friction surface comprising known abradents at a defined force in the form of a Lissajous figure.
HY0401
Anytester
Availability: | |
---|---|
Product Description
HY0401-4 Martindale Abrasion and Pilling Tester is used to determine the abrasion and pilling resistance of all kinds of textile by Martindale method. The circular test specimens are rubbed against the friction surface comprising known abradents at a defined force in the form of a Lissajous figure.
Standards
ASTM D4966, D 4970, D 3866 | ISO 12945-2, ISO 12947.1, ISO 17076-2, ISO 26082-1 | BS 5690, BS3424 |
DIN 53863, DIN 53865 | JIS L1096 | GB/T4802.2, GB/T21196 |
FZ/T20020 | IWS Tm196/ TM112 |
Features
★ Every working positions to test specimens at the same time;
★ Microcomputer control, large color touch screen operation;
★ With two test method, small and large standard Lissajous curve, small Lissajous mode for pilling test, large Lissajous mode for abrasion test;
★ Load pieces and key components made of stainless steel, nice and durable;
★ Guide plate made of special aluminum alloy to ensure long time operation without deformation;
★ Can preset several running program and several counting mode (increment and decrement)
★ Independent cumulative count for each working position;
Technical Specification
Model | HY0401 | |
Working position | 4, 6, 8,9 or customized | |
Specimen diameter | Ф140mm (for pilling test) Ф38mm (for abrasion test) | |
Abrading table diameter | Ф120mm | |
Effective diameter of abrader | A type(1.96N): Φ28.65±0.05mm | |
B type(1.52N): Φ90 ±0.10mm | ||

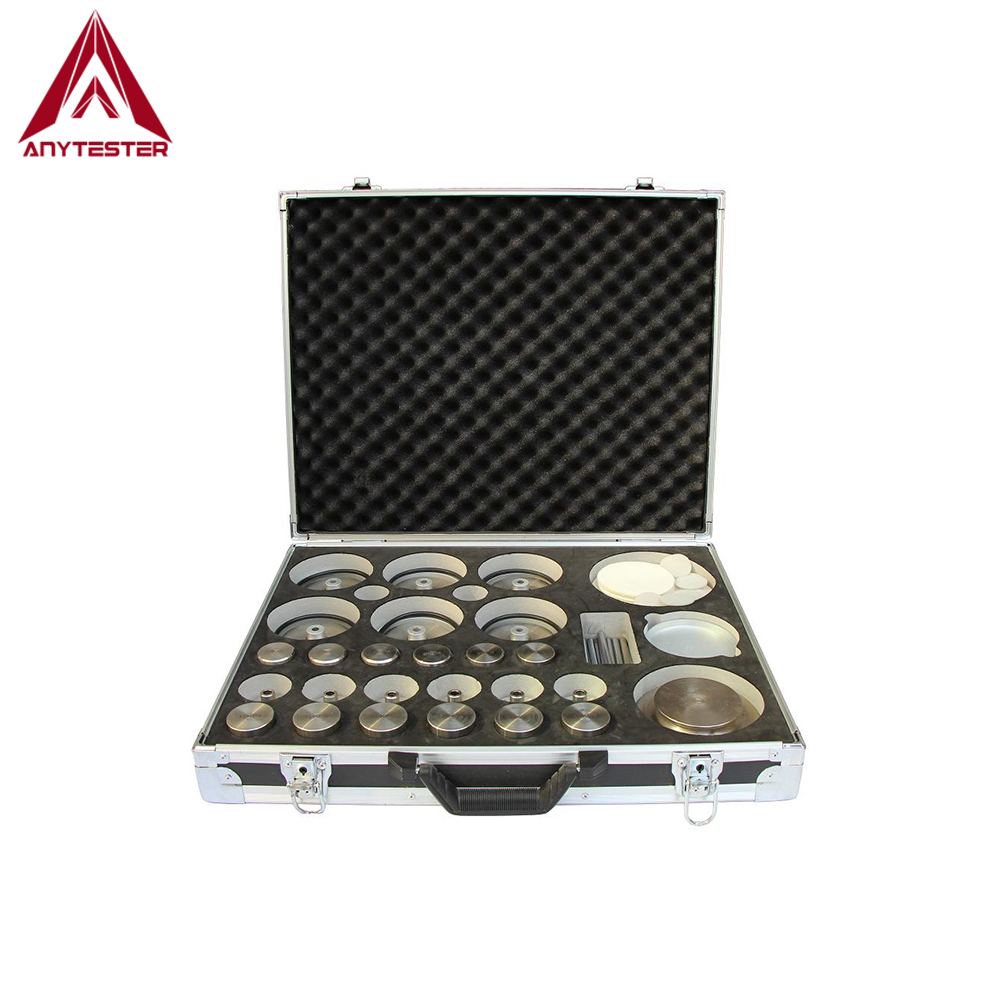

weights | Abrasion test | Specimen holder: 200g±1g Loading piece: 395g±2g, 594g±2g |
Pilling test | Specimen holder: 155g±1g Stainless steel disc: 260g±1g | |
Test speed | 50r±2r/min | |
loading pressure weight for specimen mounting | 2385g±10 g | |
Counting range | 0~999999times, settable | |
Power supply | AC220V±5%, 50Hz, 500w | |
Dimensions | 885×600×410mm | |
Weight | 110kg |
