HY065C Electronic Strength Tester

HY065C Electronic Strength Tester is used for tensile, tearing, peeling, bursting and other tests of a wide range of materials.
  • HY065C

  • Anytester

Availability:

Product Description

HY065C Electronic Strength Tester is used for tensile, tearing, peeling, bursting and other tests of a wide range of materials.


Standards

ASTM D3787, 4964,5034, 5035

ISO 13936, 13937, ISO 5081

DIN 53859, DIN 53858

BS3320, BS4303, BS2576

GB/T 3923.1, GB/T 3917

JIS L1096


Feature

★ It is not only used for fabric test (standard configuration), but also for lea yarn test with larger tensile space (optional configuration)

★ Adopt CRE measurement mechanism, micro-computer control, large LCD display, automatic data processing

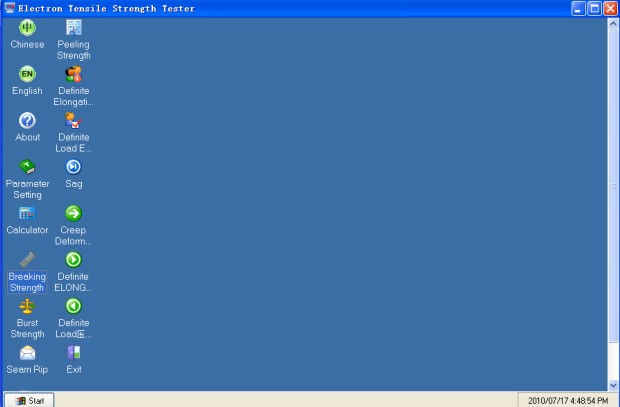

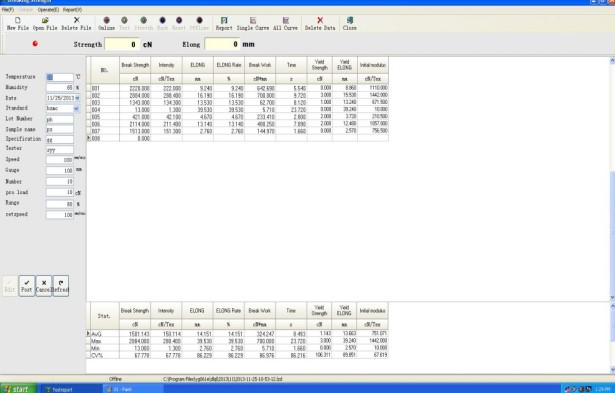

★ Can be connected with computer to achieve more analysis function, real-time display test curve, breaking force, elongation, yield stress, yield elongation, force at rupture, initial modulus, CV value, etc.

1

2

★ The test report can be printout

★ With two load ranges for one machine to satisfy different test requirement and ensure the accuracy

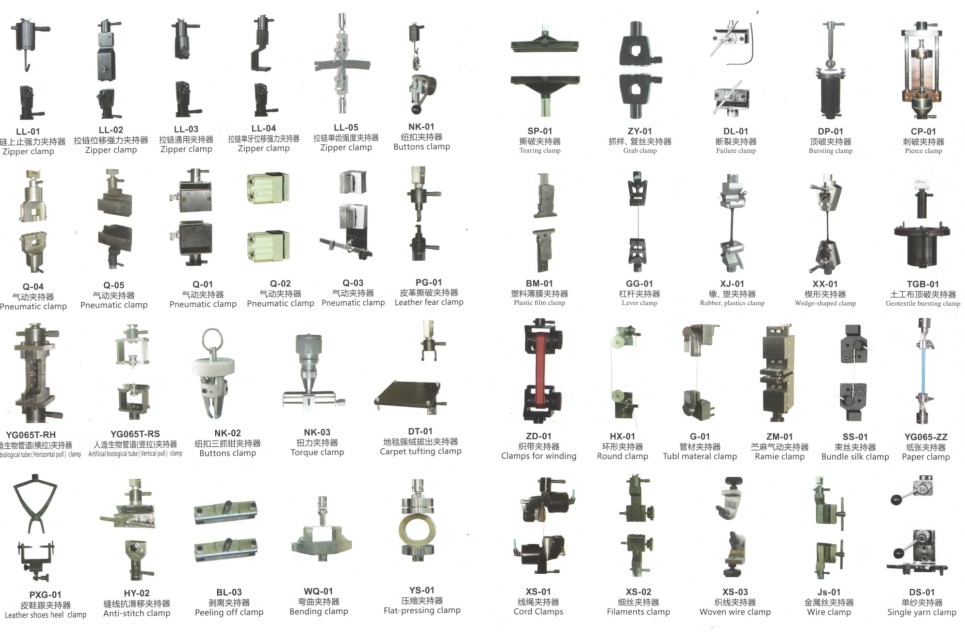

★ Various clamps can be optional to perform different test standards

3

Technical Specification

Model

HY065C

Load range

120N, 500N, 2500N, 5000N, selectable

Gauge length

25~500mm, adjustable

Tensile speed

2mm/min1200mm/min, settable

Return speed

2mm/min1000mm/min

Timing stretch

20s±3s, 30s±5s

Test times

99times max.

Elongation range

350% max. while set 200mm gauge length

Power supply

AC220V±10%, 50Hz

Dimensions

380mm×480mm×1450mm (L×W×H)

Weight

122kg
