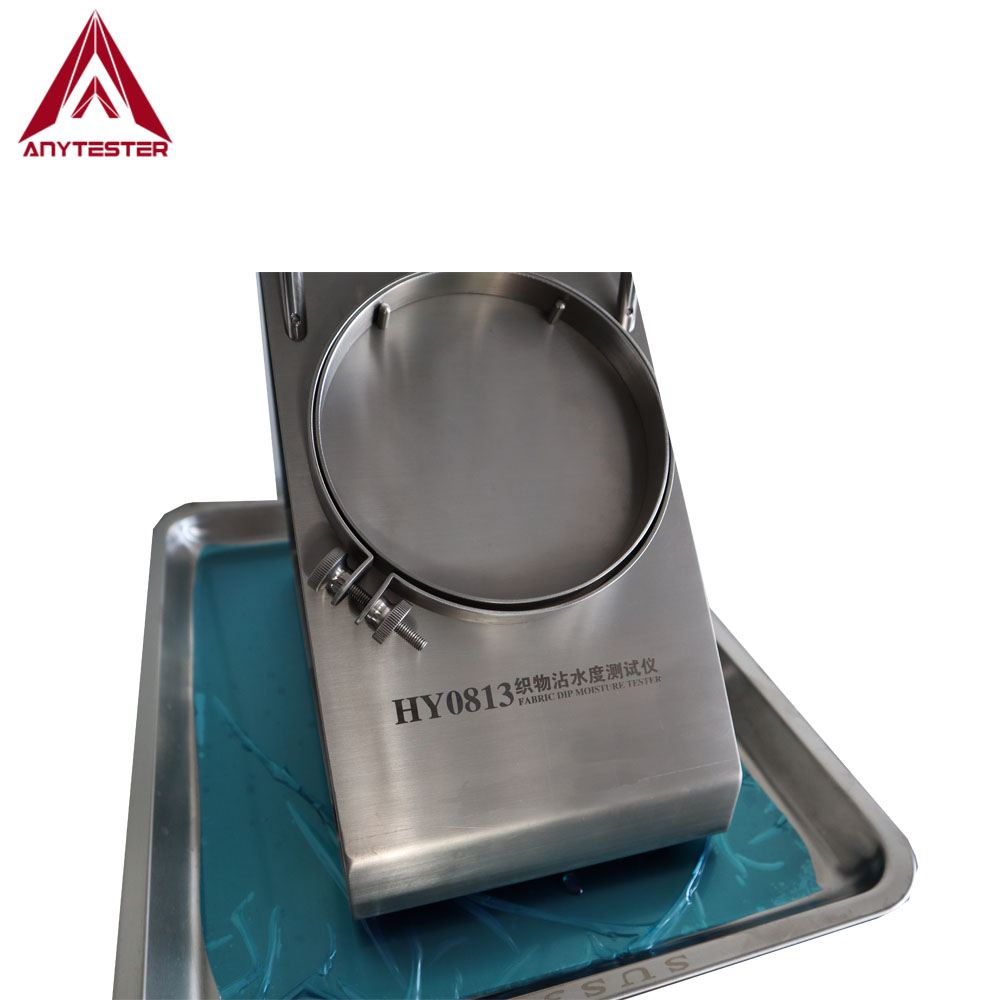

HY0813 Spray Rating Tester AATCC 22

HY0813 Spray Rating Tester is used to determine the surface wetting resistance of fabrics. Comprising a metal framework allowing distilled water to be sprayed through a nozzle onto a test specimen at 45°and 150mm below the nozzle.

  • HY0813

  • Anytester

Availability:

Product Description

HY0813 Spray Rating Tester is used to determine the surface wetting resistance of fabrics. Comprising a metal framework allowing distilled water to be sprayed through a nozzle onto a test specimen at 45°and 150mm below the nozzle.


Standards

AATCC 22

ISO 4920,

EN24920

JIS L1092

GB/T 4745



Features

★ Stainless steel framework, nice and durable

★ Simple structure, easy to operate


Technical Specification

Model

HY0813

Glass funnel

Φ150mm

Sample bracket angle

45°

Nozzle hole

Φ0.9mm×19pcs

Dimensions

280×330×515mm

Weight

6.4kg
