HY4410
Anytester
Product Description

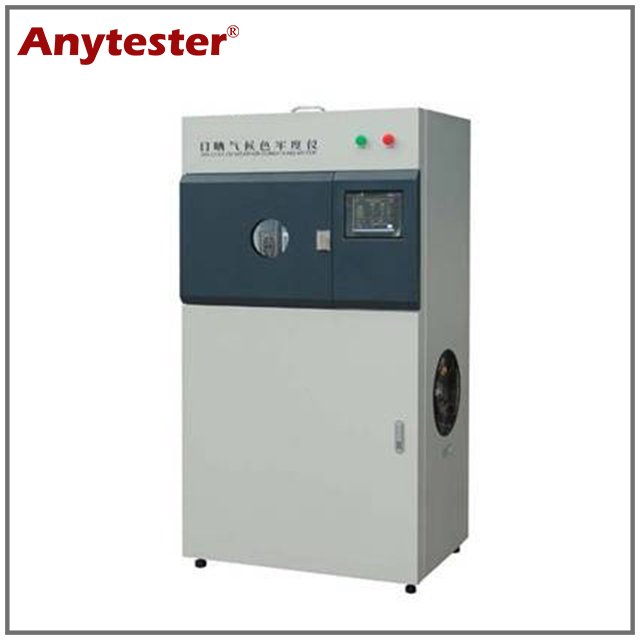

HY4410 Water-cooled Weather Conditions Meter is suit to determine the color fastness and aging to sunlight, weather resistance, compound color fastness to sunlight-sweat of colored textile, leather, leatherette, plastic, etc, by setting various parameters of irradiance, temperature, humidity, spray to simulate natural condition in lab. Be able to control irradiance real-time, automatically inspect and compensate irradiance, temperature, humidity.
Standards
ISO 105-B02/B04/B06, 11341, 4892-2, 03917 | AATCC TM16, TM169 | ASTM D2565, D4355, D4459, D6695, G155-1/155-4, G26 |
GB/T 12831, 15102, 15104, 16259, 16422.2, 1766, 18424, 1865, 4576, 8427, 9430 | JIS L 0843 | SAE J1885, J1960, J2212, J2412, J2527 |
GMW 3414 | JASOM346 | PV1303 |
M&S C9 | T1163 |
Note: This Water-cooled Weather Conditions Meter can conform to but not limit to all the standards above, for more standards conformance, please contact us.
Features
★ Presetting various specifications, or customized programs, meet diverse range of standards, including AATCC, ISO, BS, JIS etc;
★ Touch screen, and build-in PLC, real-time display the ongoing test’s graph, be able to presetting irradiance, temperature, humidity, and plot dynamic curve of them;
★ KincoTM touch screen, and build-in PLC (KincoTM), real-time display the ongoing test’s graph, be able to presetting irradiance, temperature, humidity, and plot dynamic curve of them.
★ 4500W water-cooled xenon arc lamp system, accurately simulate sunlight spectrum. Irradiance auto- compensates system, control irradiance, temperature, and humidity timely through a closed loop.
★ Irradiation control, light irradiance sensor monitor, digital setting, automatic compensating system, stepless irradiation regulation.
★ Accurate chamber temperature control, irradiation temperature, and heater raise the temperature, air conditioning refrigeration system.
★ Ultrasonic humidification system makes spray water even and low noise. Saturated steam humidifying, industrial refrigerating machine dehumidifying, and close loop control the humidity.
★ Large amount of testing specimen, be able to hold as 3 times of specimen quantity as air-cooled machine in a test.
Technical Specification
Model | HY4410 |
Lamp power Supply | AC380V±5% 50Hz 9000W(Max) |
Irradiation Source: | 4500W Water-cooled Long Xenon Arc Lamp |
Lamp Life | 1500 hours |
Rack Rotating Speed | 1-4r/min |
Rack Outside Radius | 224mm (Centered on the Xenon-arc Lamp) |
Specimen Holder Exposure Area: | 180×35mm（ISO） 190×50mm（AATCC） |
Specimen Number | 27 pcs（ISO）; 18pcs（AATCC）(Max) |
Exposure Area of Specimen | ≥2800 |
Illumination cycle adjustable | 0~9999h59min, ±1s |
Spray cycle adjustable | 0~9999h59min, ±1s |
Each specimen adjustable timing | 0~9999h59min, ±1s |
Chamber Temperature Range | 25℃～80℃±2℃ |
BPT | RT+10℃～120℃±2℃ |
BST | RT+10℃～130℃±1℃ |
Humidity Range | Light Cycle：10％RH～85％RH ±5% RH |
Dark Cycle：10％RH～98％RH ± 5% RH | |
Irradiance range | Wide Bandwidth: (35～150)±1W/m2@300-400nm |
Narrow Bandwidth: (0.800～3.000)±0.02W/m2 @420nm | |
Or specified by the custom with 340nm, 300~800nm | |
DI water Container | 5000mL |
Floor Space | 1500×3000mm (Min) |
Power Supply | AC380V±5% 50Hz 9000W(Max) |
Dimensions | 1200×870×2000mm（L×W×H） |
Instrument Weight | 400kg |
Standards
Item | Quantity | |
1. | Main machine | 1 pc |
2. | Di water system(FY100) | 1 set |
3. | Heat exchanger | 1 set |
4. | AATCC specimen holder(120×60mm) one set for 17 pcs, (Nonstandard specimen holder made-to-orderable ) | 1 set |
5. | ISO Specimen holder (100×45mm)one set for 27 pcs | 1 set |
6. | BPT | 1 pc |
7. | BST | 1 pc |
8. | Xenon lamp kit Including: Xenon lamp, CFQ glass tube, metallic connector | 1 set |
9. | Light filter | 1 set |
10. | ISO Gray scale | 1 set |
11. | ISO blue wool standard | 1 sets |
