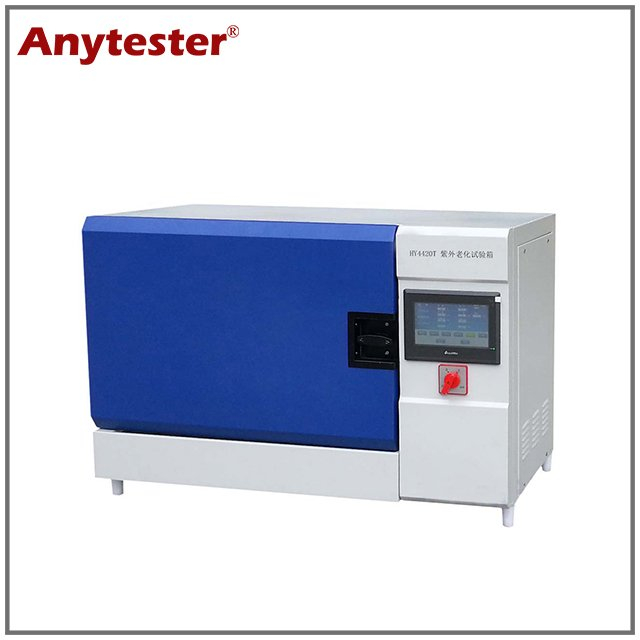

HY4420 Ultraviolet Accelerated Weatherometer

HY4420 Ultraviolet Accelerated Weatherometer is used to simulate ultraviolet radiation, rain spraying, condensation, temperature and humidity environment for accelerated ageing test of textile, rubber, plastic, paint, coating and other product. It adopts UV lamp as light source.
  • HY4420
  • Anytester
Availability:

Product Description

HY4420 Ultraviolet Accelerated Weatherometer is used to simulate ultraviolet radiation, rain spraying, condensation, temperature and humidity environment for accelerated ageing test of textile, rubber, plastic, paint, coating and other product. It adopts UV lamp as light source.


Standards

ISO 1431

GB/T 7762

BS EN 12224

Note: This Ultraviolet Accelerated Weatherometer can conform to but not limit to all the standards above, for more standards conformance, please contact us.


Features

Imported UV lamp, ballast, starter and solid-state relay

304 SUS stainless steel casing

Air duct in the chamber adopts single cycle system to improve the air flow, heating capacity and the uniformity of temperature in the chamber

Real-time display running time, running phases, remaining time; can display test data, including set temperature, current temperature, total running time, running time of current phase, remaining time of current phase, heating condition, calendar time, etc.; digital display temperature

Several alarm function: absolute value alarm, deviation alarm

Control system adopts zero passage triggering through solid-state relay, low noise, less pollution, easy to maintain, high control accuracy


Technical Specification

Model

HY4420

Dimensions of working   chamber

450×1170×500mm (D×W×H)

Temperature range

RT+10~+70

Temperature fluctuation

±1

Temperature uniformity

±3

Humidity range

≥95% R·H

Center distance of UV lamp

65~70mm

Distance between specimen   and surface of lamp

50±2 mm

Timing range

0~999h

Light source

UVA-340 or UVB-313

UV wavelength range

315~400nm, 280~315nm

Size of specimen rack

80×300mm

Power supply

AC220V 50Hz 3.5kw

Dimensions

500×1380×1480mm (D×W×H)

Weight

120kg


Standard Configuration

No.

Item

Quantity

1.

Main machine

1 set

2.

Lamp (UVA or UVB)

6 pcs

3.

Sample holder

25 pcs

4.

Wrench

1 pc

5.

Water Filter

1 pc

6.

Pack list

1 pc

7.

Quality certificate

1 pc

8.

User manual

1 pc
