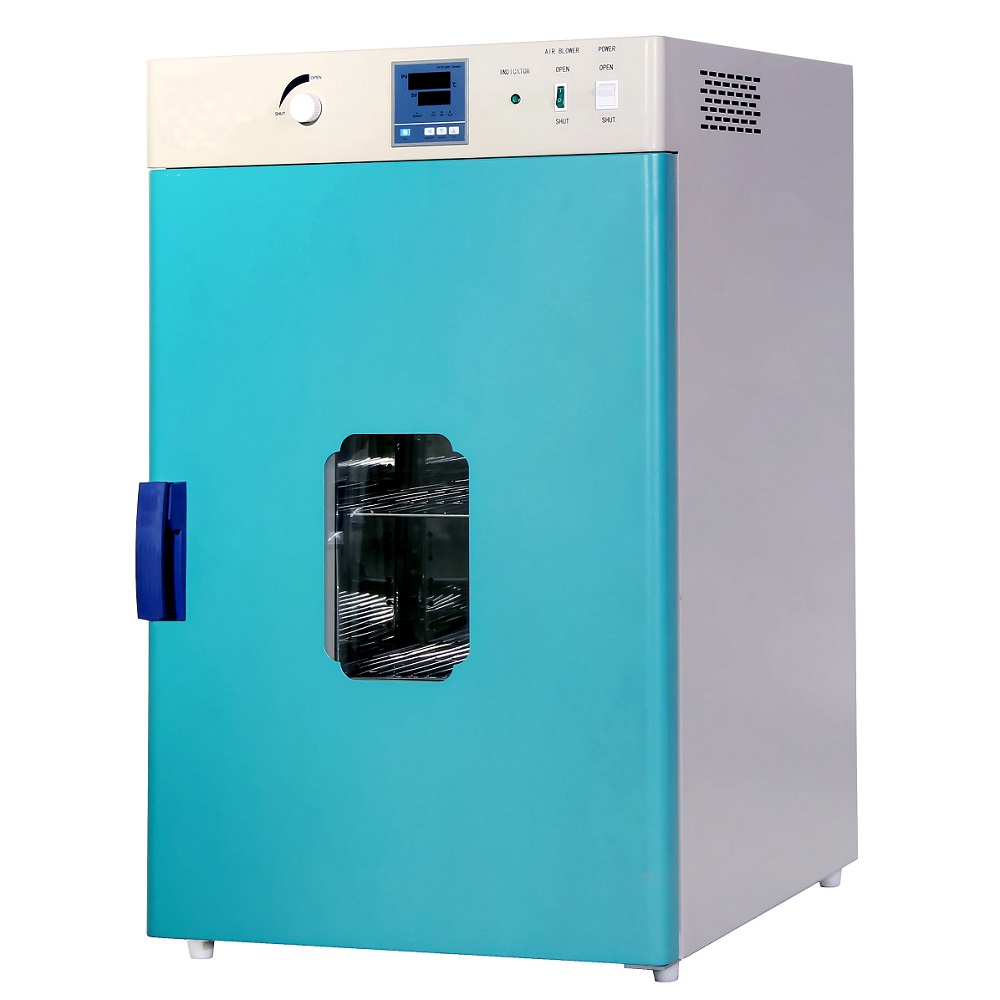

AT853 Series Thermal Aging Chamber is suitable for accelerated ageing and heat resistance tests by air-oven method. It is applicable for thermoplastic rubber, plastic electrical insulation and other material. It conforms to ISO 188, GB/T 3512, etc.
AT853
Anytester
Product Description
Features
★ LED display temperature, PID control
★ Can pre-set working time, automatically keep the constant temperature
★ Equipped with stainless inner wall
★ Adopted OMRON solid state relay to perform long life.
★ Working temperature can be chosen as 400℃ or 500℃, please inform before order
★ Gloss window make operator can watch the sample status easy.
★ Equipped with air inlet and air outlet for air flow in the chamber
★ Special design sample rack
Technical Specification
Model | AT853A | AT853B | AT853C | AT853D | ||
Working chamber size(mm) | 350×350×400 | 450×450×500 | 500×600×500 | 600×600×600 | ||
Working temperature range | RT+10℃ ~ 300℃ | |||||
Temperature resolution | 0.1℃ | |||||
Temperature fluctuation | ≤±0.5℃ | |||||
Temperature uniformity | ≤±2℃ | |||||
Timer | 1min～99h99min settable | |||||
Power supply | 220V 50Hz | 220V 50Hz | 220V 50Hz | |||
Standard Configuration
No. | Item | Quantity |
1. | Main machine | 1set |
2. | Sample rack | 2 pcs |
3. | Pack list | 1 pcs |
4. | Quality certificate | 1 pcs |
5. | User manual | 1 pcs |
